ContactInformation-v1.2(2020EN)

Uit Zorginformatiebouwstenen
Ga naar: navigatie, zoeken


Attention!! This is not the most recent version of this information model. You can find the most recent version here.

General information

Name: nl.zorg.part.ContactInformation NL.png
Version: 1.2
HCIM Status:Final
Release: 2020
Release status: Published
Release date: 01-09-2020


Back 16.png Back to HCIM list

Metadata

DCM::CoderList Kerngroep Registratie aan de Bron
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron
DCM::CreationDate 3-7-2017
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name PM
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.20.6
DCM::KeywordList
DCM::LifecycleStatus Final
DCM::ModelerList Kerngroep Registratie aan de Bron
DCM::Name nl.zorg.part.Contactgegevens
DCM::PublicationDate 01-09-2020
DCM::PublicationStatus Published
DCM::ReviewerList Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate 30-07-2020
DCM::Supersedes nl.zorg.part.Contactgegevens-v1.1.1
DCM::Version 1.2
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (04-09-2017)

ZIB-492 Waar past faxnummer voor zorgverlener / zorgaanbieder (patiënt) in de ZIB

Publicatieversie 1.1 (06-07-2019)

ZIB-760 Telefoonnummer, toelichting veld toevoegen

Publicatieversie 1.1.1 (31-01-2020)

ZIB-760 Telefoonnummer, toelichting veld toevoegen
ZIB-900 NumberType Codelist

Publicatieversie 1.2 (01-09-2020)

ZIB-958 telecomtype waarom verplicht (1..1) in subbouwsteen contactgegevens

Concept

Contact information includes a person's telephone numbers en e-mail addresses.
This is a partial information model.

Purpose

Contact information is used to contact a person.

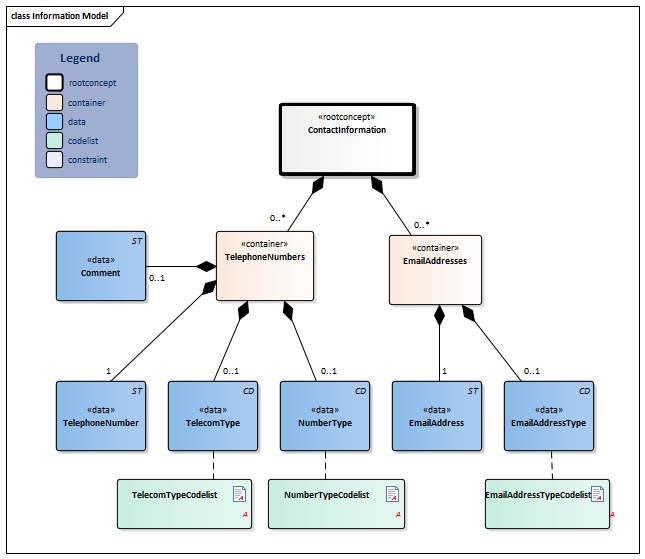

Information Model


#13631#12737#TelecomTypeCodelist#EmailAddressTypeCodelist#NumberTypeCodelist#12733#12739#12741#12742#12734#12736#12735ContactInformation-v1.2Model(2020EN).png


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:20.6.1 Arrowdown.pngContactInformation Root concept of the ContactInformation partial information model. This root concept contains all data elements of the ContactInformation partial information model.
Folder.png NL-CM:20.6.2 Arrowdown.pngTelephoneNumbers 0..* Container of the TelephoneNumbers concept. This container contains all data elements of the TelephoneNumbers concept.
ST.png NL-CM:20.6.4 Arrowright.pngTelephoneNumber 1 The person's telephone number.
CD.png NL-CM:20.6.5 Arrowright.pngTelecomType 0..1 The telecom or device type that the telephone number is connected to.
List2.png TelecomTypeCodelist
CD.png NL-CM:20.6.6 Arrowright.pngNumberType 0..1 NumberType indicates whether the number is a landline, temporary, work telephone number.
List2.png NumberTypeCodelist
ST.png NL-CM:20.6.9 Arrowright.pngComment 0..1 Explanation about the telephone number and how to use it. It can be indicated, for example, that it is a department number (for healthcare professionnels) or that availability by phone is only possible during a specified part of the day.
48767-8 Annotation comment [Interpretation] Narrative
Folder.png NL-CM:20.6.3 Arrowdown.pngEmailAddresses 0..* Container of the E-mailAddresses concept. This container contains all data elements of the E-mailAddresses concept.
ST.png NL-CM:20.6.7 Arrowright.pngEmailAddress 1 The person's e-mail address
CD.png NL-CM:20.6.8 Arrowright.pngEmailAddressType 0..1 E-mailAddressType indicates whether it is a private or business e-mail address.
List2.png EmailAddressTypeCodelist

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

Contactinformatie
Telefoonnummers
Telefoonnummer +31611234567
TelecomType Mobiel telefoonnummer
NummerSoort Zakelijk telefoonnummer
EmailAdressen
EmailAdres giesput@myweb.nl
EmailSoort Privé e-mailadres

Valuesets

EmailAddressTypeCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.20.6.3 Binding: Extensible
Conceptname Conceptcode Codesystem name Codesystem OID Description
Primary Home HP AddressUse 2.16.840.1.113883.5.1119 Privé e-mailadres
Work Place WP AddressUse 2.16.840.1.113883.5.1119 Zakelijk e-mailadres

NumberTypeCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.20.6.2 Binding: Extensible
Conceptname Conceptcode Codesystem name Codesystem OID Description
Primary Home HP AddressUse 2.16.840.1.113883.5.1119 Telefoonnummer thuis
Temporary Address TMP AddressUse 2.16.840.1.113883.5.1119 Tijdelijk telefoonnummer
Work Place WP AddressUse 2.16.840.1.113883.5.1119 Zakelijk telefoonnummer

TelecomTypeCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.20.6.1 Binding: Extensible
Conceptname Conceptcode Codesystem name Codesystem OID Description
Land Line LL TelecomDeviceTypes 2.16.840.1.113883.2.4.3.11.60.40.4.22.1 Vast telefoonnummer
Fax FAX TelecomDeviceTypes 2.16.840.1.113883.2.4.3.11.60.40.4.22.1 Fax
Mobile Phone MC AddressUse 2.16.840.1.113883.5.1119 Mobiel telefoonnummer
Pager PG AddressUse 2.16.840.1.113883.5.1119 Pieper

This information model in other releases

Information model references

This information model refers to

--

This information model is used in

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Release 2020
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms version: 20200731 [R] (July 2020 Release)
  • LOINC version 2.67

Conditions for use are located on the mainpage List2.png
This page is generated on 29/09/2020 21:20:40 with ZibExtraction v. 4.0.7577.31095
