General information

Name: nl.zorg.part.AnatomicalLocation NL.png
Version: 1.0.3
HCIM Status:Final
Release: 2024
Release status: Prepublished
Release date: 15-04-2024


Back 16.png Back to HCIM list

Metadata

DCM::CoderList *
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList *
DCM::CreationDate 15-7-2020
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name *
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.20.7
DCM::KeywordList
DCM::LifecycleStatus Final
DCM::ModelerList *
DCM::Name nl.zorg.part.AnatomischeLocatie
DCM::PublicationDate 15-04-2024
DCM::PublicationStatus Prepublished
DCM::ReviewerList
DCM::RevisionDate 08-09-2023
DCM::Supersedes nl.zorg.part.AnatomischeLocatie-v1.0.2
DCM::Version 1.0.3
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (01-09-2020)

Publicatieversie 1.0.1 (01-12-2021)

ZIB-1430 Vertaalfoutje in beschrijving zib AnatomicalLocation

Publicatieversie 1.0.2 (10-06-2022)

ZIB-1626 Tekstuele wijzigingen zib AnatomischeLocatie (2020)

Publicatieversie 1.0.3 (15-10-2023)

ZIB-1974 Suggested typo and textual improvements

Concept

An anatomical location specifies the location (e.g. foot) and laterality (e.g. left) of a body part.

Purpose

An anatomic location is used to specify the location of a finding, procedure or measurement.

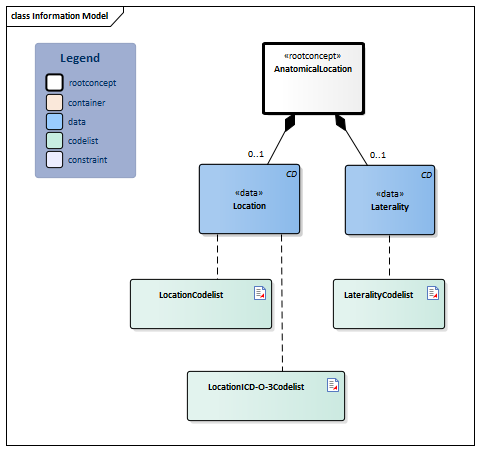

Information Model


#LocationICD-O-3Codelist#LocationCodelist#1768#LateralityCodelist#1770#1767AnatomicalLocation-v1.0.3Model(2024EN).png


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:20.7.1 Arrowdown.pngAnatomicalLocation Root concept of the AnatomicalLocation partial information model. This root concept contains all data elements of the AnatomicalLocation partial information model.
123037004 Body structure
CD.png NL-CM:20.7.4 Arrowright.pngLocation 0..1 Location on/in the body.
363698007 Finding site
List2.png LocationCodelist
List2.png LocationICD-O-3Codelist
CD.png NL-CM:20.7.3 Arrowright.pngLaterality 0..1 Laterality adds information about the body side to the anatomic location, e.g. left.
272741003 Laterality
List2.png LateralityCodelist

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

AnatomischeLocatie Lateraliteit
Onderarm Links
Grote fontanel van schedel
Oog Links en rechts

Valuesets

LateralityCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.20.7.2 Binding: Required
Conceptname Conceptcode Codesystem name Codesystem OID Description
Left 7771000 SNOMED CT 2.16.840.1.113883.6.96 Links
Right 24028007 SNOMED CT 2.16.840.1.113883.6.96 Rechts
Right and left 51440002 SNOMED CT 2.16.840.1.113883.6.96 Rechts en links

LocationCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.20.7.1 Binding: Required
Conceptname Codesystem name Codesystem OID
SNOMED CT: <442083009|Anatomical or acquired body structure| SNOMED CT 2.16.840.1.113883.6.96

LocationICD-O-3Codelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.20.7.3 Binding: Required
Conceptname Codesystem name Codesystem OID
International Classification of Diseases for Oncology, version 3 (Topography codes) ICD-O-3 2.16.840.1.113883.6.43.1

This information model in other releases

Information model references

This information model refers to

--

This information model is used in

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.<BR> Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Prerelease 2024-1
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms versie: 20240331 [R] (maart 2024-editie)
  • LOINC version 2.77

Conditions for use are located on the mainpage List2.png
