General information
Name: nl.zorg.Vaccination
Version: 6.0.1
HCIM Status:Final
Release: 2024
Release status: Prepublished
Release date: 15-04-2024
Metadata
| DCM::CoderList |
Kerngroep Registratie aan de Bron
|
| DCM::ContactInformation.Address |
*
|
| DCM::ContactInformation.Name |
*
|
| DCM::ContactInformation.Telecom |
*
|
| DCM::ContentAuthorList |
Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron
|
| DCM::CreationDate |
5-10-2012
|
| DCM::DeprecatedDate |
|
| DCM::DescriptionLanguage |
nl
|
| DCM::EndorsingAuthority.Address |
|
| DCM::EndorsingAuthority.Name |
PM
|
| DCM::EndorsingAuthority.Telecom |
|
| DCM::Id |
2.16.840.1.113883.2.4.3.11.60.40.3.11.1
|
| DCM::KeywordList |
vaccinatie, inenting
|
| DCM::LifecycleStatus |
Final
|
| DCM::ModelerList |
Kerngroep Registratie aan de Bron
|
| DCM::Name |
nl.zorg.Vaccinatie
|
| DCM::PublicationDate |
15-04-2024
|
| DCM::PublicationStatus |
Prepublished
|
| DCM::ReviewerList |
Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron
|
| DCM::RevisionDate |
09-04-2024
|
| DCM::Supersedes |
nl.zorg.Vaccinatie-v6.0
|
| DCM::Version |
6.0.1
|
| HCIM::PublicationLanguage |
EN
|
Revision History
Only available in Dutch
Publicatieversie 1.0 (15-02-2013)
Publicatieversie 1.1 (01-07-2013)
Publicatieversie 1.2 (01-04-2015)
| ZIB-124
|
Definitie van het concept Toelichting van de bouwsteen OverdrachtVaccinatie aanpassen.
|
| ZIB-277
|
In de klinische bouwsteen OverdrachtVaccinatie DCM::ValueSet Voorschrijfcode (PRK) van concept ProductCode aangepast naar tagged value DCM::CodeSystem G-Standaard Voorschrijfproducten (PRK).
|
| ZIB-278
|
In de klinische bouwsteen OverdrachtVaccinatie DCM::ValueSet KNMP artikelnummer = ATKODE van concept ProductCode aangepast naar tagged value DCM::CodeSystem G-Standaard Artikelen (Bestand 004). KNMP artikelnummer = ATKODE in tagged value notes geplaatst.
|
| ZIB-279
|
In de klinische bouwsteen OverdrachtVaccinatie DCM::ValueSet Handelsproductcode (HPK) van concept ProductCode aangepast naar tagged value DCM::CodeSystem G-Standaard HPK (Handels Product Kode).
|
| ZIB-280
|
In de klinische bouwsteen OverdrachtVaccinatie DCM::ValueSet GTIN International Article Number van concept ProductCode aangepast naar tagged value DCM::CodeSystem GTIN (Global Trade Item Number). OID 2.16.528.1.1002 aangepast in 1.3.160.
|
| ZIB-281
|
In de klinische bouwsteen OverdrachtVaccinatie DCM::ValueSet ATC (Anatomic Therapeutic Classification) van concept ProductCode aangepast naar tagged value DCM::CodeSystem ATC (Anatomic Therapeutic Classification).
|
| ZIB-282
|
In de klinische bouwsteen OverdrachtVaccinatie DCM::ValueSet Generieke productcode (GPK) van concept ProductCode aangepast naar tagged value DCM::CodeSystem G-Standaard GPK (Generieke Product Kode).
|
| ZIB-308
|
Prefix Overdracht weggehaald bij de generieke bouwstenen
|
| ZIB-353
|
Tagged values DCM::CodeSystem aanpassen naar DCM::ValueSet incl. gekoppelde codelijst.
|
Incl. algemene wijzigingsverzoeken:
| ZIB-94
|
Aanpassen tekst van Disclaimer, Terms of Use & Copyrights
|
| ZIB-154
|
Consequenties opsplitsing Medicatie bouwstenen voor overige bouwstenen.
|
| ZIB-200
|
Naamgeving SNOMED CT in tagged values klinische bouwstenen gelijk getrokken.
|
| ZIB-201
|
Naamgeving OID: in tagged value notes van klinische bouwstenen gelijk getrokken.
|
| ZIB-309
|
EOI aangepast
|
| ZIB-324
|
Codelijsten Name en Description beginnen met een Hoofdletter
|
| ZIB-326
|
Tekstuele aanpassingen conform de kwaliteitsreview kerngroep 2015
|
Publicatieversie 3.0 (01-05-2016)
| ZIB-453
|
Wijziging naamgeving ZIB's en logo's door andere opzet van beheer
|
Publicatieversie 3.1 (04-09-2017)
| ZIB-564
|
Aanpassing/harmonisatie Engelse conceptnamen
|
Publicatieversie 3.2 (01-10-2018)
| ZIB-664
|
Bij Vaccinatie is alleen VaccinatieDatum verplicht?
|
Publicatieversie 4.0 (06-07-2019)
| ZIB-821
|
OverdrachtGeplandeZorgactiviteit laten vervallen en onderliggende zibs aanpassen
|
Publicatieversie 4.1 (01-12-2021)
| ZIB-1542
|
Aanpassen voorbeeld zib vaccinatie
|
Publicatieversie 5.0 (10-06-2022)
| ZIB-1447
|
Referentie naar Zorgaanbieder ontbreekt in zib Vaccinatie
|
| ZIB-1654
|
Aanpassingen zib vaccinatie
|
| ZIB-1669
|
Concept text vaccinatie aanpassen
|
Publicatieversie 6.0 (15-10-2023)
| ZIB-1829
|
Conceptuele kardinaliteit 'VaccinatieDatumTijd' wijzigen naar '1'
|
| ZIB-1830
|
Conceptuele kardinaliteit 'Toediener::Zorgverlener' wijzigen naar '1'
|
| ZIB-1831
|
Conceptuele kardinaliteit 'VaccinatieAanleiding' wijzigen naar '0..*'
|
| ZIB-1833
|
Conceptnaam wijzigen 'VaccinatieLocatie:: AnatomischeLocatie'
|
| ZIB-1846
|
Concept omschrijving
|
| ZIB-1974
|
Suggested typo and textual improvements
|
Publicatieversie 6.0.1 (15-04-2024)
| ZIB-2132
|
2023-1 Verwijzingen naar FarmaceutischProduct gebruiken verkeerde NL-CM id
|
Concept
Immunisation can be defined as "The generation of natural immunity against pathogens by vaccination (active immunisation) or by administration of immunoglobulins (passive immunisation)".
Only vaccinations (administered and scheduled) are included in this building block. The administration of immunoglobulins is part of the medication overview. Vaccinations have lifelong relevance.
Most vaccinations are carried out in the Netherlands as part of the National Vaccination Programme (RVP).
Vaccinations are also relevant in adult patients such as transplant patients, dialysis patients and patients with status after spleen aspiration. In addition, there are specific indications for vaccination of high-risk groups, such as travellers, professionals who come into contact with blood or patients with injuries, impaired immunity or increased risk.
Purpose
Documenting vaccinations that have already taken place in a patient or are planned is important for things such as the diagnostics of infectious diseases and the indication and planning of (re)vaccinations.

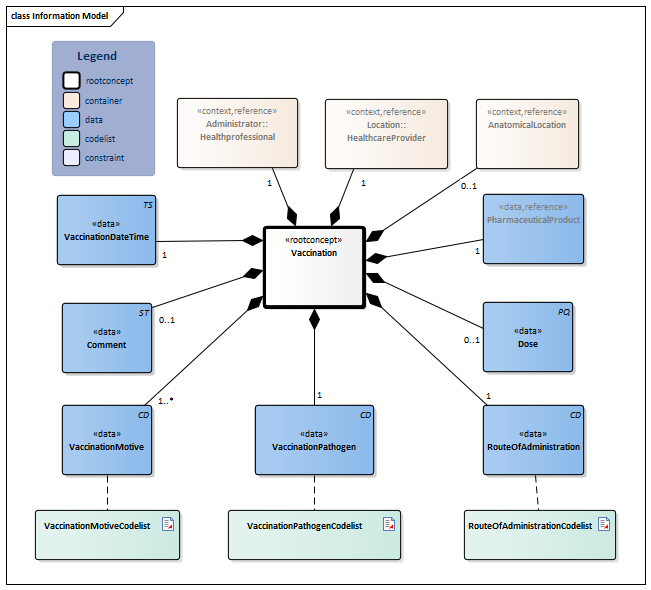

Information Model
| Type |
Id |
Concept |
Card. |
Definition |
DefinitionCode |
Reference
|
|
NL-CM:11.1.1
|
 Vaccination
|
|
Root concept of the Vaccination information model. This root concept contains all data elements of the Vaccination information model.
|
|
|
|
NL-CM:11.1.3
|
|
 VaccinationDateTime
|
1
|
Date (and if possible time) that the vaccine is administered. In the case of a historical vaccination, a vague date (month, year) is allowed.
|
|
|
|
NL-CM:11.1.8
|
|
Location::HealthcareProvider
|
1
|
The healthcare provider where the vaccination is or will be carried out.
|
|
|
|
|
NL-CM:11.1.6
|
|
Administrator::Healthprofessional
|
1
|
The healthcare provider by whom the vaccination was done or will be done.
|
|
|
|
|
NL-CM:11.1.9
|
|
PharmaceuticalProduct
|
1
|
The pharmaceutical product of the administered vaccination
|
|
|
|
|
NL-CM:11.1.13
|
|
AnatomicalLocation
|
0..1
|
The location on the body where the vaccination was administered.
|
|
|
|
NL-CM:11.1.4
|
|
Dose
|
0..1
|
The amount of product administered. In most cases, the entire product is administered; in some cases, a described part of the product is administered.
|
|
|
|
NL-CM:11.1.7
|
|
Comment
|
0..1
|
Comment on the vaccination
|
| 48767-8 Annotation comment [Interpretation] Narrative
|
|
|
|
NL-CM:11.1.12
|
|
RouteOfAdministration
|
1
|
The route by which the vaccine is came into the body.
|
|
|
|
|
NL-CM:11.1.10
|
|
VaccinationMotive
|
1..*
|
Displays the trigger based on what the vaccine was administered.
|
|
|
|
|
NL-CM:11.1.11
|
|
VaccinationPathogen
|
1
|
The disease or pathogeen against what the vaccination is primarily given.
|
|
|
Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page
Example Instances
Only available in Dutch
| Vaccinatie DatumTijd
|
Locatie
|
FarmaceutischProduct
|
Toedieningsweg
|
VaccinatieAanleiding
|
|
|
Zorgaanbieder
|
ProductCode
|
|
|
| 05-03-1999
|
GGZ NHN
|
DKTP/HIB vaccin
|
Intramusculair
|
Rijksvaccinatie programma.
|
References
1. G-standaard [Online] Beschikbaar op: http://www.z-index.nl/ [Geraadpleegd: 23 februari 2015].
2. Rijksvaccinatieprogramma [Online] Beschikbaar op: http://www.rivm.nl/Onderwerpen/Onderwerpen/R/Rijksvaccinatieprogramma [Geraadpleegd: 23 februari 2015].
Valuesets
RouteOfAdministrationCodelist
| Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.11.1.3
|
Binding: Extensible
|
| Conceptname
|
Codesystem name |
Codesystem OID
|
| All values
|
G-Standaard Toedieningswegen
|
2.16.840.1.113883.2.4.4.9
|
VaccinationMotiveCodelist
| Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.11.1.1
|
Binding: Extensible
|
| Conceptname
|
Conceptcode
|
Codesystem name |
Codesystem OID
|
Description
|
| Vaccination needed as part of immunization programme
|
159741000146107
|
SNOMED CT
|
2.16.840.1.113883.6.96
|
Vaccinatieprogramma
|
| Vaccination needed as part of national immunization programme
|
159731000146104
|
SNOMED CT
|
2.16.840.1.113883.6.96
|
Rijksvaccinatieprogramma
|
| Occupational vaccination needed
|
159721000146101
|
SNOMED CT
|
2.16.840.1.113883.6.96
|
Immunisatie nodig voor werk
|
| Elective immunization for international travel
|
14747002
|
SNOMED CT
|
2.16.840.1.113883.6.96
|
Reizigersvaccinatie
|
VaccinationPathogenCodelist
| Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.11.1.2
|
Binding: Extensible
|
| Conceptname
|
Conceptcode
|
Codesystem name |
Codesystem OID
|
Description
|
| Influenza
|
6142004
|
SNOMED CT
|
2.16.840.1.113883.6.96
|
Influenza
|
| Pneumococcal infectious disease
|
16814004
|
SNOMED CT
|
2.16.840.1.113883.6.96
|
Infectieziekte door Streptococcus pneumoniae
|
| COVID-19
|
840539006
|
SNOMED CT
|
2.16.840.1.113883.6.96
|
COVID-19
|
| Inflammatory disease of liver
|
128241005
|
SNOMED CT
|
2.16.840.1.113883.6.96
|
Hepatitis
|
| Tetanus
|
76902006
|
SNOMED CT
|
2.16.840.1.113883.6.96
|
Tetanus
|
This information model in other releases
Information model references
This information model refers to
This information model is used in
- --
Technical specifications in HL7v3 CDA and HL7 FHIR
To exchange information based on health and care information models, additional, more technical specifications are required.<BR>
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:
- HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment
- HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR
Downloads
This information model is also available as pdf file
or as spreadsheet
About this information
The information in this wikipage is based on Prerelease 2024-1
SNOMED CT and LOINC codes are based on:
- SNOMED Clinical Terms versie: 20240331 [R] (maart 2024-editie)
- LOINC version 2.77
Conditions for use are located on the mainpage
This page is generated on 25/04/2024 12:43:13 with ZibExtraction v. 9.3.8880.19756
