AnatomicalLocation-v1.0.2(2022EN)
Inhoud
General information
Name: nl.zorg.part.AnatomicalLocation
Version: 1.0.2
HCIM Status:Final
Release: 2022
Release status: Prepublished
Release date: 10-06-2022
Metadata
| DCM::CoderList | * |
| DCM::ContactInformation.Address | * |
| DCM::ContactInformation.Name | * |
| DCM::ContactInformation.Telecom | * |
| DCM::ContentAuthorList | * |
| DCM::CreationDate | 15-7-2020 |
| DCM::DeprecatedDate | |
| DCM::DescriptionLanguage | nl |
| DCM::EndorsingAuthority.Address | |
| DCM::EndorsingAuthority.Name | * |
| DCM::EndorsingAuthority.Telecom | |
| DCM::Id | 2.16.840.1.113883.2.4.3.11.60.40.3.20.7 |
| DCM::KeywordList | |
| DCM::LifecycleStatus | Final |
| DCM::ModelerList | * |
| DCM::Name | nl.zorg.part.AnatomischeLocatie |
| DCM::PublicationDate | 10-06-2022 |
| DCM::PublicationStatus | Prepublished |
| DCM::ReviewerList | |
| DCM::RevisionDate | 27-05-2022 |
| DCM::Supersedes | nl.zorg.part.AnatomischeLocatie-v1.0.1 |
| DCM::Version | 1.0.2 |
| HCIM::PublicationLanguage | EN |
Revision History
Only available in Dutch
Publicatieversie 1.0 (01-09-2020)
Publicatieversie 1.0.1 (01-12-2021)
| ZIB-1430 | Vertaalfoutje in beschrijving zib AnatomicalLocation |
Publicatieversie 1.0.2 (10-06-2022)
| ZIB-1626 | Tekstuele wijzigingen zib AnatomischeLocatie (2020) |
Concept
An anatomical location specifies the location (e.g. foot) and laterality (e.g. left) of a body part.
Purpose
An anatomic location is used to specify the location of a finding, procedure or measurement.

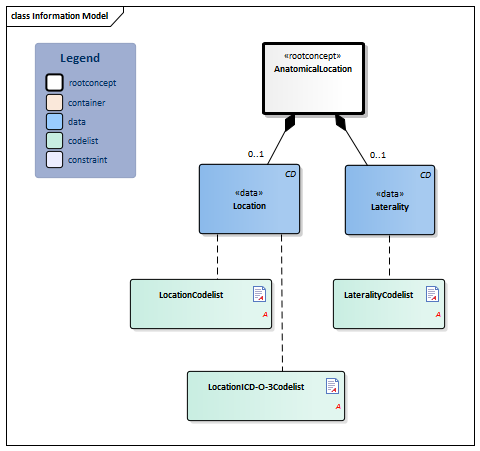

Information Model
| Type | Id | Concept | Card. | Definition | DefinitionCode | Reference | ||||||||||
|
NL-CM:20.7.1 |  AnatomicalLocation
|
Root concept of the AnatomicalLocation partial information model. This root concept contains all data elements of the AnatomicalLocation partial information model. |
|
||||||||||||
|
NL-CM:20.7.4 |  Location
|
0..1 | Localisation on/in the body. |
|
| ||||||||||
|
|
NL-CM:20.7.3 | Laterality
|
0..1 | Laterality adds information about body site to the anatomic location, e.g. left. |
|
| ||||||||||
Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page
Example Instances
Only available in Dutch
| AnatomischeLocatie | Lateraliteit |
| Onderarm | Links |
| Grote fontanel van schedel | |
| Oog | Links en rechts |
Valuesets
LateralityCodelist
| Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.20.7.2 | Binding: Required |
| Conceptname | Conceptcode | Codesystem name | Codesystem OID | Description |
| Left | 7771000 | SNOMED CT | 2.16.840.1.113883.6.96 | Links |
| Right | 24028007 | SNOMED CT | 2.16.840.1.113883.6.96 | Rechts |
| Right and left | 51440002 | SNOMED CT | 2.16.840.1.113883.6.96 | Rechts en links |
LocationCodelist
| Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.20.7.1 | Binding: Required |
| Conceptname | Codesystem name | Codesystem OID |
| SNOMED CT: <442083009|Anatomical or acquired body structure| | SNOMED CT | 2.16.840.1.113883.6.96 |
LocationICD-O-3Codelist
| Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.20.7.3 | Binding: Required |
| Conceptname | Codesystem name | Codesystem OID |
| International Classification of Diseases for Oncology, version 3 (Topography codes) | ICD-O-3 | 2.16.840.1.113883.6.43.1 |
This information model in other releases
Information model references
This information model refers to
- --
This information model is used in
- Burnwound-v3.5
- DAS-v1.1
- LaboratoryTestResult-v5.1
- MedicalDevice-v3.5
- O2Saturation-v4.0
- PainCharacteristics-v1.0
- PressureUlcer-v3.5
- Problem-v4.6
- Procedure-v5.4
- Refraction-v1.2
- SkinDisorder-v3.4
- Stoma-v3.4
- TNMTumorClassification-v2.0.1
- Vaccination-v5.0
- VisualAcuity-v2.1
- Wound-v3.4
Technical specifications in HL7v3 CDA and HL7 FHIR
To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:
- HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment
- HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR
Downloads
This information model is also available as pdf file
or as spreadsheet
About this information
The information in this wikipage is based on Pre-release 2022-1
SNOMED CT and LOINC codes are based on:
- SNOMED Clinical Terms version: 20220131 [R] (January 2022 Release)
- LOINC version 2.67
Conditions for use are located on the mainpage
This page is generated on 10/06/2022 18:55:51 with ZibExtraction v. 8.0.8196.20371
