Attention!! This is not the most recent version of this information model. You can find the most recent version ''here''.

General information

Name: nl.zorg.OutcomeOfCare NL.png
Version: 3.3
HCIM Status:Final
Release: 2022
Release status: Prepublished
Release date: 10-06-2022

Back 16.png Back to HCIM list


DCM::CoderList Werkgroep RadB Verpleegkundige Gegevens
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList Werkgroep RadB Verpleegkundige Gegevens
DCM::CreationDate 8-9-2014
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Name PM
DCM::Id 2.16.840.1.113883.
DCM::KeywordList Uitkomst van zorg, zorgresultaat
DCM::LifecycleStatus Final
DCM::ModelerList Werkgroep RadB Verpleegkundige Gegevens
DCM::Name nl.zorg.UitkomstVanZorg
DCM::PublicationDate 10-06-2022
DCM::PublicationStatus Prepublished
DCM::ReviewerList Projectgroep RadB Verpleegkundige Gegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate 28-09-2021
DCM::Supersedes nl.zorg.UitkomstVanZorg-v3.2
DCM::Version 3.3
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (01-07-2015)

Publicatieversie 3.0 (01-05-2016)

ZIB-453 Wijziging naamgeving ZIB's en logo's door andere opzet van beheer

Publicatieversie 3.1 (04-09-2017)

ZIB-539 Verwijderen referentie naar NOC codesysteem uit conceptbeschrijving
ZIB-549 De Engelse naam van de bouwsteen en het rootconcept zijn niet correct

Publicatieversie 3.2 (01-09-2020)

ZIB-1154 Wijzigen kardinaliteit naar VerpleegkundigeInterventie
ZIB-1158 uitkomst van zorg

Publicatieversie 3.3 (01-12-2021)

ZIB-1398 Voorbeeld van UitkomstVanZorg bevat nog Algemene Meting


The OutcomeOfCare concept describes the determined status of the patient in terms of a certain problem. Comparing the healthcare result with the treatment objective provides insight into the effectively of the nursing interventions/activities carried out for this problem. It is a part of the nursing process, together with nursing diagnoses/problems, the treatment objective and nursing interventions.


Healthcare results are important parameters for evaluating the patient’s health and monitoring the effectivity of the medical treatment and nursing interventions.

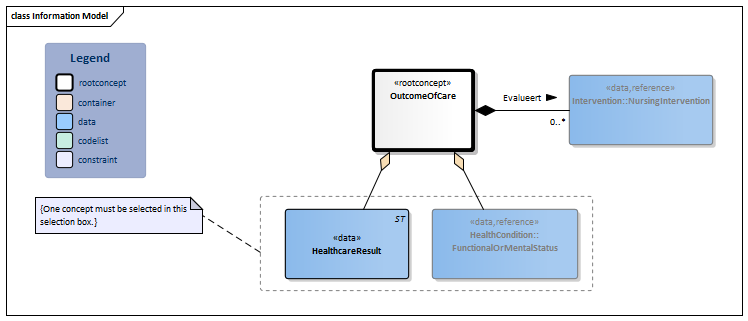

Information Model


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:13.4.1 Arrowdown.pngOutcomeOfCare Root concept of the OutcomeOfCare information model. This root concept contains all data elements of the OutcomeOfCare information model.
423100009 Results section
ST.png NL-CM:13.4.5 Arrowright.pngHealthcareResult (0..1) The textual account of the healthcare result. If HealthcareResult cannot be entered as a measurement value or functional/mental status, it can be described as free text in the healthcare result.
Verwijzing.png NL-CM:13.4.3 Arrowright.pngHealthCondition::FunctionalOrMentalStatus (0..1) A description of the patient’s health condition in the form of a functional and/or mental status.
Block.png FunctionalOrMentalStatus
Verwijzing.png NL-CM:13.4.4 Arrowright.pngIntervention::NursingIntervention 0..* A description of the nursing intervention of which the effectivity is evaluated with the healthcare result.
Block.png NursingIntervention

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

Zorgresultaat Vochtinname 1,5 liter/dag.
Interventie Bevorderen van vochtinname.

This information model in other releases

Information model references

This information model refers to

This information model is used in


Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png


This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Pre-release 2022-1
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms version: 20220131 [R] (January 2022 Release)
  • LOINC version 2.67

Conditions for use are located on the mainpage List2.png
This page is generated on 10/06/2022 19:06:06 with ZibExtraction v. 8.0.8196.20371
