OutcomeOfCare-v3.1(2018EN)

Uit Zorginformatiebouwstenen
Ga naar: navigatie, zoeken


Attention!! This is not the most recent version of this information model. You can find the most recent version here.

General information

Name: nl.zorg.OutcomeOfCare NL.png
Version: 3.1
HCIM Status:Final
Release: 2018
Release status: Prepublished
Release date: 26-02-2019


Back 16.png Back to HCIM list

Metadata

DCM::CoderList Werkgroep RadB Verpleegkundige Gegevens
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList Werkgroep RadB Verpleegkundige Gegevens
DCM::CreationDate 8-9-2014
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name PM
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.13.4
DCM::KeywordList Uitkomst van zorg, zorgresultaat
DCM::LifecycleStatus Final
DCM::ModelerList Werkgroep RadB Verpleegkundige Gegevens
DCM::Name nl.zorg.UitkomstVanZorg
DCM::PublicationDate 26-02-2019
DCM::PublicationStatus Prepublished
DCM::ReviewerList Projectgroep RadB Verpleegkundige Gegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate 31-12-2017
DCM::Superseeds nl.zorg.UitkomstVanZorg-v3.0
DCM::Version 3.1
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (01-07-2015)

Publicatieversie 3.0 (01-05-2016)

Publicatieversie 3.1 (04-09-2017)

ZIB-539 Verwijderen referentie naar NOC codesysteem uit conceptbeschrijving
ZIB-549 De Engelse naam van de bouwsteen en het rootconcept zijn niet correct

Concept

The OutcomeOfCare concept describes the determined status of the patient in terms of a certain problem. Comparing the healthcare result with the treatment objective provides insight into the effectively of the nursing interventions/activities carried out for this problem. It is a part of the nursing process, together with nursing diagnoses/problems, the treatment objective and nursing interventions.

Purpose

Healthcare results are important parameters for evaluating the patient’s health and monitoring the effectivity of the medical treatment and nursing interventions.

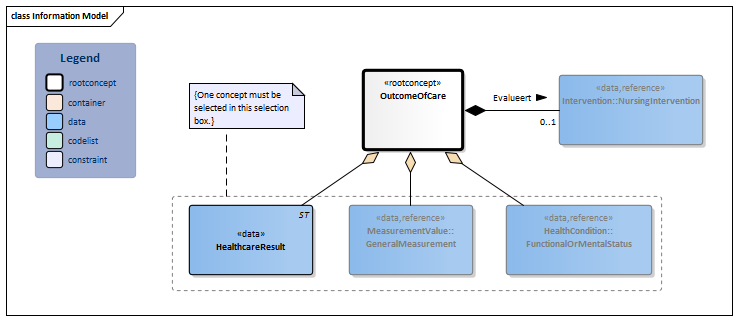

Information Model


#10313GeneralMeasurement-v3.0(2018EN)FunctionalOrMentalStatus-v3.1.1(2018EN)NursingIntervention-v3.2(2018EN)#10318OutcomeOfCare-v3.1Model(2018EN).png


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:13.4.1 Arrowdown.pngOutcomeOfCare Root concept of the OutcomeOfCare information model. This root concept contains all data elements of the OutcomeOfCare information model.
ST.png NL-CM:13.4.5 Arrowright.pngHealthcareResult (0..1) The textual account of the healthcare result. If HealthcareResult cannot be entered as a measurement value or functional/mental status, it can be described as free text in the healthcare result.
27574-3 Skilled nursing treatment plan Progress note and attainment of goals (narrative)
Verwijzing.png NL-CM:13.4.2 Arrowright.pngMeasurementValue::GeneralMeasurement (0..1) Measurements in which an observation, carried out with a (measuring) tool if possible, is translated to a relevant unit.
Block.png GeneralMeasurement
Verwijzing.png NL-CM:13.4.3 Arrowright.pngHealthCondition::FunctionalOrMentalStatus (0..1) A description of the patient’s health condition in the form of a functional and/or mental status.
Block.png FunctionalOrMentalStatus
Verwijzing.png NL-CM:13.4.4 Arrowright.pngIntervention::NursingIntervention 0..1 A description of the nursing intervention of which the effectivity is evaluated with the healthcare result.
Block.png NursingIntervention

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

UitkomstVanZorg
Meetwaarde
ResultaatStatus Definitief
Toelichting Waarschijnlijk delier.
MeetUitslag
MetingNaam Delirium observatie screening (DOS)
UitslagWaarde 7
UitslagDatumTijd 10-09-2014
Interventie
Interventie Waarborgen van veiligheid.

This information model in other releases

Information model references

This information model refers to

This information model is used in

--

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Prerelease 2018-2
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms version: 20180731 [R] (July 2018 Release)
  • LOINC version 2.64

Conditions for use are located on the mainpage List2.png
This page is generated on 12/03/2019 17:18:35 with ZibExtraction v. 3.0.7010.25883


Back 16.png Back to HCIM list
