Attention!! This is not the most recent version of this information model. You can find the most recent version here.

General information

Name: nl.nfu.MedicationDispense NL.png
Version: 1.0
HCIM Status:Final
Release: 2015
Release status: Published
Release date: 1-4-2015


Back 16.png Back to HCIM list

Metadata

DCM::CoderList Kerngroep Registratie aan de Bron
DCM::ContactInformation.Address
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom
DCM::ContentAuthorList Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron
DCM::CreationDate 19-12-2013
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name NFU
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.9.4
DCM::KeywordList Medicatie, Verstrekking
DCM::LifecycleStatus Final
DCM::ModelerList Kerngroep Registratie aan de Bron
DCM::Name nl.nfu.MedicatieVerstrekking
DCM::PublicationDate 1-4-2015
DCM::PublicationStatus Published
DCM::ReviewerList Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate 1-4-2015
DCM::Superseeds nl.nfu.OverdrachtMedicatie-v1.1 (2.16.840.1.113883.2.4.3.11.60.40.3.9.1)
DCM::Version 1.0
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (01-04-2015)

ZIB-56 RFC Bouwsteen Medicatie
ZIB-308 Prefix Overdracht weggehaald bij de generieke bouwstenen

Incl. algemene wijzigingsverzoeken:

ZIB-94 Aanpassen tekst van Disclaimer, Terms of Use & Copyrights
ZIB-154 Consequenties opsplitsing Medicatie bouwstenen voor overige bouwstenen.
ZIB-200 Naamgeving SNOMED CT in tagged values klinische bouwstenen gelijk getrokken.
ZIB-201 Naamgeving OID: in tagged value notes van klinische bouwstenen gelijk getrokken.
ZIB-309 EOI aangepast
ZIB-324 Codelijsten Name en Description beginnen met een Hoofdletter
ZIB-326 Tekstuele aanpassingen conform de kwaliteitsreview kerngroep 2015

Concept

Medication supply describes the supply of a medicinal product to a specific patient (or the administerer or a representative), with the intention of it being used according to the included instructions (usually to honor the supply request in a medication prescription).
Medication supply takes place when the patient (or any of the others listed above) physically receives the product.

Purpose

Recording supply information can be an important step in drawing up an up-to-date medication profile.

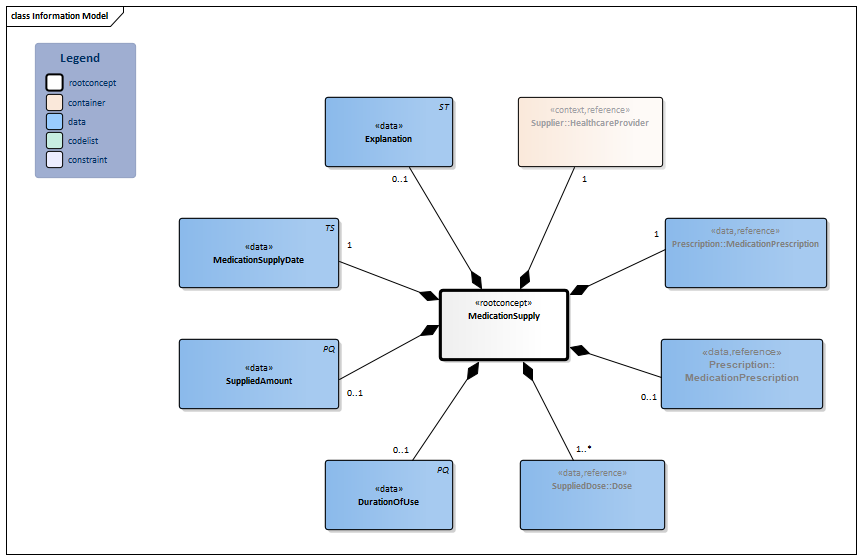

Information Model


MedicationPrescription-v1.0.1(2015EN)MedicationPrescription-v1.0.1(2015EN)#11085MedicationPrescription-v1.0.1(2015EN)HealthProfessional-v1.2.1(2015EN)#11082#11086#11083#11865MedicationDispense-v1.0Model(2015EN).png


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:9.4.1 Arrowdown.pngMedicationSupply Root concept of the MedicationSupply building block. This root concept contains all data elements of the MedicationSupply building block.
Verwijzing.png NL-CM:9.4.3 Arrowright.pngPrescription::MedicationPrescription 1 The supplied product is usually a medicine. Strictly speaking, food, blood products, aids and bandages do not fall under the category of medication, but supplying these products can be reported in the same manner.

In most cases, the supplied product will match the product prescribed in the medication prescription.

In principle, this will be the prescribed product, but the supplier may substitute it by replacing the prescribed product with an equivalent product. Furthermore, the supplier can replace a generically formulated prescribed product by a trade product, or they can replace the prescribed trade product with a different trade product.

Block.png MedicationPrescription
Verwijzing.png NL-CM:9.4.4 Arrowright.pngPrescription::MedicationPrescription 0..1 An agreement or order for the use of medication.
Block.png MedicationPrescription
Verwijzing.png NL-CM:9.4.5 Arrowright.pngSuppliedDose::Dose 1..* Instructions for the administerer to administer the medication (the patient themselves, a nurse or other aid).

The supplied dose will constitute more specified details of the administering schedule from the prescription, especially in terms of the administering schedule. For example, the prescription could contain 4xd1, which is then translated by the supplier into a label text as ‘1 unit to be taken 4 times a day, during meals’. In the case of Baxter packs, these kinds of codes are translated from ‘4xd1’ to specific times, such as 9:00am, 12:00pm, etc.

Block.png MedicationPrescription
PQ.png NL-CM:9.4.6 Arrowright.pngDurationOfUse 0..1 The period in which the medication is expected to be used. The value depends on the dose and the amount supplied.
PQ.png NL-CM:9.4.8 Arrowright.pngSuppliedAmount 0..1 Number of units of the product (measured based on the relevant product code) supplied.
TS.png NL-CM:9.4.7 Arrowright.pngMedicationSupplyDate 1 The date and time at which the medication was supplied.
Verwijzing.png NL-CM:9.4.2 Arrowright.pngSupplier::HealthcareProvider 1 In almost all cases, the supplier will be a registered pharmacist. In principle, it could also be supplied by a webshop (in case of an online order), a drugstore or a foreign pharmacy.
Block.png HealthProfessional
ST.png NL-CM:9.4.9 Arrowright.pngExplanation 0..1 Comments on supplying the medication.

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

VerstrekkingsProduct DatumMedicatie Verstrekking Verstrekte Hoeveelheid VerbruiksDuur VerstrekkingsDosering
ProductNaam Keerdosis | Toedieningsschema ToedieningsWeg
Paracetamol tablet 500 mg 3-5-2012 100 tabletten 4 weken Zo nodig 500mg (=1st), max. 4x/dag oraal
VerstrekkingsProduct DatumMedicatie Verstrekking Verstrekte Hoeveelheid VerbruiksDuur VerstrekkingsDosering
ProductNaam Keerdosis | Toedieningsschema ToedieningsWeg
Pantoprazol injpdr 40mg fl 11-9-2012 0:00 5 flacons 5 dagen 1x/dag(8u) 40mg (=1st) iv
VerstrekkingsProduct DatumMedicatie Verstrekking Verstrekte Hoeveelheid VerbruiksDuur VerstrekkingsDosering
ProductNaam Keerdosis | Toedieningsschema ToedieningsWeg
Dalteparine 2500 injvlst 12.500 ie/ml wwsp 0,2ml 19-9-2012 90 stuks 90 dagen 1x/dag(18u) 2500ie(=0,2ml) subcutaan
VerstrekkingsProduct DatumMedicatie Verstrekking Verstrekte Hoeveelheid VerbruiksDuur VerstrekkingsDosering
ProductNaam AanvullendeToelichting ToedieningsWeg
Prednison 5mg 1-9-2012 100 stuks Volgens afbouwschema oraal

References

1. GROOT, E. (2011) Dataset medicatieproces 2011. [Online] Den Haag: Nictiz. Beschikbaar op: http://www.nictiz.nl/module/360/590/Dataset_Medicatieproces_2011.xlsx [Geraadpleegd: 23 juli 2014].

2. HL7v3-implementatiehandleiding medicatieproces versie 6.1.0.0. [Online] Den Haag: Nictiz. Beschikbaar op: http://www.nictiz.nl/uploaded/FILES/html_cabinet/live/Zorgtoepassing/Medicatieproces/AORTA_Mp_IH_Medicatieproces_HL7.htm [Geraadpleegd: 23 juli 2014].

3. Dossier Medicatieoverzicht. [Online] Beschikbaar op: Oria.nl. [Geraadpleegd: 23 juli 2014].

4. G-standaard documentatie. [Online] Beschikbaar op: http://www.z-index.nl/ [Geraadpleegd: 23 juli 2014].

This information model in other releases

Information model references

This information model refers to

This information model is used in

--

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Registratie aan de bron publication 2015 including errata dd. 16-07-2015
