Malnutrition-v3.0(2016EN)
Inhoud
- 1 General information
- 2 Metadata
- 3 Revision History
- 4 Concept
- 5 Purpose
- 6 Information Model
- 7 Example Instances
- 8 References
- 9 Valuesets
- 10 This information model in other releases
- 11 Information model references
- 12 Technical specifications in HL7v3 CDA and HL7 FHIR
- 13 Downloads
- 14 About this information
General information
Name: nl.zorg.Malnutrition
Version: 3.0
HCIM Status:Final
Release: 2016
Release status: Published
Release date: 1-5-2016
Metadata
| DCM::CoderList | Werkgroep RadB Verpleegkundige Gegevens |
| DCM::ContactInformation.Address | * |
| DCM::ContactInformation.Name | * |
| DCM::ContactInformation.Telecom | * |
| DCM::ContentAuthorList | Werkgroep RadB Verpleegkundige Gegevens |
| DCM::CreationDate | 12-2-2014 |
| DCM::DeprecatedDate | |
| DCM::DescriptionLanguage | nl |
| DCM::EndorsingAuthority.Address | |
| DCM::EndorsingAuthority.Name | PM |
| DCM::EndorsingAuthority.Telecom | |
| DCM::Id | 2.16.840.1.113883.2.4.3.11.60.40.3.4.4 |
| DCM::KeywordList | Ondervoeding, MUST score, SNAQ score |
| DCM::LifecycleStatus | Final |
| DCM::ModelerList | Werkgroep RadB Verpleegkundige Gegevens |
| DCM::Name | nl.zorg.Ondervoeding |
| DCM::PublicationDate | 1-5-2016 |
| DCM::PublicationStatus | Published |
| DCM::ReviewerList | Projectgroep RadB Verpleegkundige Gegevens & Kerngroep Registratie aan de Bron |
| DCM::RevisionDate | 8-9-2015 |
| DCM::Superseeds | nl.nfu.Ondervoeding-v1.0 |
| DCM::Version | 3.0 |
| HCIM::PublicationLanguage | EN |
Revision History
Only available in Dutch
Publicatieversie 1.0 (01-07-2015)
Publicatieversie 3.0 (01-05-2016)
| ZIB-453 | Wijziging naamgeving ZIB's en logo's door andere opzet van beheer |
Concept
Malnutrition is a nutritional condition in which the patient has an imbalance of energy, protein and other nutrients leading to measurable negative effects on the body’s composition
and functioning. This is largely caused by a clinically relevant reduction in muscle mass.
Ill and vulnerable elderly people are particularly prone to malnutrition.
Aids in determining (the risk of) malnutrition are validated screening tools such as the MUST and SNAQ questionnaire.
(Source: NHG, National Primary Care Collaboration Agreement on Malnutrition)
Purpose
Malnutrition can lead to a significantly slower recovery, complications in the event of illness and operations and above all, higher mortality. Insight into the extent of (or risk of) malnutrition can help prevent malnutrition or prevent the nutritional condition from getting worse.

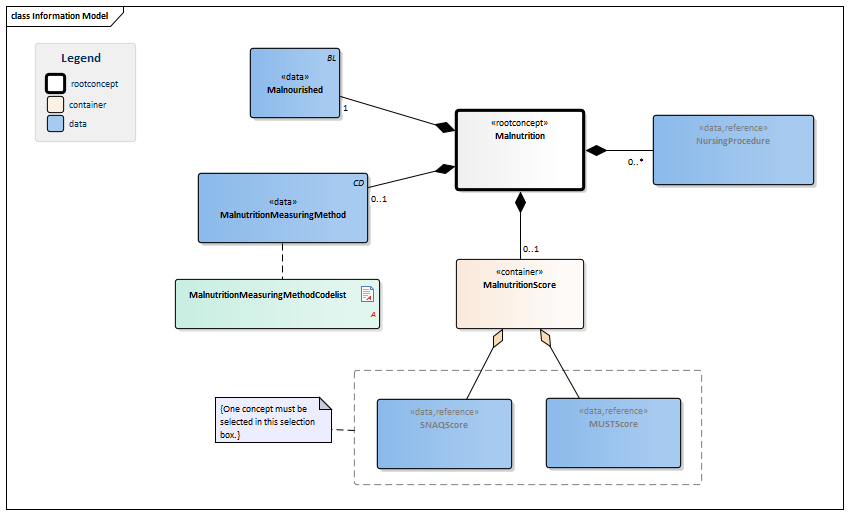

Information Model
| Type | Id | Concept | Card. | Definition | DefinitionCode | Reference | |||||||
|
NL-CM:4.4.1 |  Malnutrition
|
Root concept of the Malnutrition information model. This root concept contains all data elements of the Malnutrition information model. |
|
|||||||||
|
NL-CM:4.4.2 |  Malnourished
|
1 | An indication stating whether the patient is malnourished. | |||||||||
|
NL-CM:4.4.3 | MalnutritionMeasuringMethod
|
0..1 | Description of which measuring method is used to determine the malnutrition score. |
| ||||||||
|
NL-CM:4.4.4 | NursingProcedure
|
0..* | The nursing procedures that are/are to be carried out to improve the nutritional condition. |
| ||||||||
|
NL-CM:4.4.5 | MalnutritionScore
|
0..1 | Container of the MalnutritionScore concept. This container contains all data elements of the MalnutritionScore concept. | |||||||||
|
|
NL-CM:4.4.6 | SNAQScore
|
(0..1) | The screening tool to determine the extent of malnutrition following the SNAQ method. |
| ||||||||
|
|
NL-CM:4.4.7 | MUSTScore
|
(0..1) | The screening tool to determine the extent of malnutrition following the MUST method. |
| ||||||||
Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page
Example Instances
Only available in Dutch
| Ondervoeding | |
| Ondervoed | Ja |
| OndervoedingMeetmethode | SNAQ |
| OndervoedingsScore | |
| SNAQScore | |
| SnaqScoreDatumTijd | 17-02-2014 |
| TotaalScore | 2 |
| Toelichting | - |
| VerpleegkundigeActie | |
| Activiteit | Tussen de maaltijden extra drinkvoeding geven. |
References
1. NHG Landelijke Eerstelijns Samenwerkings Afspraak Ondervoeding [Online] Beschikbaar op:https://www.nhg.org/sites/default/files/content/nhg_org/uploads/ondervoeding.pdf [Geraadpleegd: 13 februari 2015]
Valuesets
MalnutritionMeasuringMethodCodelist
| Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.4.4.1 | Binding: |
| Conceptname | Conceptcode | Codesystem name | Codesystem OID | Description |
| SNAQ | 8881000146104 | SNOMED CT | 2.16.840.1.113883.6.96 | SNAQ |
| MUST | 414648004 | SNOMED CT | 2.16.840.1.113883.6.96 | MUST |
This information model in other releases
Information model references
This information model refers to
This information model is used in
- --
Technical specifications in HL7v3 CDA and HL7 FHIR
To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:
- HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment
- HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR
Downloads
This information model is also available as pdf file
or as spreadsheet
About this information
The information in this wikipage is based on Release summer 2016
Conditions for use are located on the mainpage
This page is generated on 21/12/2018 16:28:08 with ZibExtraction v. 3.0.6929.24609
