Attention!! This is not the most recent version of this information model. You can find the most recent version here.

General information

Name: nl.nfu.Malnutrition NL.png
Version: 1.0
HCIM Status:Final
Release: 2015
Release status: Published
Release date: 8-9-2015

Back 16.png Back to HCIM list


DCM::CoderList Werkgroep RadB Verpleegkundige Gegevens
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList Werkgroep RadB Verpleegkundige Gegevens
DCM::CreationDate 12-2-2014
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Name NFU & V&VN
DCM::Id 2.16.840.1.113883.
DCM::KeywordList Ondervoeding, MUST score, SNAQ score
DCM::LifecycleStatus Final
DCM::ModelerList Werkgroep RadB Verpleegkundige Gegevens
DCM::Name nl.nfu.Ondervoeding
DCM::PublicationDate 8-9-2015
DCM::PublicationStatus Published
DCM::ReviewerList Projectgroep RadB Verpleegkundige Gegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate 8-9-2015
DCM::Version 1.0
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (01-07-2015).


Malnutrition is a nutritional condition in which the patient has an imbalance of energy, protein and other nutrients leading to measurable negative effects on the body’s composition
and functioning. This is largely caused by a clinically relevant reduction in muscle mass.
Ill and vulnerable elderly people are particularly prone to malnutrition.
Aids in determining (the risk of) malnutrition are validated screening tools such as the MUST and SNAQ questionnaire.

(Source: NHG, National Primary Care Collaboration Agreement on Malnutrition)


Malnutrition can lead to a significantly slower recovery, complications in the event of illness and operations and above all, higher mortality. Insight into the extent of (or risk of) malnutrition can help prevent malnutrition or prevent the nutritional condition from getting worse.

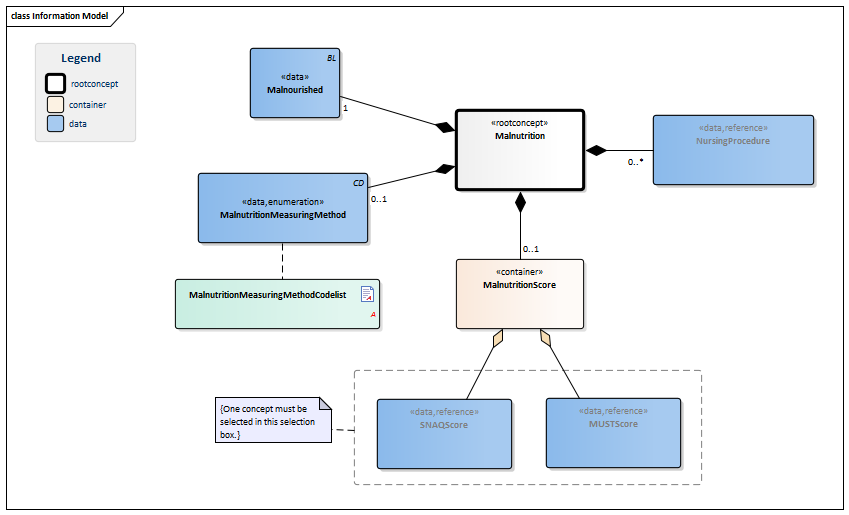

Information Model


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:4.4.1 Arrowdown.pngMalnutrition Root concept of the Malnutrition building block. This root concept contains all data elements of the Malnutrition building block.
2492009 Malnutrition
BL.png NL-CM:4.4.2 Arrowright.pngMalnourished 1 An indication stating whether the patient is malnourished.
CD.png NL-CM:4.4.3 Arrowright.pngMalnutritionMeasuringMethod 0..1 Description of which measuring method is used to determine the malnutrition score.
List2.png MalnutritionMeasuringMethodCodelist
Verwijzing.png NL-CM:4.4.4 Arrowright.pngNursingProcedure 0..* The nursing procedures that are/are to be carried out to improve the nutritional condition.
Block.png NursingIntervention
Folder.png NL-CM:4.4.5 Arrowdown.pngMalnutritionScore 0..1 Container of the MalnutritionScore concept. This container contains all data elements of the MalnutritionScore concept.
Verwijzing.png NL-CM:4.4.6 Arrowright.pngSNAQScore (0..1) The screening tool to determine the extent of malnutrition following the SNAQ method.
Block.png SNAQScore
Verwijzing.png NL-CM:4.4.7 Arrowright.pngMUSTScore (0..1) The screening tool to determine the extent of malnutrition following the MUST method.
Block.png MUSTScore

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

Ondervoed Ja
OndervoedingMeetmethode SNAQ
SnaqScoreDatumTijd 17-02-2014
TotaalScore 2
Toelichting -
Activiteit Tussen de maaltijden extra drinkvoeding geven.


1. NHG Landelijke Eerstelijns Samenwerkings Afspraak Ondervoeding [Online] Beschikbaar op: [Geraadpleegd: 13 februari 2015]



Valueset OID: 2.16.840.1.113883. Binding:
Conceptname Conceptcode Codesystem name Codesystem OID Description
SNAQ 8881000146104 SNOMED CT 2.16.840.1.113883.6.96 SNAQ
MUST 414648004 SNOMED CT 2.16.840.1.113883.6.96 MUST

This information model in other releases

Information model references

This information model refers to

This information model is used in


Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png


This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Registratie aan de bron publication 2015 including errata dd. 16-07-2015
Conditions for use are located on the mainpage List2.png
This page is generated on 24/12/2018 12:36:09 with ZibExtraction v. 3.0.6932.1989
