MUSTScore-v3.0(2018EN)

Uit Zorginformatiebouwstenen
Ga naar: navigatie, zoeken



General information

Name: nl.zorg.MUSTScore NL.png
Version: 3.0
HCIM Status:Final
Release: 2018
Release status: Prepublished
Release date: 01-10-2018


Back 16.png Back to HCIM list

Metadata

DCM::CoderList Werkgroep RadB Verpleegkundige Gegevens
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList Werkgroep RadB Verpleegkundige Gegevens
DCM::CreationDate 12-2-2014
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name PM
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.4.5
DCM::KeywordList Ondervoeding, ondervoedingsscore, MUST, malnutrition
DCM::LifecycleStatus Final
DCM::ModelerList Werkgroep RadB Verpleegkundige Gegevens
DCM::Name nl.zorg.MUSTScore
DCM::PublicationDate 01-10-2018
DCM::PublicationStatus Prepublished
DCM::ReviewerList Projectgroep RadB Verpleegkundige Gegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate 31-12-2017
DCM::Superseeds nl.nfu.MUSTScore-v1.0
DCM::Version 3.0
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (01-07-2015)

Publicatieversie 3.0 (01-05-2016)

ZIB-453 Wijziging naamgeving ZIB's en logo's door andere opzet van beheer

Concept

The Malnutrition Universal Screening Tool (MUST) is a (validated) diagnostic screening tool for determining the extent of a patient’s malnutrition.
For this screening tool, every patient’s Body Mass Index (BMI) and
weight loss percentage is calculated, after which the patient is assigned a disease factor. The MUST helps to recognize and treat malnutrition at an early stage.

(Source: Guidelines for Screening and Treating Malnutrition.)

Purpose

The MUST score is used to determine the extent of malnutrition or the risk of malnutrition. To treat malnutrition quickly and effectively, it is important to identify the malnutrition at an early stage.

Patient Population

The MUST is used for patients aged 18 and older.
For children, the STRONGkids tool is used.

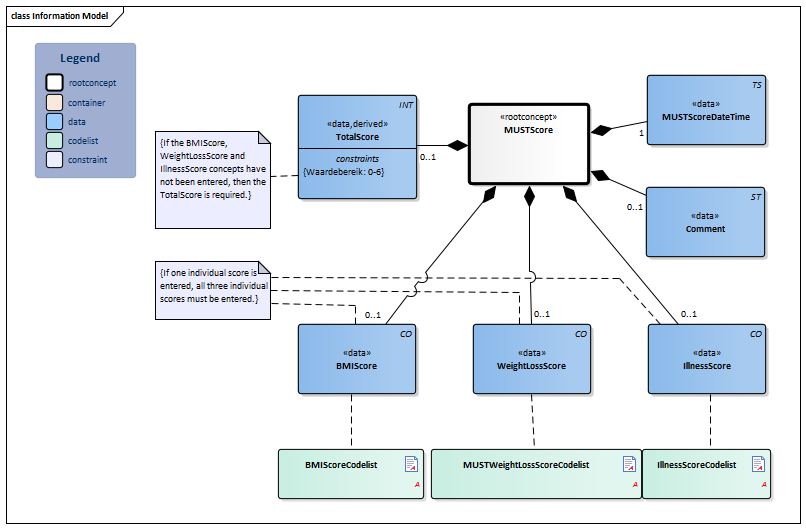

Information Model


#8037#IllnessScoreCodelist#MUSTWeightLossScoreCodelist#8036#8033#8028#BMIScoreCodelist#8035#8026#8027MUSTScore-v3.0Model(EN).png


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:4.5.1 Arrowdown.pngMUSTScore Root concept of the MUSTScore information model. This root concept contains all data elements of the MUSTScore information model.
444297006 Malnutrition universal screening tool score
CO.png NL-CM:4.5.3 Arrowright.pngBMIScore 0..1 A person’s Body Mass Index (BMI), also known as their Quetelet index (QI), is an index indicating the ratio between a person’s height and weight. This BMI is expressed in kg/m2.
List2.png BMIScoreCodelist
CO.png NL-CM:4.5.4 Arrowright.pngWeightLossScore 0..1 The percentage of undesired weight loss over the past 3-6 months.
List2.png MUSTWeightLossScoreCodelist
CO.png NL-CM:4.5.5 Arrowright.pngIllnessScore 0..1 Illness can result in reduced food intake, leading to a higher risk of malnutrition.

The IllnessScore concept is used to indicate that the patient is seriously ill and that the patient has not eaten for more than 5 days or that there is a chance that the patient has not eaten for more than 5 days.

List2.png IllnessScoreCodelist
INT.png NL-CM:4.5.2 Arrowright.pngTotalScore 0..1 The total score is the sum of all the individual scores. The total score has a range from 0 - 6.
TS.png NL-CM:4.5.6 Arrowright.pngMUSTScoreDateTime 1 The date and time at which the MUST score was determined.
ST.png NL-CM:4.5.7 Arrowright.pngComment 0..1 A comment on the circumstances during the measurement.
48767-8 Annotation comment [Interpretation] Narrative

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

MUSTScore
MUSTScoreDatumTijd 27-01-2013
BMIScore 2 (BMI<18,5 kg/m2)
GewichtsverliesScore 1 (Gewichtsverlies 5-10%)
ZiekteScore 0 (Niet ziek)
TotaalScore 3
Toelichting -

References

1. Stuurgroep Ondervoeding [Online] Beschikbaar op:http://www.stuurgroepondervoeding.nl/ [Geraadpleegd: 13 februari 2015]

2. Bapen [Online] Beschikbaar op:http://www.bapen.co.uk [Geraadpleegd: 13 februari 2015]

3. Richtlijn Behandeling en screening ondervoeding. [Online] Beschikbaar op:http://stuurgroepondervoeding.nl/wp-content/uploads/2015/02/Richtlijn_screenen_en_behandeling_van_ondervoeding_juni_2011.pdf [Geraadpleegd: 13 februari 2015]

Valuesets

BMIScoreCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.4.5.1 Binding: Required
Conceptname Conceptcode Conceptvalue Codesystem name Codesystem OID Description
BMIHigh B0 0 MUST_BMI 2.16.840.1.113883.2.4.3.11.60.40.4.4.1 BMI >20 kg/m2
BMIAverage B1 1 MUST_BMI 2.16.840.1.113883.2.4.3.11.60.40.4.4.1 BMI tussen 18,5-20 kg/m2
BMILow B2 2 MUST_BMI 2.16.840.1.113883.2.4.3.11.60.40.4.4.1 BMI < 18,5 kg/m2

IllnessScoreCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.4.5.3 Binding: Extensible
Conceptname Conceptcode Conceptvalue Codesystem name Codesystem OID Description
NotAcutelyIll Z0 0 MUST_Ziekte 2.16.840.1.113883.2.4.3.11.60.40.4.4.3 Niet ziek
AcutelyIll Z1 2 MUST_Ziekte 2.16.840.1.113883.2.4.3.11.60.40.4.4.3 Ziek

MUSTWeightLossScoreCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.4.5.2 Binding: Required
Conceptname Conceptcode Conceptvalue Codesystem name Codesystem OID Description
LossLow G0 0 MUST_Gewichtsverlies 2.16.840.1.113883.2.4.3.11.60.40.4.4.2 Gewichtsverlies <5%
LossAverage G1 1 MUST_Gewichtsverlies 2.16.840.1.113883.2.4.3.11.60.40.4.4.2 Gewichtsverlies = 5-10%
LossHigh G2 2 MUST_Gewichtsverlies 2.16.840.1.113883.2.4.3.11.60.40.4.4.2 Gewichtsverlies >10%

This information model in other releases

Information model references

This information model refers to

--

This inforation model is used in

--

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Prerelease 2018 #1
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms version: 20180731 [R] (July 2018 Release)
  • LOINC version 2.64

Conditions for use are located on the mainpage List2.png
This page is generated on 01/11/2018 22:22:58 with ZibExtraction v. 2.0.6879.31307
