General information

Name: nl.zorg.HelpFromOthers NL.png
Version: 3.0.1
HCIM Status:Final
Release: 2018
Release status: Prepublished
Release date: 26-02-2019


Back 16.png Back to HCIM list

Metadata

DCM::CoderList Werkgroep RadB Verpleegkundige Gegevens
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList Werkgroep RadB Verpleegkundige Gegevens
DCM::CreationDate 7-7-2014
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name PM
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.3.2
DCM::KeywordList Mantelzorg, hulp van anderen, thuiszorg, ADL
DCM::LifecycleStatus Final
DCM::ModelerList Werkgroep RadB Verpleegkundige Gegevens
DCM::Name nl.zorg.HulpVanAnderen
DCM::PublicationDate 26-02-2019
DCM::PublicationStatus Prepublished
DCM::ReviewerList Projectgroep RadB Verpleegkundige Gegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate 31-12-2017
DCM::Superseeds nl.zorg.HulpVanAnderen-v3.0
DCM::Version 3.0.1
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (01-07-2015)

Publicatieversie 3.0 (01-05-2016)

ZIB-453 Wijziging naamgeving ZIB's en logo's door andere opzet van beheer

Publicatieversie 3.0.1 (26-02-2019)

ZIB-695 Tekstuele fout in voorbeeld
ZIB-696 Container hulpverlener is overbodig en Engelse vertaling kan beter

Concept

There are often multiple people or parties involved in the care for a patient with a disorder or disability, particularly in the event of home care. Their efforts enable the patient to function more or less independently. This includes not only caregivers, but also professional help such as that offered by home care organizations, nurses, aids and helpers.
Current doctors and staff from the facility to which a patient is admitted do not fall under this concept.

Purpose

Information on help from others can provide a good estimate of the availability of the care required by the patient. If this care is not sufficiently available, measures can be taken to facilitate the required care.
This plays a particularly important role in for example discharges from the hospital or from a nursing home.

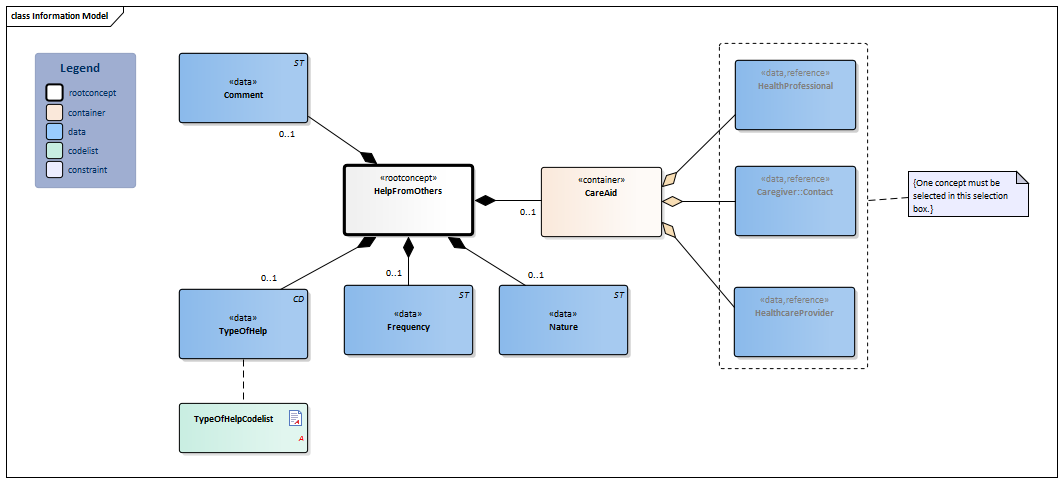

Information Model


#9983#9987#9988#9990#10059HealthProfessional-v3.2(2018EN)ContactPerson-v3.2(2018EN)HealthcareProvider-v3.2(2018EN)#10319#TypeOfHelpCodelistHelpFromOthers-v3.0.1Model(2018EN).png


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:3.2.1 Arrowdown.pngHelpFromOthers Root concept of the HelpFromOthers information model. This root concept contains all data elements of the HelpFromOthers information model.
243114000 Support
Folder.png NL-CM:3.2.5 Arrowdown.pngCareAid 0..1 Container of the Aid concept. This container contains all data elements of the Aid concept.

An aid can be a health professional such as nurses, carers and helpers but also a caregiver or healthcare provider such as a home care organization.

Verwijzing.png NL-CM:3.2.6 Arrowright.pngHealthProfessional (0..1) Details of the health professional involved in the patient’s care.
Block.png HealthProfessional
Verwijzing.png NL-CM:3.2.7 Arrowright.pngCaregiver::Contact (0..1) Details of the caregiver involved in the patient’s support.
Block.png ContactPerson
Verwijzing.png NL-CM:3.2.8 Arrowright.pngHealthcareProvider (0..1) Details of the organization the health professional/aid works for in the event that it is not entered as a person.
Block.png HealthcareProvider
ST.png NL-CM:3.2.3 Arrowright.pngNature 0..1 The nature of the help/support provided to the patient.
ST.png NL-CM:3.2.2 Arrowright.pngFrequency 0..1 The frequency of the provided support, e.g. daily/weekly.
260866001 Pattern of frequency
CD.png NL-CM:3.2.9 Arrowright.pngTypeOfHelp 0..1 The type of help offered by the person in question.
List2.png TypeOfHelpCodelist
ST.png NL-CM:3.2.4 Arrowright.pngComment 0..1 A comment on the help/support the patient receives from others.
48767-8 Annotation comment [Interpretation] Narrative

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

HulpVanAnderen
SoortHulp Mantelzorg
Aard Boodschappen doen
Frequentie 1 keer per week
Hulpverlener
Mantelzorger
Rol Buur
Naam
Geslachtsnaam
Voorvoegsels de
Achternaam Boer
Toelichting -
HulpVanAnderen
SoortHulp Professionele thuiszorg
Aard Ondersteuning bij wassen
Frequentie Dagelijks
Hulpverlener
Zorgaanbieder
Organisatienaam Thuiszorg X
Toelichting -

Valuesets

TypeOfHelpCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.3.2.1 Binding: Extensible
Conceptname Conceptcode Codesystem name Codesystem OID Description
Home care of patient 60689008 SNOMED CT 2.16.840.1.113883.6.96 Professionele thuiszorg
Caregiver support 386229000 SNOMED CT 2.16.840.1.113883.6.96 Mantelzorg

This information model in other releases

Information model references

This information model refers to

This information model is used in

--

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Prerelease 2018-2
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms version: 20180731 [R] (July 2018 Release)
  • LOINC version 2.64

Conditions for use are located on the mainpage List2.png
