Attention!! This is not the most recent version of this information model. You can find the most recent version ''here''.

General information

Name: nl.nfu.HelpFromOthers NL.png
Version: 1.0
HCIM Status:Final
Release: 2015
Release status: Published
Release date: 8-9-2015

Back 16.png Back to HCIM list


DCM::CoderList Werkgroep RadB Verpleegkundige Gegevens
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList Werkgroep RadB Verpleegkundige Gegevens
DCM::CreationDate 7-7-2014
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Name NFU & V&VN
DCM::Id 2.16.840.1.113883.
DCM::KeywordList Mantelzorg, hulp van anderen, thuiszorg, ADL
DCM::LifecycleStatus Final
DCM::ModelerList Werkgroep RadB Verpleegkundige Gegevens
DCM::Name nl.nfu.HulpVanAnderen
DCM::PublicationDate 8-9-2015
DCM::PublicationStatus Published
DCM::ReviewerList Projectgroep RadB Verpleegkundige Gegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate 8-9-2015
DCM::Version 1.0
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (01-07-2015).


There are often multiple people or parties involved in the care for a patient with a disorder or disability, particularly in the event of home care. Their efforts enable the patient to function more or less independently. This includes not only caregivers, but also professional help such as that offered by home care organizations, nurses, aids and helpers.
Current doctors and staff from the facility to which a patient is admitted do not fall under this concept.


Information on help from others can provide a good estimate of the availability of the care required by the patient. If this care is not sufficiently available, measures can be taken to facilitate the required care.
This plays a particularly important role in for example discharges from the hospital or from a nursing home.

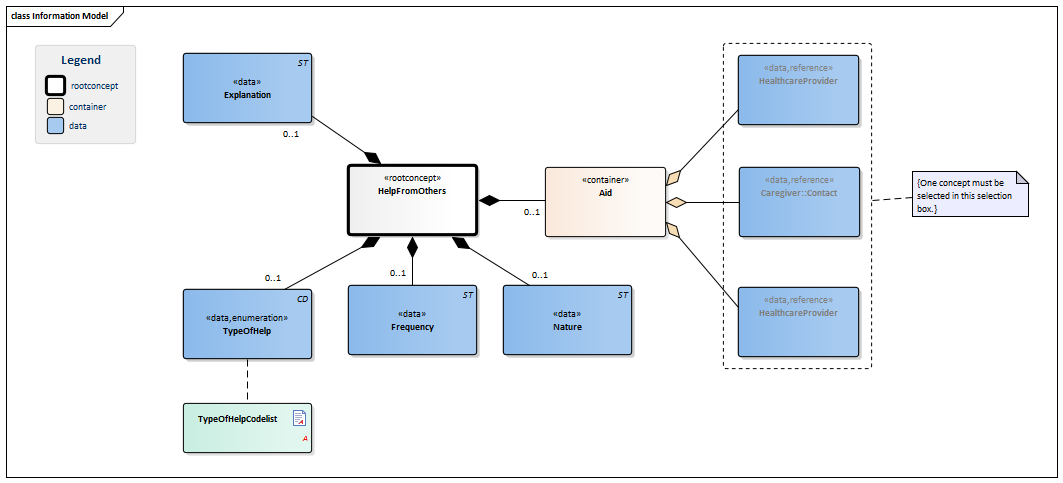

Information Model


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:3.2.1 Arrowdown.pngHelpFromOthers Root concept of the HelpFromOthers building block. This root concept contains all data elements of the HelpFromOthers building block.
243114000 Supportive care
Folder.png NL-CM:3.2.5 Arrowdown.pngAid 0..1 Container of the Aid concept. This container contains all data elements of the Aid concept.

An aid can be a professional healthcare provider such as nurses, carers and helpers but also a caregiver or healthcare provider such as a home care organization.

Verwijzing.png NL-CM:3.2.6 Arrowright.pngHealthcareProvider (0..1) Details of the healthcare provider involved in the patient’s care.
Block.png HealthProfessional
Verwijzing.png NL-CM:3.2.7 Arrowright.pngCaregiver::Contact (0..1) Details of the caregiver involved in the patient’s support.
Block.png ContactPerson
Verwijzing.png NL-CM:3.2.8 Arrowright.pngHealthcareProvider (0..1) Details of the organization the healthcare provider/aid works for in the event that it is not entered as a person.
Block.png HealthcareProvider
ST.png NL-CM:3.2.3 Arrowright.pngNature 0..1 The nature of the help/support provided to the patient.
ST.png NL-CM:3.2.2 Arrowright.pngFrequency 0..1 The frequency of the provided support, e.g. daily/weekly.
260866001 Pattern of frequency
CD.png NL-CM:3.2.9 Arrowright.pngTypeOfHelp 0..1 The type of help offered by the person in question.
List2.png TypeOfHelpCodelist
ST.png NL-CM:3.2.4 Arrowright.pngExplanation 0..1 An explanation of the help/support the patient receives from others.
48767-8 Annotation comment

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

SoortHulp Mantelzorg
Aard Boodschappen doen
Frequentie 1 keer per week
Rol Buur
Voorvoegsels de
Achternaam Boer
Toelichting -
SoortHulp Professionele zorg
Aard Ondersteuning bij wassen
Frequentie Dagelijks
Organisatienaam Thuiszorg X
Toelichting -



Valueset OID: 2.16.840.1.113883. Binding:
Conceptname Conceptcode Codesystem name Codesystem OID Description
Provision of home help 271391000 SNOMED CT 2.16.840.1.113883.6.96 Professionele thuiszorg
Caregiver support 386229000 SNOMED CT 2.16.840.1.113883.6.96 Mantelzorg

This information model in other releases

Information model references

This information model refers to

This information model is used in


Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png


This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Registratie aan de bron publication 2015 including errata dd. 16-07-2015
Conditions for use are located on the mainpage List2.png
This page is generated on 24/12/2018 12:35:45 with ZibExtraction v. 3.0.6932.1989

Back 16.png Back to HCIM list
