DispenseRequest-v4.0(2024EN)

Uit Zorginformatiebouwstenen
Ga naar: navigatie, zoeken



General information

Name: nl.zorg.DispenseRequest NL.png
Version: 4.0
HCIM Status:Final
Release: 2024
Release status: Prepublished
Release date: 15-04-2024


Back 16.png Back to HCIM list

Metadata

DCM::CoderList Projectgroep Medicatieproces
DCM::ContactInformation.Address
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom
DCM::ContentAuthorList Projectgroep Medicatieproces
DCM::CreationDate 1-2-2017
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name PM
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.9.10
DCM::KeywordList Medicatie, Verstrekkingsverzoek
DCM::LifecycleStatus Final
DCM::ModelerList Architectuurgroep Registratie aan de Bron
DCM::Name nl.zorg.Verstrekkingsverzoek
DCM::PublicationDate 15-04-2024
DCM::PublicationStatus Prepublished
DCM::ReviewerList Projectgroep Medicatieproces & Architectuurgroep Registratie aan de Bron
DCM::RevisionDate 10-04-2024
DCM::Supersedes nl.zorg.Verstrekkingsverzoek-v3.0
DCM::Version 4.0
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (04-09-2017)

Publicatieversie 1.0.1 (31-12-2017)

ZIB-618 Hernoemen Verstrekking naar Medicatieverstrekking

Publicatieversie 1.0.2 (31-01-2020)

ZIB-888 terminologie reden voor stoppen medicatie verbeteren en SNOMED coderingen zibs met meditatieproces gelijktrekken

Publicatieversie 1.0.3 (01-09-2020)

ZIB-911 Correction English "Farmaceutical"
ZIB-1011 Omschrijving bij 'Aantal herhalingen"

Publicatieversie 1.1 (01-12-2021)

ZIB-1452 Duplicate tekst in zib concept omschrijving en definitie op de root
ZIB-1457 Verwijderen woord 'voorlopig'

Publicatieversie 2.0 (10-06-2022)

ZIB-1721 Verzameling errata bouwsteen Verstrekkingsverzoek

Publicatieversie 3.0 (15-10-2023)

ZIB-1462 Concept naam PeriodOfUse geen goede vertaling in zib Verstrekkingsverzoek

Publicatieversie 4.0 (15-04-2024)

ZIB-1989 IMM toevoegen aan codelijst 'aanvullende wensen' VV
ZIB-2128 Correctie naamgeving codesysteem aanvullende informatie en wensen
ZIB-2132 2023-1 Verwijzingen naar FarmaceutischProduct gebruiken verkeerde NL-CM id
ZIB-2164 Status toevoegen aan VerstrekkingsVerzoek
ZIB-2176 Ucum waardes beperken volgens medicatieproces

Concept

The dispense request is the request of a prescriber to the pharmacist to dispense medication(s) to the patient to support current medication agreements. The prescriber asks them to dispense a certain amount of medicine or to dispense medicine(s) for a period of use.

Purpose

The goal of the dispense request is for the pharmacist to supply the medicine so the patient has a sufficient amount.

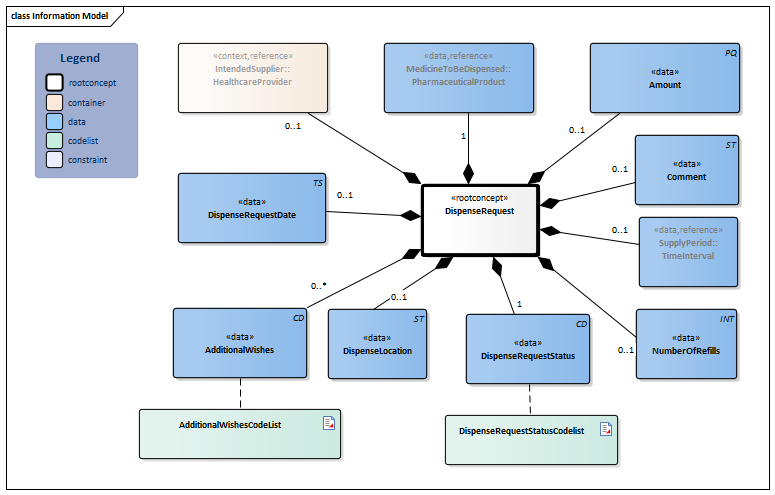

Information Model


#AdditionalWishesCodeList#1576TimeInterval-v1.3(2024EN)#1572#1574PharmaceuticalProduct-v2.2.1(2024EN)#1568#1570#1567HealthcareProvider-v3.6(2024EN)#1569#4870#DispenseRequestStatusCodelistDispenseRequest-v4.0Model(2024EN).png


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:9.10.19963 Arrowdown.pngDispenseRequest Root concept of the DispenseRequest information model.This root concept contains all data elements of the DispenseRequest information model.
52711000146108 Request to dispense medication to patient
Verwijzing.png NL-CM:9.10.19966 Arrowright.pngIntendedSupplier::HealthcareProvider 0..1 The intended supplier is a pharmacist.
Block.png HealthcareProvider
Verwijzing.png NL-CM:9.10.22249 Arrowright.pngMedicineToBeDispensed::PharmaceuticalProduct 1 The medicine to be dispensed.
Block.png PharmaceuticalProduct
TS.png NL-CM:9.10.20060 Arrowright.pngDispenseRequestDate 0..1 Time at which the dispense request is entered.
Verwijzing.png NL-CM:9.10.20062 Arrowright.pngSupplyPeriod::TimeInterval 0..1 During the approved period of use, the pharmacist has permission to dispense medicine so that the patient has a sufficient amount of medication.

In many cases, the approved supply period can be described by only an end date: the approved end date of use.

Toegestane eenheden voor de duur zijn: uur, dag, week, jaar.

Block.png TimeInterval
INT.png NL-CM:9.10.22120 Arrowright.pngNumberOfRefills 0..1 The number of additional times the medication may be dispensed after the first time.

In the case of <i>Amount</i>: The total amount that may be dispensed is: (Number of refills + 1) x amount to be dispensed. In the case of <i>Period of Use</i>:The total period of use is: (Number of refills + 1) x period of use

PQ.png NL-CM:9.10.19964 Arrowright.pngAmount 0..1 This is the number of units of the ordered product per dispense. The number of refills indicates how often this amount is allowed to be dispensed. Optionally a translation to NHG table Gebruiksvoorschriften (Table 25) is also allowed.
ST.png NL-CM:9.10.20068 Arrowright.pngDispenseLocation 0..1 Dispense location.
CD.png NL-CM:9.10.22759 Arrowright.pngAdditionalWishes 0..* Logistics and other instructions such as: do not enter in GDS, urgent, purposeful deviation, etc.
List2.png AdditionalWishesCodeList
CD.png NL-CM:9.10.22760 Arrowright.pngDispenseRequestStatus 1 Status of the order in the ordering process, such as e.g. 'cancelled', 'ordered'
List2.png DispenseRequestStatusCodelist
ST.png NL-CM:9.10.22274 Arrowright.pngComment 0..1 Explanation for the dispense request.

This explanation can contain e.g. information on why a prescriber submits a dispense request that deviates from the norm, e.g. an extra dispense request needed because the patient has lost the medication.

48767-8 Annotation comment [Interpretation] Narrative

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

VerstrekkingsverzoekDatum Te verstrekken hoeveelheid AantalHerhalingen TeVerstrekkenGeneesmiddel Verbruiksperiode BeoogdVerstrekker Afleverlocatie Aanvullende wensen
ProductCode IngangsDatum Einddatum Duur Zorgaanbieder
ZorgaanbiederNaam
13-07-15 40 stuks 0 Metoclopramide zetpil 20mg 40 dagen Apotheek De Gulle Gaper Verpleeghuis De Ronde Vaten
Spoed

Valuesets

AdditionalWishesCodeList

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.9.10.1 Binding: Required
Conceptname Conceptcode Codesystem name Codesystem OID Description
Spoed 1 Medicatieproces VV aanvullende wensen 2.16.840.1.113883.2.4.3.11.60.20.77.5.2.14.2051 Spoed
Niet in GDS 2 Medicatieproces VV aanvullende wensen 2.16.840.1.113883.2.4.3.11.60.20.77.5.2.14.2051 Niet in GDS
Bezorgen 3 Medicatieproces VV aanvullende wensen 2.16.840.1.113883.2.4.3.11.60.20.77.5.2.14.2051 Bezorgen
In manu medici (IMM) 4 Medicatieproces VV aanvullende wensen 2.16.840.1.113883.2.4.3.11.60.20.77.5.2.14.2051 In manu medici (IMM)

Note: The G-standard contains a copy of the MP value lists.

DispenseRequestStatusCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.9.10.2 Binding: Required
Conceptname Conceptcode Codesystem name Codesystem OID Description
Active active ActStatus 2.16.840.1.113883.5.14 Actief
Suspended suspended ActStatus 2.16.840.1.113883.5.14 Onderbroken
Aborted aborted ActStatus 2.16.840.1.113883.5.14 Afgebroken
Completed completed ActStatus 2.16.840.1.113883.5.14 Voltooid
Cancelled cancelled ActStatus 2.16.840.1.113883.5.14 Niet gestart

This information model in other releases

Information model references

This information model refers to

This information model is used in

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.<BR> Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Prerelease 2024-1
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms versie: 20240331 [R] (maart 2024-editie)
  • LOINC version 2.77

Conditions for use are located on the mainpage List2.png
This page is generated on 25/04/2024 12:43:19 with ZibExtraction v. 9.3.8880.19756
