General information

Name: nl.nfu.BodyHeight NL.png
Version: 1.2
HCIM Status:Final
Release: 2015
Release status: Published
Release date: 1-4-2015

Back 16.png Back to HCIM list


DCM::CoderList Kerngroep Registratie aan de Bron
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron
DCM::CreationDate 29-11-2012
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Name NFU
DCM::Id 2.16.840.1.113883.
DCM::KeywordList lichaamslengte, lengte, vitale parameters
DCM::LifecycleStatus Final
DCM::ModelerList Kerngroep Registratie aan de Bron
DCM::Name nl.nfu.Lichaamslengte
DCM::PublicationDate 1-4-2015
DCM::PublicationStatus Published
DCM::ReviewerList Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate 1-4-2015
DCM::Version 1.2
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (15-02-2013)

Publicatieversie 1.1 (01-07-2013)

Publicatieversie 1.2 (01-04-2015)

ZIB-247 In de klinische bouwsteen OverdrachtLengte stond bij concept Lengte onterecht 177cm als DCM::ValueSet tagged value, dit zou DCM::ExampleValue moeten zijn.
ZIB-248 In de klinische bouwsteen OverdrachtLengte kwam de naam van de tagged value ContextPositieCodelijst onder concept ContextPositie niet overeen met de naam van de valueset.
ZIB-301 Referentie beschrijving 'Hartslag' aanpassen naar 'Lichaamslengte'.
ZIB-308 Prefix Overdracht weggehaald bij de generieke bouwstenen
ZIB-320 ContextPositie wijzigen in Positie
ZIB-321 Rootconceptnaam wijzigen in LengteRC
ZIB-358 Aanpassen naamgeving bouwsteen.

Incl. algemene wijzigingsverzoeken:

ZIB-94 Aanpassen tekst van Disclaimer, Terms of Use & Copyrights
ZIB-154 Consequenties opsplitsing Medicatie bouwstenen voor overige bouwstenen.
ZIB-200 Naamgeving SNOMED CT in tagged values klinische bouwstenen gelijk getrokken.
ZIB-201 Naamgeving OID: in tagged value notes van klinische bouwstenen gelijk getrokken.
ZIB-309 EOI aangepast
ZIB-324 Codelijsten Name en Description beginnen met een Hoofdletter
ZIB-326 Tekstuele aanpassingen conform de kwaliteitsreview kerngroep 2015


A person’s body height.


Body height is used for various reasons, including to measure growth, such as in babies, children or adolescents, to calculate body surface area, to for example calculate the correct amount of medication, or in combination with body weight to calculate the Body Mass Index. Height is also used to determine a person’s nutritional state.

This healthcare information building block offers the option to record a person’s body height.

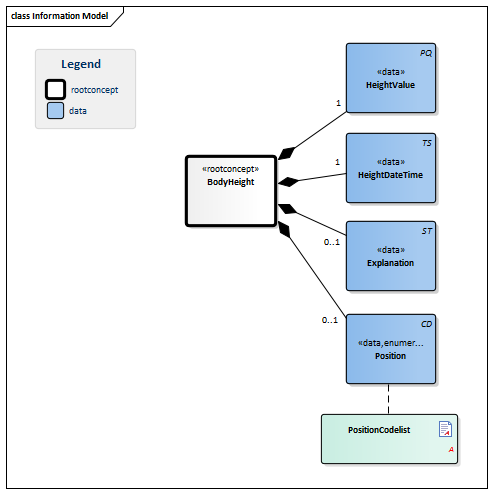

Information Model


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:12.2.1 Arrowdown.pngBodyHeight Root concept of the BodyHeight building block. This root concept contains all data elements of the BodyHeight building block.
PQ.png NL-CM:12.2.2 Arrowright.pngHeightValue 1 The element contains the value of the measured body height.

Body height is the height of the human body from heel to scalp, generally measured when standing. Body height is measured in a stretched, horizontal position for very small children or patients that are unable to stand.

50373000 Body height measure (observable entity)
TS.png NL-CM:12.2.4 Arrowright.pngHeightDateTime 1 Date and if possible time of body height measurement.
ST.png NL-CM:12.2.3 Arrowright.pngExplanation 0..1 Explanation of the body height measurement.
CD.png NL-CM:12.2.5 Arrowright.pngPosition 0..1 The person's position during the measurement.
List2.png PositionCodelist

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

LengteDatumTijd LengteWaarde Positie Toelichting
08-02-2013 6:43 153 cm Staande positie Met schoenen aan


1. Parelsnoer DCM Lichaamslengte v0.98 [Online] Beschikbaar op: [Geraadpleegd: 19 december 2014].

2. openEHR-EHR-OBSERVATION.height.v1 [Online] Beschikbaar op: [Geraadpleegd: 19 december 2014].



Valueset OID: 2.16.840.1.113883. Binding:
Conceptname Conceptcode Codesystem name Codesystem OID Description
Standing position 10904000 SNOMED CT 2.16.840.1.113883.6.96 Staande positie
Lying position 102538003 SNOMED CT 2.16.840.1.113883.6.96 Liggende positie

This information model in other releases

Information model references

This information model refers to


This information model is used in


Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png


This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Registratie aan de bron publication 2015 including errata dd. 16-07-2015
Conditions for use are located on the mainpage List2.png
This page is generated on 24/12/2018 12:29:50 with ZibExtraction v. 3.0.6932.1989
