VisualFunction-v3.1(2018EN)

Attention!! This is not the most recent version of this information model. You can find the most recent version ''here''.

General information

Name: nl.zorg.VisualFunction
Version: 3.1
HCIM Status:Final
Release: 2018
Release status: Prepublished
Release date: 26-02-2019

---

Back to HCIM list

Metadata

DCM::CoderList	Werkgroep RadB Verpleegkundige Gegevens
DCM::ContactInformation.Address	*
DCM::ContactInformation.Name	*
DCM::ContactInformation.Telecom	*
DCM::ContentAuthorList	Werkgroep RadB Verpleegkundige Gegevens
DCM::CreationDate	4-4-2014
DCM::DeprecatedDate
DCM::DescriptionLanguage	nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name	PM
DCM::EndorsingAuthority.Telecom
DCM::Id	2.16.840.1.113883.2.4.3.11.60.40.3.4.16
DCM::KeywordList	Zien, lagere visuele functies, gezichtsvermogen
DCM::LifecycleStatus	Final
DCM::ModelerList	Werkgroep RadB Verpleegkundige Gegevens
DCM::Name	nl.zorg.FunctieZien
DCM::PublicationDate	26-02-2019
DCM::PublicationStatus	Prepublished
DCM::ReviewerList	Projectgroep RadB Verpleegkundige Gegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate	31-12-2017
DCM::Superseeds	nl.zorg.FunctieZien-v3.0
DCM::Version	3.1
HCIM::PublicationLanguage	EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (01-07-2015)

Publicatieversie 3.0 (01-05-2016)

Publicatieversie 3.1 (04-09-2017)

ZIB-530	Verwijzingen naar de bouwsteen Verpleegkundige Interventie verwijderd
ZIB-531	Vervangen 5-punts ICF schaal door 3-punts SNOMED CT schaal voor beperkingen en stoornissen

.

Concept

Sight is the ability to observe lit objects, with the goal of orienting yourself on objects and people in a lit environment. This pertains to observing the light stimuli, and not processing them in the brain.
A sight disorder can lead to things including orientation problems.

Purpose

Information on visual function disorders is important in patient care and treatment and particularly in the communication with the patient. Based on this information, healthcare can be adjusted to the patient’s limitations if needed.

Evidence Base

The definitions of the concepts were (partially) taken from the ICNP definitions.

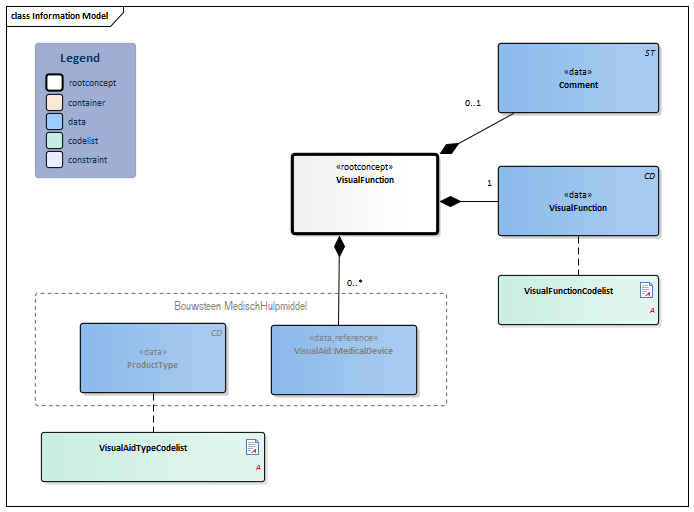

Information Model

Type	Id	Concept						Card.	Definition	DefinitionCode	Reference
	NL-CM:4.16.1	VisualFunction							Root concept of the VisualFunction information model. This concept contains all data elements of the VisualFunction information model.
	NL-CM:4.16.3		VisualFunction					1	The ability to see as a result of response to stimuli of visual organs	281004000 Visual function	VisualFunctionCodelist
	NL-CM:4.16.4		VisualAid:MedicalDevice					0..*	The medical aids used to support the visual function.	257192006 Aid to vision	MedicalDevice
	NL-CM:10.1.3				ProductType				The type of product used to help the patient see.		VisualAidTypeCodelist
	NL-CM:4.16.2		Comment					0..1	A comment on the visual function.	48767-8 Annotation comment [Interpretation] Narrative

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page

Example Instances

Only available in Dutch

FunctieZien
VisueleFunctie	Verminderd gezichtsvermogen
ZienHulpmiddel
ProductType	Leesbril
Toelichting	Ziet met linkeroog slechter dan met het rechteroog.

References

1. International Classification of Functioning Disability and Health (ICF) [Online] Beschikbaar op:http:/www.rivm.nl/who-fic/icf.htm [Geraadpleegd: 13 februari 2015]

Valuesets

VisualAidTypeCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.4.16.2

Binding: Extensible

Conceptname	Conceptcode	Codesystem name	Codesystem OID	Description
geen	0	eCare codes	2.16.840.1.113883.2.4.3.11.22.218	geen visuele hulpmiddelen
Single vision reading glasses	423013001	SNOMED CT	2.16.840.1.113883.6.96	leesbril
Eyeglasses	50121007	SNOMED CT	2.16.840.1.113883.6.96	bril
Contact lenses	57368009	SNOMED CT	2.16.840.1.113883.6.96	contactlenzen
Magnifier	264865009	SNOMED CT	2.16.840.1.113883.6.96	loep
other	OTH	NullFlavor	2.16.840.1.113883.5.1008	anders

VisualFunctionCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.4.16.1

Binding: Required

Conceptname	Conceptcode	Codesystem name	Codesystem OID	Description
Normal vision	45089002	SNOMED CT	2.16.840.1.113883.6.96	Geen visuele stoornis
Visual impairment	397540003	SNOMED CT	2.16.840.1.113883.6.96	Verminderd gezichtsvermogen
Blind or low vision - both eyes	267727004	SNOMED CT	2.16.840.1.113883.6.96	(Vrijwel) blind

This information model in other releases

• Release 2015, (Version 1.0)
• Release 2016, (Version 3.0)
• Release 2017, (Version 3.1)
• Prerelease 2019-2, (Version 3.1)
• Release 2020, (Version 3.1)
• Prerelease 2021-2, (Version 3.3)
• Prerelease 2022-1, (Version 3.3)
• Prerelease 2023-1, (Version 3.4)
• Prerelease 2024-1, (Version 3.4)

Information model references

This information model refers to

• MedicalDevice-v3.2

This information model is used in

--

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

• HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment
• HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR

Downloads

This information model is also available as pdf file or as spreadsheet

About this information

The information in this wikipage is based on Prerelease 2018-2
SNOMED CT and LOINC codes are based on:

• SNOMED Clinical Terms version: 20180731 [R] (July 2018 Release)
• LOINC version 2.64

Conditions for use are located on the mainpage
This page is generated on 12/03/2019 17:16:50 with ZibExtraction v. 3.0.7010.25883

---
