Attention!! This is not the most recent version of this information model. You can find the most recent version ''here''.

General information

Name: nl.zorg.part.TimeInterval NL.png
Version: 1.0
HCIM Status:Final
Release: 2020
Release status: Published
Release date: 01-09-2020

Back 16.png Back to HCIM list


DCM::CoderList Kerngroep Registratie aan de Bron
DCM::ContentAuthorList Kerngroep Registratie aan de Bron
DCM::CreationDate 17-8-2017
DCM::DescriptionLanguage nl
DCM::Id 2.16.840.1.113883.
DCM::LifecycleStatus Final
DCM::ModelerList Kerngroep Registratie aan de Bron
DCM::Name nl.zorg.part.TijdsInterval
DCM::PublicationDate 01-09-2020
DCM::PublicationStatus Published
DCM::ReviewerList Kerngroep Registratie aan de Bron
DCM::RevisionDate 31-12-2017
DCM::Version 1.0
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (04-09-2017).


A time interval indicates the time between two moments in time. Interval can be defined by a start time and end time , start time and duration or duration and end time.


The time interval is used to denote the period of time in the time over which the corresponding event took place or should take place.

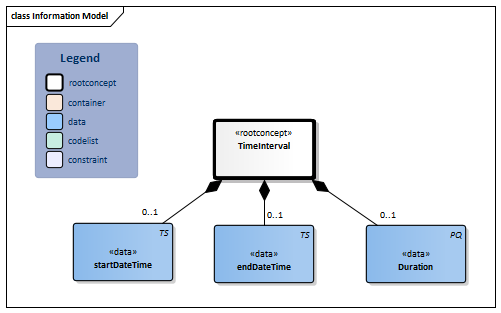

Information Model


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:20.3.1 Arrowdown.pngTimeInterval Root concept of the TimeInterval partial information model. This root concept contains all data elements of the TimeInterval partial information model.
TS.png NL-CM:20.3.2 Arrowright.pngstartDateTime 0..1 The start date and time of the interval
TS.png NL-CM:20.3.3 Arrowright.pngendDateTime 0..1 The end date and time of the interval
PQ.png NL-CM:20.3.4 Arrowright.pngDuration 0..1 The duration of the interval in appropriate units of time (e.g. days or hours, etc.

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

Start DatumTijd 20-08-2017 12:00
Eind DatumTijd 30-08-2017 24:00
Start DatumTijd 20-08-2017
Eind DatumTijd
Duur 16 dagen

This information model in other releases

Information model references

This information model refers to


This information model is used in

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png


This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Release 2020
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms version: 20200731 [R] (July 2020 Release)
  • LOINC version 2.67

Conditions for use are located on the mainpage List2.png
