TimeInterval-v1.0(2018EN)

Uit Zorginformatiebouwstenen
Ga naar: navigatie, zoeken



General information

Name: nl.zorg.part.TimeInterval NL.png
Version: 1.0
HCIM Status:Final
Release: 2018
Release status: Prepublished
Release date: 01-10-2018


Back 16.png Back to HCIM list

Metadata

DCM::CoderList Kerngroep Registratie aan de Bron
DCM::ContactInformation.Address
DCM::ContactInformation.Name
DCM::ContactInformation.Telecom
DCM::ContentAuthorList Kerngroep Registratie aan de Bron
DCM::CreationDate 17-8-2017
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.20.3
DCM::KeywordList
DCM::LifecycleStatus Final
DCM::ModelerList Kerngroep Registratie aan de Bron
DCM::Name nl.zorg.part.TijdsInterval
DCM::PublicationDate 01-10-2018
DCM::PublicationStatus Prepublished
DCM::ReviewerList Kerngroep Registratie aan de Bron
DCM::RevisionDate 31-12-2017
DCM::Superseeds
DCM::Version 1.0
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (04-09-2017).

Concept

A time interval indicates the time between two moments in time. Interval can be defined by a start time and end time , start time and duration or duration and end time.

Purpose

The time interval is used to denote the period of time in the time over which the corresponding event took place or should take place.

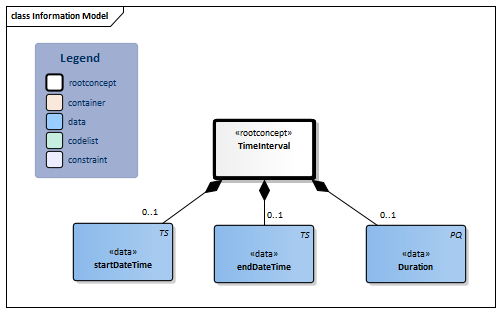

Information Model




Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:20.3.1 Arrowdown.pngTimeInterval Root concept of the TimeInterval partial information model. This root concept contains all data elements of the TimeInterval partial information model.
TS.png NL-CM:20.3.2 Arrowright.pngstartDateTime 0..1 The start date and time of the interval
TS.png NL-CM:20.3.3 Arrowright.pngendDateTime 0..1 The end date and time of the interval
PQ.png NL-CM:20.3.4 Arrowright.pngDuration 0..1 The duration of the interval in appropriate units of time (e.g. days or hours, etc.

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

TijdsInterval
Start DatumTijd 20-08-2017 12:00
Eind DatumTijd 30-08-2017 24:00
Duur
TijdsInterval
Start DatumTijd 20-08-2017
Eind DatumTijd
Duur 16 dagen

This information model in other releases

Information model references

This information model refers to

--

This inforation model is used in

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Prerelease 2018 #1
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms version: 20180731 [R] (July 2018 Release)
  • LOINC version 2.64

Conditions for use are located on the mainpage List2.png
This page is generated on 01/11/2018 17:25:33 with ZibExtraction v. 2.0.6879.31307


Back 16.png Back to HCIM list
