General information

Name: nl.zorg.Sleepfunction NL.png
Version: 3.0
HCIM Status:Final
Release: 2016
Release status: Published
Release date: 1-5-2016


Back 16.png Back to HCIM list

Metadata

DCM::CoderList Werkgroep RadB Verpleegkundige Gegevens
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList Werkgroep RadB Verpleegkundige Gegevens
DCM::CreationDate 4-4-2014
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name PM
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.4.21
DCM::KeywordList Slapen, slaapfunctie
DCM::LifecycleStatus Final
DCM::ModelerList Werkgroep RadB Verpleegkundige Gegevens
DCM::Name nl.zorg.Slaapfunctie
DCM::PublicationDate 1-5-2016
DCM::PublicationStatus Published
DCM::ReviewerList Projectgroep RadB Verpleegkundige Gegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate 8-9-2015
DCM::Superseeds nl.nfu.Slaapfunctie-v1.0
DCM::Version 3.0
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (01-07-2015)

Publicatieversie 3.0 (01-05-2016)

ZIB-453 Wijziging naamgeving ZIB's en logo's door andere opzet van beheer

Concept

Sleep is the period of inactivity and absence of waking consciousness in which the body relaxes and has lowered physiological and psychological activity.
Varying causes can lead to sleeping problems and disorders in the various aspects of sleep, such as falling asleep, sleeping soundly and maintaining a day-time/night-time sleeping pattern.
Sleeping mainly involves problems and disorders.

Purpose

Chronic sleeping problems have a major impact on the patient and on their recovery. They are associated with chronic health problems, an increased risk of depression and anxiety disorder and a worse subjective health.
Sleeping disorders are documented to signal their presence to healthcare providers and to coordinate the healthcare to meet the requirements of the disorders.

Evidence Base

The definitions of the concepts were (partially) taken from the ICF definitions.

Information Model

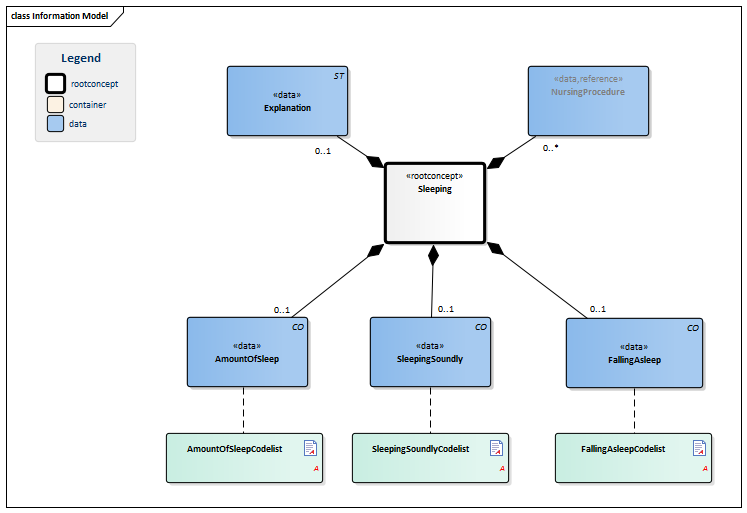

#9203#FallingAsleepCodelist#SleepingSoundlyCodelist#AmountOfSleepCodelistNursingIntervention-v3.0(2016EN)#9212#9213#9210#9208Sleepfunction-v3.0Model(2016EN).png


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:4.21.1 Arrowdown.pngSleeping Root concept of the Sleeping information model. This root concept contains all data elements of the Sleeping information model.
CO.png NL-CM:4.21.3 Arrowright.pngFallingAsleep 0..1 FallingAsleep is the transition between being awake and asleep.
b1341 Inslapen
List2.png FallingAsleepCodelist
CO.png NL-CM:4.21.4 Arrowright.pngSleepingSoundly 0..1 Sleeping soundly is continued sleep.
b1342 Doorslapen
List2.png SleepingSoundlyCodelist
CO.png NL-CM:4.21.5 Arrowright.pngAmountOfSleep 0..1 The amount of sleep is the time spent sleeping during the day-time/night-time cycle or the day.
b1340 HoeveelheidSlaap
List2.png AmountOfSleepCodelist
Verwijzing.png NL-CM:4.21.2 Arrowright.pngNursingProcedure 0..* The nursing procedures needed to care for the patient with their sleeping problems and disorders.
Block.png NursingIntervention
ST.png NL-CM:4.21.6 Arrowright.pngExplanation 0..1 An explanation of the sleeping function.
48767-8 Annotation comment

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

Slaapfunctie
Inslapen Lichte stoornis (5-24%)
Doorslapen Geen stoornis (0-4%)
HoeveelheidSlaap Lichte stoornis (5-24%)
VerpleegkundigeActie
Activiteit Voor de nacht warme melk geven.
Toelichting Slaapt gemiddeld 6 uur per nacht.

References

1. International Classification of Functioning Disability and Health (ICF) [Online] Beschikbaar op:http:/www.rivm.nl/who-fic/icf.htm [Geraadpleegd: 13 februari 2015]

Valuesets

AmountOfSleepCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.4.21.3 Binding:
Conceptname Conceptcode Codesystem name Codesystem OID Description
Geen stoornis b1340.0 ICF 2.16.840.1.113883.6.254 Stoornis 0-4%
Lichte stoornis b1340.1 ICF 2.16.840.1.113883.6.254 Stoornis 5-24%
Matige stoornis b1340.2 ICF 2.16.840.1.113883.6.254 Stoornis 25-49%
Ernstige stoornis b1340.3 ICF 2.16.840.1.113883.6.254 Stoornis 50-95%
Volledige stoornis b1340.4 ICF 2.16.840.1.113883.6.254 Stoornis 96-100%

FallingAsleepCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.4.21.1 Binding:
Conceptname Conceptcode Codesystem name Codesystem OID Description
Geen stoornis b1341.0 ICF 2.16.840.1.113883.6.254 Stoornis 0-4%
Lichte stoornis b1341.1 ICF 2.16.840.1.113883.6.254 Stoornis 5-24%
Matige stoornis b1341.2 ICF 2.16.840.1.113883.6.254 Stoornis 25-49%
Ernstige stoornis b1341.3 ICF 2.16.840.1.113883.6.254 Stoornis 50-95%
Volledige stoornis b1341.4 ICF 2.16.840.1.113883.6.254 Stoornis 96-100%

SleepingSoundlyCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.4.21.2 Binding:
Conceptname Conceptcode Codesystem name Codesystem OID Description
Geen stoornis b1342.0 ICF 2.16.840.1.113883.6.254 Stoornis 0-4%
Lichte stoornis b1342.1 ICF 2.16.840.1.113883.6.254 Stoornis 5-24%
Matige stoornis b1342.2 ICF 2.16.840.1.113883.6.254 Stoornis 25-49%
Ernstige stoornis b1342.3 ICF 2.16.840.1.113883.6.254 Stoornis 50-95%
Volledige stoornis b1342.4 ICF 2.16.840.1.113883.6.254 Stoornis 96-100%

This information model in other releases

Information model references

This information model refers to

This information model is used in

--

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Release summer 2016
Conditions for use are located on the mainpage List2.png
