PulseRate-v3.1(2018EN)

Attention!! This is not the most recent version of this information model. You can find the most recent version ''here''.

General information

Name: nl.zorg.PulseRate
Version: 3.1
HCIM Status:Final
Release: 2018
Release status: Prepublished
Release date: 01-10-2018

---

Back to HCIM list

Metadata

DCM::CoderList	Kerngroep Registratie aan de Bron
DCM::ContactInformation.Address	*
DCM::ContactInformation.Name	*
DCM::ContactInformation.Telecom	*
DCM::ContentAuthorList	Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron
DCM::CreationDate	12-11-2012
DCM::DeprecatedDate
DCM::DescriptionLanguage	nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name	PM
DCM::EndorsingAuthority.Telecom
DCM::Id	2.16.840.1.113883.2.4.3.11.60.40.3.12.7
DCM::KeywordList	pols, polsfrequentie, polsslag, pulsus
DCM::LifecycleStatus	Final
DCM::ModelerList	Kerngroep Registratie aan de Bron
DCM::Name	nl.zorg.Polsfrequentie
DCM::PublicationDate	01-10-2018
DCM::PublicationStatus	Prepublished
DCM::ReviewerList	Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate	31-12-2017
DCM::Superseeds	nl.zorg.Polsfrequentie-v3.0
DCM::Version	3.1
HCIM::PublicationLanguage	EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (15-02-2013) -

Publicatieversie 1.1 (01-07-2013)

ZIB-45

Commentaar Astrid van Ginneken op Polsfrequentie

Publicatieversie 1.2 (01-04-2015)

ZIB-79	OverdrachtPolsfrequentie v1.1
ZIB-266	DCM::Name van klinische bouwsteen OverdrachtPolsfrequentie aangepast naar nl.nfu.OverdrachtPolsfrequentie.
ZIB-308	Prefix Overdracht weggehaald bij de generieke bouwstenen

Incl. algemene wijzigingsverzoeken:

ZIB-94	Aanpassen tekst van Disclaimer, Terms of Use & Copyrights
ZIB-154	Consequenties opsplitsing Medicatie bouwstenen voor overige bouwstenen.
ZIB-200	Naamgeving SNOMED CT in tagged values klinische bouwstenen gelijk getrokken.
ZIB-201	Naamgeving OID: in tagged value notes van klinische bouwstenen gelijk getrokken.
ZIB-309	EOI aangepast
ZIB-324	Codelijsten Name en Description beginnen met een Hoofdletter
ZIB-326	Tekstuele aanpassingen conform de kwaliteitsreview kerngroep 2015

Publicatieversie 3.0 (01-05-2016)

ZIB-453

Wijziging naamgeving ZIB's en logo's door andere opzet van beheer

Publicatieversie 3.1 (04-09-2017)

ZIB-431	Gebruik van LOINC en SNOMED CT in vitale functies gerelateerde zorginformatiebouwstenen
ZIB-564	Aanpassing/harmonisatie Engelse conceptnamen

Concept

The pulse rate is the number of palpations per minute measured at an artery.

Purpose

Obtaining information on the circulation and heart function by measuring the number of beats per minute and the regularity in artery palpation.

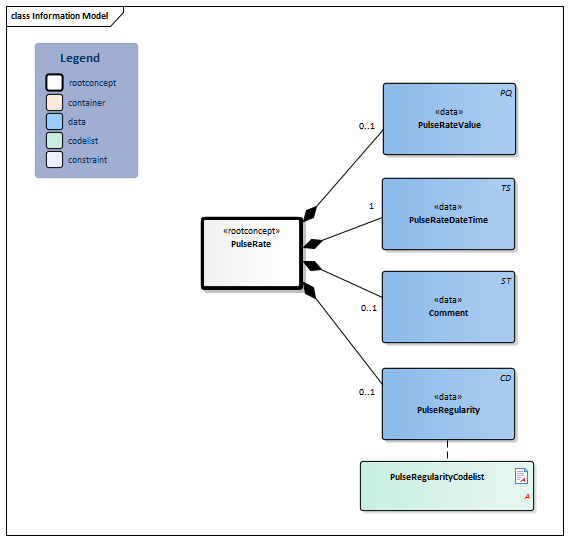

Information Model

Type	Id	Concept						Card.	Definition	DefinitionCode	Reference
	NL-CM:12.7.1	PulseRate							Root concept of the PulseRate information model. This root concept contains all data elements of the PulseRate information model.
	NL-CM:12.7.2		PulseRateValue					0..1	The element contains the value of the pulse rate measured. The pulse rate is expressed in the number of tangible pulsations of an artery per minute, usually the a. radialis, a. carotis or a. femoralis.	8893-0 Heart rate Peripheral artery by palpation
	NL-CM:12.7.3		PulseRateDateTime					1	Date and time of the pulse rate or pulse regularity measurement.
	NL-CM:12.7.4		Comment					0..1	Comment on any problems or factors that may influence the measurement. Further explanation of pulse properties can be provided here as well: aequale/inaequale, pulsus alternans, pulsus paradoxus, pulse volume, etc.	48767-8 Annotation comment [Interpretation] Narrative
	NL-CM:12.7.5		PulseRegularity					0..1	Regular or irregular rhythm.		PulseRegularityCodelist

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page

Example Instances

Only available in Dutch

PolsFrequentie DatumTijd	PolsfrequentieWaarde	PolsRegelmatigheid	Toelichting
08-02-2013 6:43	50/min	Polsslag onregelmatig	Sportvrouw

References

1. openEHR-EHR-OBSERVATION.heart_rate-pulse.v1[Online] Beschikbaar op: http://www.openehr.org/knowledge/ [Geraadpleegd: 23 februari 2015].

Valuesets

PulseRegularityCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.12.7.1

Binding: Extensible

Conceptname	Conceptcode	Codesystem name	Codesystem OID	Description
Pulse regular	271636001	SNOMED-CT	2.16.840.1.113883.6.96	Polsslag regelmatig
Pulse irregular	61086009	SNOMED-CT	2.16.840.1.113883.6.96	Polsslag onregelmatig

This information model in other releases

• Release 2015, (Version 1.2)
• Release 2016, (Version 3.0)
• Release 2017, (Version 3.1)
• Prerelease 2019-2, (Version 3.3)
• Release 2020, (Version 3.3)
• Prerelease 2021-2, (Version 3.3)
• Prerelease 2022-1, (Version 3.3)
• Prerelease 2023-1, (Version 3.3)
• Prerelease 2024-1, (Version 3.3)

Information model references

This information model refers to

--

This information model is used in

--

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

• HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment
• HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR

Downloads

This information model is also available as pdf file or as spreadsheet

About this information

The information in this wikipage is based on Prerelease 2018 #1
SNOMED CT and LOINC codes are based on:

• SNOMED Clinical Terms version: 20180731 [R] (July 2018 Release)
• LOINC version 2.64

Conditions for use are located on the mainpage
This page is generated on 23/12/2018 01:19:31 with ZibExtraction v. 3.0.6929.24609

---
