General information

Name: nl.zorg.O2Saturation
Version: 3.1
HCIM Status:Final
Release: 2020
Release status: Published
Release date: 01-09-2020

---

Back to HCIM list

Metadata

DCM::CoderList	Kerngroep Registratie aan de Bron
DCM::ContactInformation.Address	*
DCM::ContactInformation.Name	*
DCM::ContactInformation.Telecom	*
DCM::ContentAuthorList	Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron
DCM::CreationDate	29-11-2012
DCM::DeprecatedDate
DCM::DescriptionLanguage	nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name	PM
DCM::EndorsingAuthority.Telecom
DCM::Id	2.16.840.1.113883.2.4.3.11.60.40.3.12.10
DCM::KeywordList	zuurstofsaturatie, vitale parameters, saturatie
DCM::LifecycleStatus	Final
DCM::ModelerList	Kerngroep Registratie aan de Bron
DCM::Name	nl.zorg.O2Saturatie
DCM::PublicationDate	01-09-2020
DCM::PublicationStatus	Published
DCM::ReviewerList	Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate	31-12-2017
DCM::Supersedes	nl.zorg.O2Saturatie-v3.0
DCM::Version	3.1
HCIM::PublicationLanguage	EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (15-02-2013) - Publicatieversie 1.1 (01-07-2013) -

Publicatieversie 1.2 (01-04-2015)

ZIB-308

Prefix Overdracht weggehaald bij de generieke bouwstenen

Incl. algemene wijzigingsverzoeken:

ZIB-94	Aanpassen tekst van Disclaimer, Terms of Use & Copyrights
ZIB-154	Consequenties opsplitsing Medicatie bouwstenen voor overige bouwstenen.
ZIB-200	Naamgeving SNOMED CT in tagged values klinische bouwstenen gelijk getrokken.
ZIB-201	Naamgeving OID: in tagged value notes van klinische bouwstenen gelijk getrokken.
ZIB-309	EOI aangepast
ZIB-324	Codelijsten Name en Description beginnen met een Hoofdletter
ZIB-326	Tekstuele aanpassingen conform de kwaliteitsreview kerngroep 2015

Publicatieversie 3.0 (01-05-2016)

ZIB-453

Wijziging naamgeving ZIB's en logo's door andere opzet van beheer

Publicatieversie 3.1 (04-09-2017)

ZIB-431	Gebruik van LOINC en SNOMED CT in vitale functies gerelateerde zorginformatiebouwstenen
ZIB-564	Aanpassing/harmonisatie Engelse conceptnamen

Concept

Arterial oxygen saturation, also referred to as saturation, is an indicator for the amount of oxygen bound to the hemoglobin in the red blood cells of the arteries. The measurement is usually carried out as a transcutaneous measurement with a blood oxygen monitor or pulse oximeter. The saturation level is expressed as a percentage and should be over 95% in healthy people.

Purpose

Measuring and monitoring oxygen saturation is done to monitor the oxygenation, or the amount of bound oxygen in the arterial blood.

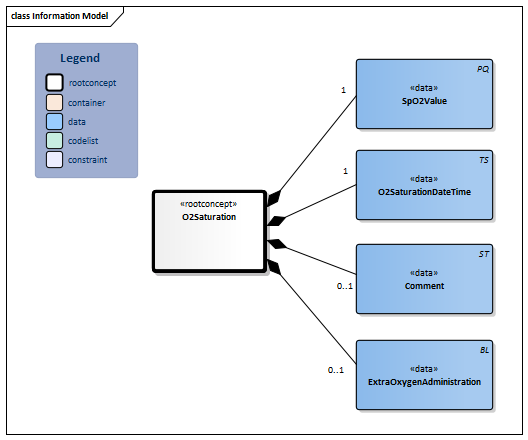

Information Model

Type	Id	Concept						Card.	Definition	DefinitionCode	Reference
	NL-CM:12.10.1	O2Saturation							Root concept of the O2Saturation information model. This root concept contains all data elements of the O2Saturation information model.
	NL-CM:12.10.2		SpO2Value					1	The element contains the value of the indirect, peripheral measured O2 saturation. The O2 saturation gives a percentage expressing the extent to which the blood’s hemoglobin is saturated with oxygen, the ratio of oxygen-saturated hemoglobin to hemoglobin. The measurement is done in places where sufficient light can get through the skin, such as a finger, toe or earlobe.	59408-5 Oxygen saturation in Arterial blood by Pulse oximetry
	NL-CM:12.10.3		O2SaturationDateTime					1	The moment (date and time) of the SpO2 measurement.
	NL-CM:12.10.4		Comment					0..1	Comment on the saturation measurement.	48767-8 Annotation comment [Interpretation] Narrative
	NL-CM:12.10.5		ExtraOxygenAdministration					0..1	Indication stating whether the measurement was done in a situation in which extra oxygen was administered.

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page

Example Instances

Only available in Dutch

O2SaturatieDatumTijd	SpO2Waarde	ExtraZuurstofToediening	Toelichting
08-02-2013 6:43	92%	Ja	Stijgt snel bij aanspreken

References

1. openEHR-EHR-OBSERVATION.indirect_oximetry.v1[Online] Beschikbaar op: http://www.openehr.org/knowledge/ [Geraadpleegd: 19 december 2014].

Traceability to other Standards

This health and care information model is in accordance with the information model template Measurement v1.0.

This information model in other releases

• Release 2015, (Version 1.2)
• Release 2016, (Version 3.0)
• Release 2017, (Version 3.1)
• Prerelease 2018-2, (Version 3.1)
• Prerelease 2019-2, (Version 3.1)
• Prerelease 2021-2, (Version 4.0)
• Prerelease 2022-1, (Version 4.0)
• Prerelease 2023-1, (Version 4.0)
• Prerelease 2024-1, (Version 4.0)

Information model references

This information model refers to

--

This information model is used in

--

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

• HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment
• HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR

Downloads

This information model is also available as pdf file or as spreadsheet

About this information

The information in this wikipage is based on Release 2020
SNOMED CT and LOINC codes are based on:

• SNOMED Clinical Terms version: 20200731 [R] (July 2020 Release)
• LOINC version 2.67

Conditions for use are located on the mainpage
This page is generated on 29/09/2020 21:35:01 with ZibExtraction v. 4.0.7577.31095

---
