General information

Name: nl.zorg.MenstrualCycle NL.png
Version: 3.0
HCIM Status:Final
Release: 2016
Release status: Published
Release date: 1-5-2016


Back 16.png Back to HCIM list

Metadata

DCM::CoderList Werkgroep RadB Verpleegkundige Gegevens
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList Werkgroep RadB Verpleegkundige Gegevens
DCM::CreationDate 1-4-2014
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name PM
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.4.23
DCM::KeywordList Menstruatiecyclus
DCM::LifecycleStatus Final
DCM::ModelerList Werkgroep RadB Verpleegkundige Gegevens
DCM::Name nl.zorg.Menstruatiecyclus
DCM::PublicationDate 1-5-2016
DCM::PublicationStatus Published
DCM::ReviewerList Projectgroep RadB Verpleegkundige Gegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate 8-9-2015
DCM::Superseeds nl.nfu.Menstruatiecyclus-v1.0
DCM::Version 3.0
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (01-07-2015)

Publicatieversie 3.0 (01-05-2016)

ZIB-453 Wijziging naamgeving ZIB's en logo's door andere opzet van beheer

Concept

The menstrual cycle is a periodical change in sexually mature women’s bodies between puberty and menopause. The cycle has to do with egg cell maturation and getting the body ready for potential pregnancy.
Various causes can lead to deviations or disruptions in the cycle.
The concept mainly focuses on the disorders and does not describe whether the patient is capable of independently taking care of their menstrual hygiene. This is described in the ToiletUse information model.

Purpose

Information on menstrual cycle disorders is recorded to inform other healthcare providers. This does not involve the diagnosis but the impact the disorders and symptoms can have on patient care. The information can be used to update the healthcare plan.

Evidence Base

The definitions of the concepts were (partially) taken from the ICF definitions.

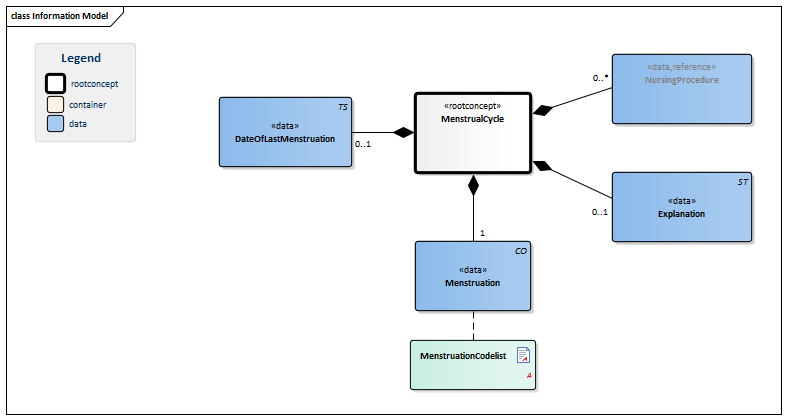

Information Model


#11016#9708NursingIntervention-v3.0(2016EN)#MenstruationCodelist#9710#9711MenstrualCycle-v3.0Model(2016EN).png


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:4.23.1 Arrowdown.pngMenstrualCycle Root concept of the MenstrualCycle information model. This root concept contains all data elements of the MenstrualCycle information model.
TS.png NL-CM:4.23.3 Arrowright.pngDateOfLastMenstruation 0..1 The date on which the last menstruation started.
CO.png NL-CM:4.23.2 Arrowright.pngMenstruation 1 Functions linked to the menstrual cycle. Often includes menstrual cycle, interval between menstruations, and extent of menstrual bleeding; menarche, menopause; disorders such as those in primary and secondary amenorrhea, menorrhagia, polymenorrhea and retrograde menstruation and premenstrual syndrome. The severity of the disorder can be indicated in this concept. Further information on the nature of the disorder can be provided in the explanation.
b650 Menstruatiefunctie
List2.png MenstruationCodelist
Verwijzing.png NL-CM:4.23.5 Arrowright.pngNursingProcedure 0..* Description of the nursing procedures needed to treat menstrual cycle disorders.
Block.png NursingIntervention
ST.png NL-CM:4.23.4 Arrowright.pngExplanation 0..1 Explanation of the menstruation disorder.
48767-8 Annotation comment

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

Menstruatiecyclus
Menstruatie Lichte stoornis (5-24%)
VerpleegkundigeActie
Activiteit -
Toelichting Menstruatiecyclus is onregelmatig.

References

1. International Classification of Functioning Disability and Health (ICF) [Online] Beschikbaar op:http:/www.rivm.nl/who-fic/icf.htm [Geraadpleegd: 13 februari 2015]

Valuesets

MenstruationCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.4.23.1 Binding:
Conceptname Conceptcode Codesystem name Codesystem OID Description
Geen stoornis b650.0 ICF 2.16.840.1.113883.6.254 Stoornis 0-4%
Lichte stoornis b650.1 ICF 2.16.840.1.113883.6.254 Stoornis 5-24%
Matige stoornis b650.2 ICF 2.16.840.1.113883.6.254 Stoornis 25-49%
Ernstige stoornis b650.3 ICF 2.16.840.1.113883.6.254 Stoornis 50-95%
Volledige stoornis b650.4 ICF 2.16.840.1.113883.6.254 Stoornis 96-100%

This information model in other releases

Information model references

This information model refers to

This information model is used in

--

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Release summer 2016
Conditions for use are located on the mainpage List2.png
This page is generated on 21/12/2018 16:27:54 with ZibExtraction v. 3.0.6929.24609
