General information
Name: nl.nfu.HearingFunction
Version: 1.0
HCIM Status:Final
Release: 2015
Release status: Published
Release date: 8-9-2015
Metadata
| DCM::CoderList |
Werkgroep RadB Verpleegkundige Gegevens
|
| DCM::ContactInformation.Address |
*
|
| DCM::ContactInformation.Name |
*
|
| DCM::ContactInformation.Telecom |
*
|
| DCM::ContentAuthorList |
Werkgroep RadB Verpleegkundige Gegevens
|
| DCM::CreationDate |
4-4-2014
|
| DCM::DeprecatedDate |
|
| DCM::DescriptionLanguage |
nl
|
| DCM::EndorsingAuthority.Address |
|
| DCM::EndorsingAuthority.Name |
NFU & V&VN
|
| DCM::EndorsingAuthority.Telecom |
|
| DCM::Id |
2.16.840.1.113883.2.4.3.11.60.40.3.4.17
|
| DCM::KeywordList |
Horen, auditieve functies, gehoor
|
| DCM::LifecycleStatus |
Final
|
| DCM::ModelerList |
Werkgroep RadB Verpleegkundige Gegevens
|
| DCM::Name |
nl.nfu.FunctieHoren
|
| DCM::PublicationDate |
8-9-2015
|
| DCM::PublicationStatus |
Published
|
| DCM::ReviewerList |
Projectgroep RadB Verpleegkundige Gegevens & Kerngroep Registratie aan de Bron
|
| DCM::RevisionDate |
8-9-2015
|
| DCM::Superseeds |
|
| DCM::Version |
1.0
|
| HCIM::PublicationLanguage |
EN
|
Revision History
Only available in Dutch
Publicatieversie 1.0 (01-07-2015).
Concept
Hearing is the ability to observe sound, with the purpose of communicating with others, localizing the source of the sound and recognizing certain sounds. This pertains to observing the sound waves, and not processing the sounds in the brain.
A hearing disorder can lead to things including communication problems.
Purpose
Information on hearing function disorders is important in patient nursing and care and particularly in communication with the patient.
Evidence Base
The definitions of the concepts were (partially) taken from the ICF definitions.

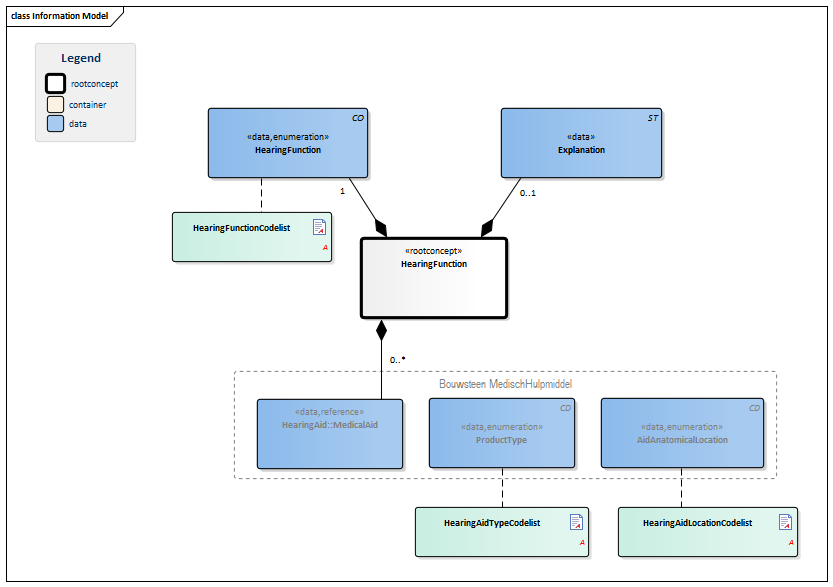

Information Model
| Type |
Id |
Concept |
Card. |
Definition |
DefinitionCode |
Reference
|
|
NL-CM:4.17.1
|
 HearingFunction
|
|
Root concept of the HearingFunction building block. This concept contains all data elements of the HearingFunction building block.
|
|
|
|
NL-CM:4.17.3
|
|
 HearingFunction
|
1
|
HearingFunction involves observing the presence of sounds and distinguishing between the location, pitch, volume and quality of sounds. This concept describes the presence of a disorder in this function and the extent of the disorder.
|
|
|
|
NL-CM:4.17.4
|
|
HearingAid::MedicalAid
|
0..*
|
The medical aid used to help the patient hear.
|
|
|
|
NL-CM:10.1.3
|
|
|
|
ProductType
|
|
The type of product used to help the patient hear.
|
|
|
|
|
NL-CM:10.1.6
|
|
|
|
AidAnatomicalLocation
|
|
The anatomical location of the hearing aid, such as: ‘left ear’.
|
|
|
|
NL-CM:4.17.2
|
|
Explanation
|
0..1
|
An explanation of the hearing function.
|
|
|
Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page
Example Instances
Only available in Dutch
| FunctieHoren
|
| HoorFunctie
|
Matige stoornis (25-49%)
|
| HorenHulpmiddel
|
| ProductType
|
Gehoorapparaat
|
| HulpmiddelAnatomischeLocatie
|
Linkeroor
|
|
|
| Toelichting
|
Door duidelijk articuleren en langzaam te praten kan patiënt redelijk verstaan.
|
References
1. International Classification of Functioning Disability and Health (ICF) [Online] Beschikbaar op:http:/www.rivm.nl/who-fic/icf.htm [Geraadpleegd: 13 februari 2015]
Valuesets
HearingAidLocationCodelist
| Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.4.17.3
|
Binding:
|
| Conceptname
|
Conceptcode
|
Codesystem name |
Codesystem OID
|
Description
|
| Left ear (body structure)
|
89644007
|
SNOMED CT
|
2.16.840.1.113883.6.96
|
Linkeroor
|
| Right ear (body structure)
|
25577004
|
SNOMED CT
|
2.16.840.1.113883.6.96
|
Rechteroor
|
| Both ears (body structure)
|
34338003
|
SNOMED CT
|
2.16.840.1.113883.6.96
|
Beide oren
|
HearingAidTypeCodelist
| Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.4.17.2
|
Binding:
|
| Conceptname
|
Conceptcode
|
Codesystem name |
Codesystem OID
|
Description
|
| Geen
|
0
|
Hulpmiddelen gehoor
|
2.16.840.1.113883.2.4.3.11.22.211
|
Geen
|
| Hearing aid
|
6012004
|
SNOMED CT
|
2.16.840.1.113883.6.96
|
Gehoorapparaat
|
HearingFunctionCodelist
| Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.4.17.1
|
Binding:
|
| Conceptname
|
Conceptcode
|
Codesystem name |
Codesystem OID
|
Description
|
| Geen stoornis
|
b230.0
|
ICF
|
2.16.840.1.113883.6.254
|
Stoornis 0-4%
|
| Lichte stoornis
|
b230.1
|
ICF
|
2.16.840.1.113883.6.254
|
Stoornis 5-24%
|
| Matige stoornis
|
b230.2
|
ICF
|
2.16.840.1.113883.6.254
|
Stoornis 25-49%
|
| Ernstige stoornis
|
b230.3
|
ICF
|
2.16.840.1.113883.6.254
|
Stoornis 50-95%
|
| Volledige stoornis
|
b230.4
|
ICF
|
2.16.840.1.113883.6.254
|
Stoornis 96-100%
|
This information model in other releases
Information model references
This information model refers to
This information model is used in
- --
Technical specifications in HL7v3 CDA and HL7 FHIR
To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:
- HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment
- HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR
Downloads
This information model is also available as pdf file
or as spreadsheet
About this information
The information in this wikipage is based on Registratie aan de bron publication 2015 including errata dd. 16-07-2015
Conditions for use are located on the mainpage
This page is generated on 24/12/2018 12:35:23 with ZibExtraction v. 3.0.6932.1989
