Attention!! This is not the most recent version of this information model. You can find the most recent version ''here''.

General information

Name: nl.zorg.FamilySituationChild NL.png
Version: 1.1
HCIM Status:Final
Release: 2017
Release status: Published
Release date: 31-12-2017

Back 16.png Back to HCIM list


DCM::CoderList Werkgroep RadB Verpleegkundige Gegevens
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList Werkgroep RadB Verpleegkundige Gegevens
DCM::CreationDate 2-5-2014
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Name PM
DCM::Id 2.16.840.1.113883.
DCM::KeywordList Gezinssamenstelling, gezinssituatie, verzorgers
DCM::LifecycleStatus Final
DCM::ModelerList Werkgroep RadB Verpleegkundige Gegevens
DCM::Name nl.zorg.GezinssituatieKind
DCM::PublicationDate 31-12-2017
DCM::PublicationStatus Published
DCM::ReviewerList Projectgroep RadB Verpleegkundige Gegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate 31-12-2017
DCM::Superseeds nl.zorg.GezinssituatieKind-v1.0
DCM::Version 1.1
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (04-09-2017)

Publicatieversie 1.1 (31-12-2017)

ZIB-646 Aanpassing SNOMED codes


Traditionally, a family is defined as a group of people of one or more adults who carry responsibility for caring for and raising one or more children.
Children can have multiple family situations when they live partly with their father and partly with their mother e.g. after a divorce.
Currently, the term is used more broadly for all forms of cohabitation which form a recognizable social unit, of people who are or who are not related and who have long-lasting, affective bonds and provide each other with support and care.


Information on the child’s family situation is important in determining the extent to which the child and its family need care and support.

Patient Population

The information model is meant for describing the family situation of children aged 0 to 18 years.

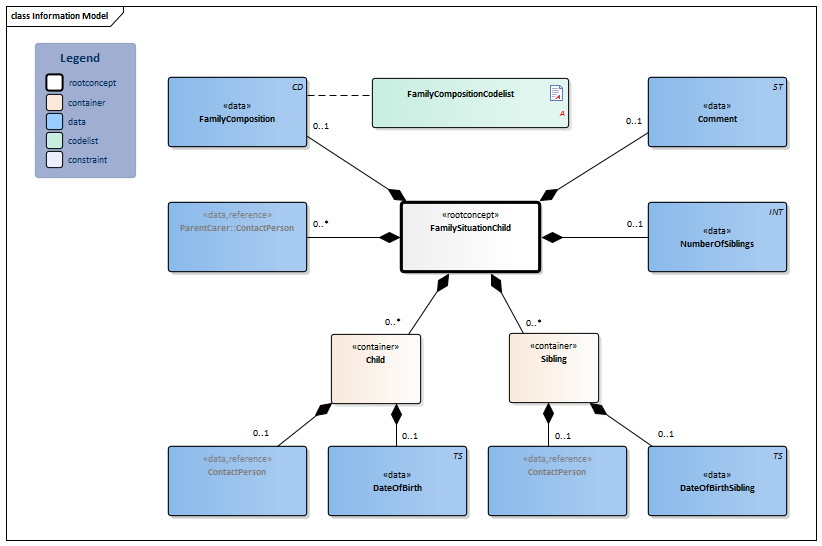

Information Model


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:7.16.1 Arrowdown.pngFamilySituationChild Root concept of the FamilySituationChild information model. This concept contains all data elements of the FamilySituationChild information model.
CD.png NL-CM:7.16.2 Arrowright.pngFamilyComposition 0..1 The family composition describes the cjhild’s home situation and the form of cohabitation.

A family can consist of one or more people.

365481000 Finding of household composition
List2.png FamilyCompositionCodelist
Verwijzing.png NL-CM:7.16.3 Arrowright.pngParentCarer::ContactPerson 0..* Person who has taken on the role of the child's caregiver in the family situation involved. This could be a parent or other family member.
Block.png ContactPerson
Folder.png NL-CM:7.16.4 Arrowdown.pngChild 0..* Container of the Child concept. This container contains all data elements of the Child concept.
67822003 Child
Verwijzing.png NL-CM:7.16.5 Arrowright.pngContactPerson 0..1 Child of the child receiving care
Block.png ContactPerson
TS.png NL-CM:7.16.6 Arrowright.pngDateOfBirth 0..1 The child’s date of birth.
21112-8 Birth date
INT.png NL-CM:7.16.7 Arrowright.pngNumberOfSiblings 0..1 Number of brothers and sisters of the child, living at the same house. Children in this context can be biological and adopted children, stepchildren and foster children.
Folder.png NL-CM:7.16.8 Arrowdown.pngSibling 0..* Container of the Sibling concept. This container contains all data elements of the Sibling concept.
Verwijzing.png NL-CM:7.16.9 Arrowright.pngContactPerson 0..1 Sister or brother, which is also part of concerning household. This includes not only biological siblings, but also half, step, foster and adoptive siblings
375005 Sibling
Block.png ContactPerson
TS.png NL-CM:7.16.10 Arrowright.pngDateOfBirthSibling 0..1 Date of birth of the sister or brother.
21112-8 Birth date
ST.png NL-CM:7.16.11 Arrowright.pngComment 0..1 A comment on the family situation.
48767-8 Annotation comment

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

Gezinssamenstelling Woont bij moeder
AantalBroersEnZussen 2
Ouder/Verzorger (Contactpersoon)
Relatie Moeder
Geslachtsnaam Smith
Voornaam Carola
EmailSoort Privé e-mailadres
Ouder/Verzorger (Contactpersoon)
Relatie Stiefvader
Geslachtsnaam Vix
Voornaam Peter
GeboortedatumZusBroer 02-02-2013
ZusOfBroer (ContactPersoon)
Relatie Broer
Roepnaam Javier
GeboortedatumZusBroer 20-12-2009
ZusOfBroer (ContactPersoon)
Relatie Stiefzus
Roepnaam Janine
Toelichting -


If the child has multiple family situations, e.g. as a result of a divorce or due to part-time residence in an institution, information about these situations can be provided by multiple use of the information model. By indicating if the mother or father is involved in the described context, it becomes clear with whom the child lives in that situation.



Valueset OID: 2.16.840.1.113883. Binding:
Conceptname Conceptcode Codesystem name Codesystem OID Description
Lives with mother 224139006 SNOMED CT 2.16.840.1.113883.6.96 Woont bij moeder
Lives with father 224140008 SNOMED CT 2.16.840.1.113883.6.96 Woont bij vader
Lives with grandparents 224141007 SNOMED CT 2.16.840.1.113883.6.96 Woont bij grootouders
Lives with parents 224137008 SNOMED CT 2.16.840.1.113883.6.96 Woont bij ouders
Lives with foster parents 32331000146101 SNOMED CT 2.16.840.1.113883.6.96 Woont bij pleegouders
Lives with relatives 160756002 SNOMED CT 2.16.840.1.113883.6.96 Woont samen met familie
Lives in supported home 224220007 SNOMED CT 2.16.840.1.113883.6.96 Woont in gezinsvervangend tehuis
Living in institution for disabled care 29221000146100 SNOMED CT 2.16.840.1.113883.6.96 Woont in instelling voor gehandicaptenzorg
Living in institution for mental health care 29231000146103 SNOMED CT 2.16.840.1.113883.6.96 Woont in instelling voor geestelijke gezondheidszorg
Lives in a childrens home 160738002 SNOMED CT 2.16.840.1.113883.6.96 Woont in kindertehuis
Lives in boarding school 307106009 SNOMED CT 2.16.840.1.113883.6.96 Woont in internaat
Other OTH NullFlavor 2.16.840.1.113883.5.1008 Anders

This information model in other releases

Information model references

This information model refers to

This information model is used in


Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png


This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Release 2017
Conditions for use are located on the mainpage List2.png
This page is generated on 21/12/2018 14:47:35 with ZibExtraction v. 3.0.6929.24609
