General information

Name: nl.zorg.EpisodeOfCare NL.png
Version: 1.0
HCIM Status:Final
Release: 2024
Release status: Prepublished
Release date: 15-04-2024


Back 16.png Back to HCIM list

Metadata

DCM::CoderList *
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList *
DCM::CreationDate 15-6-2020
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name *
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.16.6
DCM::KeywordList
DCM::LifecycleStatus Final
DCM::ModelerList *
DCM::Name nl.zorg.ZorgEpisode
DCM::PublicationDate 15-04-2024
DCM::PublicationStatus Prepublished
DCM::ReviewerList
DCM::RevisionDate
DCM::Supersedes *
DCM::Version 1.0
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (01-09-2020).

Concept

The period in which a health problem, such as a complaint or illness, receives attention from a care provider. During this period the designation of this health problem can change due to evolving insight and/or the progress of the illness. An episode of care serves as a context for all data related to the health problem.

Purpose

Designation of a health problem requiring care, and facilitation of a good overview of course and treatment on the basis of data, relevant to the health problem. The episode of care can be useful in many disciplines of care, but is currently mainly in use in general practice.

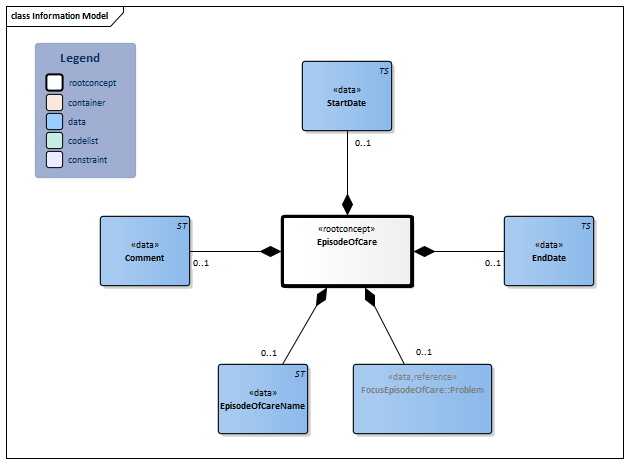

Information Model




Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:16.6.1 Arrowdown.pngEpisodeOfCare Root concept of the EpisodeOfCare information model.This root concept contains all data elements of the EpisodeOfCare information model.
TS.png NL-CM:16.6.2 Arrowright.pngStartDate 0..1 The date that marks the beginning of the episode of care. Usually this is the date of the first contact of the patient with the care provider in the context of the health problem.
413946009 Date treatment started
TS.png NL-CM:16.6.3 Arrowright.pngEndDate 0..1 The date that marks the end of the episode of care. This can be the date of the last contact of the patient with the care provider in the context of the health problem, but also thereafter on the basis of hindsight.
413947000 Date treatment stopped
Verwijzing.png NL-CM:16.6.4 Arrowright.pngFocusEpisodeOfCare::Problem 0..1 The health problem on which the episode of care focuses.
Block.png Problem
ST.png NL-CM:16.6.5 Arrowright.pngEpisodeOfCareName 0..1 A name that characterizes the episode of care for the care provider.
ST.png NL-CM:16.6.6 Arrowright.pngComment 0..1 Additional information about the episode of care that the care provider wishes to see at first glance.
48767-8 Annotation comment [Interpretation] Narrative

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

Zorgepisode (d.d. 05/04/2014)
begindatum einddatum zorgEpisodeLabel Toelichting
05/04/2014 - - gestoorde glucose
FocusEpisodeNaam::Probleem
ProbleemType ProbleemNaam ProbleemBeginDatum
Bevinding A91.05 | Gestoorde glucosetolerantie 05/04/2014
Zorgepisode (d.d. 21/05/2014)
Begindatum Einddatum ZorgEpisodeNaam Toelichting
05/04/2014 - - de novo diabetes
FocusEpisodeNaam::Probleem
ProbleemType ProbleemNaam ProbleemBeginDatum
Diagnose T90.02 | Diabetes Mellitus type 2 21/05/2014
Zorgepisode (d.d. 02/07/2014)
Begindatum Einddatum ZorgEpisodeNaam Toelichting
05/04/2014 - - diabetes
FocusEpisodeNaam::Probleem
ProbleemType ProbleemNaam ProbleemBeginDatum
Diagnose T90.02 | Diabetes Mellitus type 2 21/05/2014
Zorgepisode ( d.d. 08/07/2020)
Begindatum Einddatum ZorgEpisodeNaam Toelichting
05/04/2014 slecht instelbaar DM, cave hypo's niet te strak instellen op insuline
FocusEpisodeNaam::Probleem
ProbleemType ProbleemNaam ProbleemBeginDatum
Diagnose T90.02 | Diabetes Mellitus type 2 21/05/2014
* Voorbeeld is weergave van een ZorgEpisode op verschillende momenten van het bestaan van de episode.

This information model in other releases

Information model references

This information model refers to

This information model is used in

--

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.<BR> Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Prerelease 2024-1
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms versie: 20240331 [R] (maart 2024-editie)
  • LOINC version 2.77

Conditions for use are located on the mainpage List2.png
This page is generated on 25/04/2024 12:43:34 with ZibExtraction v. 9.3.8880.19756
