DrugUse-v3.0(2016EN)
Inhoud
- 1 General information
- 2 Metadata
- 3 Revision History
- 4 Concept
- 5 Purpose
- 6 Evidence Base
- 7 Information Model
- 8 Example Instances
- 9 Issues
- 10 Valuesets
- 11 This information model in other releases
- 12 Information model references
- 13 Technical specifications in HL7v3 CDA and HL7 FHIR
- 14 Downloads
- 15 About this information
General information
Name: nl.zorg.DrugUse
Version: 3.0
HCIM Status:Final
Release: 2016
Release status: Published
Release date: 1-5-2016
Metadata
| DCM::CoderList | Kerngroep Registratie aan de Bron |
| DCM::ContactInformation.Address | * |
| DCM::ContactInformation.Name | * |
| DCM::ContactInformation.Telecom | * |
| DCM::ContentAuthorList | Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron |
| DCM::CreationDate | |
| DCM::DeprecatedDate | |
| DCM::DescriptionLanguage | nl |
| DCM::EndorsingAuthority.Address | |
| DCM::EndorsingAuthority.Name | PM |
| DCM::EndorsingAuthority.Telecom | |
| DCM::Id | 2.16.840.1.113883.2.4.3.11.60.40.3.7.4 |
| DCM::KeywordList | drugsgebruik, verdovende middelen, middelen gebruik, drugs |
| DCM::LifecycleStatus | Final |
| DCM::ModelerList | Kerngroep Registratie aan de Bron |
| DCM::Name | nl.zorg.DrugsGebruik |
| DCM::PublicationDate | 1-5-2016 |
| DCM::PublicationStatus | Published |
| DCM::ReviewerList | Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron |
| DCM::RevisionDate | 16-7-2015 |
| DCM::Superseeds | nl.nfu.DrugsGebruik-v1.2.2 |
| DCM::Version | 3.0 |
| HCIM::PublicationLanguage | EN |
Revision History
Only available in Dutch
Publicatieversie 1.0 (15-02-2013)
Publicatieversie 1.1 (01-07-2013)
Publicatieversie 1.2 (01-04-2015)
| ZIB-138 | Aanpassingen in SNOMED CT codes en omschrijvingen voor codelijst DrugsGebruikStatusCodelijst n.a.v. review terminologie expert. |
| ZIB-139 | Aanpassingen in SNOMED CT codes en omschrijvingen voor codelijst DrugsOfGeneesmiddelSoortCodelijst n.a.v. review terminologie expert. |
| ZIB-158 | Cardinaliteit SoortMiddel aanpassen in bouwsteen OverdrachtDrugsgebruik |
| ZIB-161 | Het concept Hoeveelheid van bouwsteen OverdrachtDrugsgebruik. |
| ZIB-167 | Bevindingen Concept inrichting Intoxicatie Roken/ Alcohol en Drugs in EZIS.NET |
| ZIB-224 | In de klinische bouwsteen OverdrachtDrugsgebruik, concept SoortMiddel komt tagged value DrugsOfGeneesmiddelSoortCodelijst niet overeen met naam gekoppelde valueset DrugsOfGeneesmiddelSoort. |
| ZIB-225 | In de klinische bouwsteen OverdrachtDrugsgebruik, concept ToedieningsWeg komt tagged value ToedieningsWegCodelijst niet overeen met naam gekoppelde valueset. |
| ZIB-308 | Prefix Overdracht weggehaald bij de generieke bouwstenen |
| ZIB-312 | aanpassing paragraaf 'Concept' |
| ZIB-313 | Aanpassen paragraaf 'Purpose' |
| ZIB-316 | Paragraaf 'Evidence base' wijzigen |
| ZIB-319 | Wijzing paragraaf Constraint |
Incl. algemene wijzigingsverzoeken:
| ZIB-94 | Aanpassen tekst van Disclaimer, Terms of Use & Copyrights |
| ZIB-154 | Consequenties opsplitsing Medicatie bouwstenen voor overige bouwstenen. |
| ZIB-200 | Naamgeving SNOMED CT in tagged values klinische bouwstenen gelijk getrokken. |
| ZIB-201 | Naamgeving OID: in tagged value notes van klinische bouwstenen gelijk getrokken. |
| ZIB-309 | EOI aangepast |
| ZIB-324 | Codelijsten Name en Description beginnen met een Hoofdletter |
| ZIB-326 | Tekstuele aanpassingen conform de kwaliteitsreview kerngroep 2015 |
Publicatieversie 1.2.1 (22-05-2015)
| ZIB-388 | De ToedieningswegCodelijst heeft geen "OID: " aanduiding in de onderliggende codelijst. |
Publicatieversie 1.2.2 (16-07-2015)
| ZIB-418 | Vervallen SNOMED CT code in DrugsOfGeneesmiddelSoortCodelijst |
Publicatieversie 3.0 (01-05-2016)
.
Concept
Drugs (or: narcotics, amphetamines, intoxicants, highs, hallucinogenics, illegal substances or dope) is a collective term for drugs and chemical substances with a more or less ‘drugging' (anesthetic, boosting and/or hallucinogenic) effect and which can lead to addiction. Drug [Online] Available at: nl.Wikipedia.org/wiki/drug [Accessed: 11 February 2015].
This information model describes the information asked of the patient about their drug use.
Purpose
Documenting and sharing registration of the drug use, as described in the concept.
Evidence Base
Though this information model can also be used to abuse (the patient’s own) medication, the project group eventually decided to focus on the transfer of information on drug use, as described in the concept.
Seeing as there is a large variety of ways to record the amount of drugs used, we decided that this part is to be entered as free text.

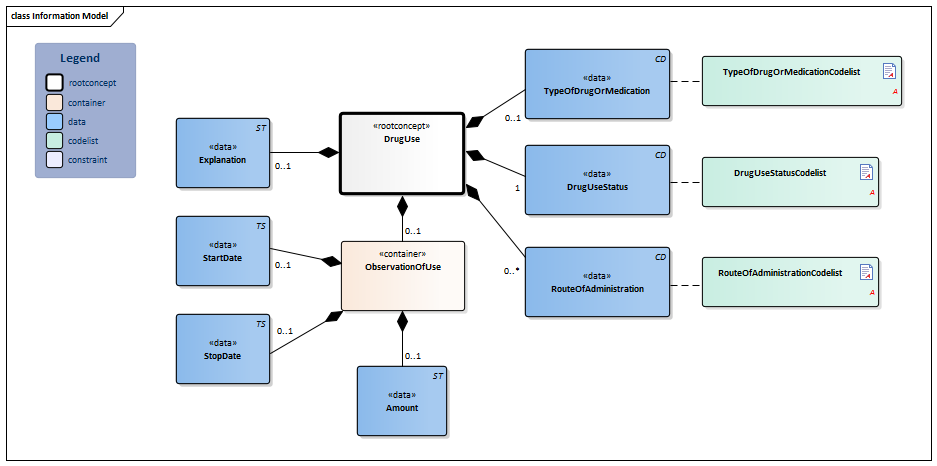

Information Model
| Type | Id | Concept | Card. | Definition | DefinitionCode | Reference | |||||||
|
NL-CM:7.4.1 |  DrugUse
|
Root concept of the DrugUse information model. This concept contains all data elements of the DrugUse information model. | ||||||||||
|
NL-CM:7.4.5 | ObservationOfUse
|
0..1 | Container for ObservationOfUse. This container contains all data elements of the ObservationOfUse container. | |||||||||
|
NL-CM:7.4.6 |  StartDate
|
0..1 | The date on which the patient started using. | |||||||||
|
|
NL-CM:7.4.7 | StopDate
|
0..1 | The date on which the patient quit using | |||||||||
|
NL-CM:7.4.8 | Amount
|
0..1 | The number of units (pills, joints, shots etc.) per day, week, month or year or the frequency of use. | |||||||||
|
|
NL-CM:7.4.9 | Explanation
|
0..1 | Relevant comments on the drug use. | |||||||||
|
NL-CM:7.4.2 | TypeOfDrugOrMedication
|
0..1 | Type of drug used by the patient. |
| ||||||||
|
|
NL-CM:7.4.3 | DrugUseStatus
|
1 | Indication stating whether there was any drug use in the past or present. |
| ||||||||
|
|
NL-CM:7.4.4 | RouteOfAdministration
|
0..* | The way the drugs are used. |
| ||||||||
Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page
Example Instances
Only available in Dutch
| Soort Middel | Drugs Gebruik Status | Start datum | Stop datum | Toedieningsweg | Hoeveelheid | Toelichting |
| XTC | misbruikt drugs | 1985 | oraal | 2x per maand | Op feestjes en in uitgaanscircuit. Vroeger wat meer dan tegenwoordig. | |
| Soort Middel | Drugs Gebruik Status | Start datum | Stop datum | Toedieningsweg | Hoeveelheid | Toelichting |
| Heroïne | heeft in het verleden drugs gebruikt | 1970 | 1985 | intraveneus | 3x per week |
Issues
Valuesets
DrugUseStatusCodelist
| Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.7.4.2 | Binding: |
| Conceptname | Conceptcode | Codesystem name | Codesystem OID | Description |
| Misuses drugs (finding) | 361055000 | SNOMED CT | 2.16.840.1.113883.6.96 | misbruikt drugs |
| Has never misused drugs | 228368007 | SNOMED CT | 2.16.840.1.113883.6.96 | heeft nooit drugs misbruikt |
| Misused drugs in past (finding) | 44870007 | SNOMED CT | 2.16.840.1.113883.6.96 | heeft in het verleden drugs gebruikt |
RouteOfAdministrationCodelist
| Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.7.4.3 | Binding: |
| Conceptname | Conceptcode | Codesystem name | Codesystem OID | Description |
| ORAAL | 9 | G-Standaard Toedieningswegen | 2.16.840.1.113883.2.4.4.9 | oraal |
| NASAAL | 6 | G-Standaard Toedieningswegen | 2.16.840.1.113883.2.4.4.9 | nasaal (snuiven) |
| INHALATIE | 62 | G-Standaard Toedieningswegen | 2.16.840.1.113883.2.4.4.9 | Inhalatie (roken) |
| INTRAVENEUS | 5 | G-Standaard Toedieningswegen | 2.16.840.1.113883.2.4.4.9 | Intraveneus (spuiten) |
| Other | OTH | NullFlavor | 2.16.840.1.113883.5.1008 | Anders |
TypeOfDrugOrMedicationCodelist
| Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.7.4.1 | Binding: |
| Conceptname | Conceptcode | Codesystem name | Codesystem OID | Description |
| Heroin (substance) | 387341002 | SNOMED CT | 2.16.840.1.113883.6.96 | Heroïne |
| Benzodiazepine (substance) | 372664007 | SNOMED CT | 2.16.840.1.113883.6.96 | Benzodiazepine |
| Methadone (substance) | 387286002 | SNOMED CT | 2.16.840.1.113883.6.96 | Methadon |
| Hydroxybutyric acid (substance) | 62821004 | SNOMED CT | 2.16.840.1.113883.6.96 | GHB |
| Cocaine (substance) | 387085005 | SNOMED CT | 2.16.840.1.113883.6.96 | Cocaïne |
| Cocaine freebase (substance) | 229003004 | SNOMED CT | 2.16.840.1.113883.6.96 | Crack, base coke |
| Methylenedioxymethamphetamine (substance) | 288459003 | SNOMED CT | 2.16.840.1.113883.6.96 | MDMA |
| Amphetamine (substance) | 703842006 | SNOMED CT | 2.16.840.1.113883.6.96 | Amfetamine, speed |
| Cannabis (substance) | 398705004 | SNOMED CT | 2.16.840.1.113883.6.96 | Cannabis, wiet marihuana, hasj |
| Hallucinogenic mushrooms (substance) | 229006007 | SNOMED CT | 2.16.840.1.113883.6.96 | Paddos |
| Lysergic acid diethylamide (substance) | 15698006 | SNOMED CT | 2.16.840.1.113883.6.96 | LSD |
| Ketamine (substance) | 373464007 | SNOMED CT | 2.16.840.1.113883.6.96 | Ketamine |
| Phencyclidine (substance) | 9721008 | SNOMED CT | 2.16.840.1.113883.6.96 | PCP |
| Methamphetamine (substance) | 387499002 | SNOMED CT | 2.16.840.1.113883.6.96 | Crystal meth, methamfetamine |
| Anabolic steroid (substance) | 111151007 | SNOMED CT | 2.16.840.1.113883.6.96 | Anabole steroïde |
| Laxative (substance) | 372800002 | SNOMED CT | 2.16.840.1.113883.6.96 | Laxans |
| Other | OTH | NullFlavor | 2.16.840.1.113883.5.1008 | Anders |
This information model in other releases
- Release 2015, (Version 1.2.2)
- Release 2017, (Version 3.2)
- Prerelease 2018-2, (Version 3.2)
- Prerelease 2019-2, (Version 3.2)
- Release 2020, (Version 3.3)
- Prerelease 2021-2, (Version 3.4)
- Prerelease 2022-1, (Version 3.4)
- Prerelease 2023-1, (Version 3.4.1)
- Prerelease 2024-1, (Version 3.5)
Information model references
This information model refers to
- --
This information model is used in
- --
Technical specifications in HL7v3 CDA and HL7 FHIR
To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:
- HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment
- HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR
Downloads
This information model is also available as pdf file
or as spreadsheet
About this information
The information in this wikipage is based on Release summer 2016
Conditions for use are located on the mainpage
This page is generated on 21/12/2018 15:38:48 with ZibExtraction v. 3.0.6929.24609
