Attention!! This is not the most recent version of this information model. You can find the most recent version ''here''.

General information

Name: nl.zorg.AllergyIntolerance NL.png
Version: 4.0
HCIM Status:Final
Release: 2022
Release status: Prepublished
Release date: 10-06-2022

Back 16.png Back to HCIM list

Metadata

DCM::CoderList Kerngroep Registratie aan de Bron
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron
DCM::CreationDate 15-12-2014
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name PM
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.8.2
DCM::KeywordList Allergie, Overgevoeligheid
DCM::LifecycleStatus Final
DCM::ModelerList Kerngroep Registratie aan de Bron
DCM::Name nl.zorg.AllergieIntolerantie
DCM::PublicationDate 10-06-2022
DCM::PublicationStatus Prepublished
DCM::ReviewerList Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate 17-11-2021
DCM::Supersedes nl.zorg.AllergieIntolerantie-v3.3
DCM::Version 4.0
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (01-04-2015)

ZIB-109 Onduidelijk wat wel/niet onderdeel uitmaakt van bouwsteen OverdrachtAlert; definities aanpassen
ZIB-111 Wijzigingsverzoek OverdrachtAlert ReactieOmschrijvingCodelijst: Angst toevoegen en Bronchospasme vervangen in Kortademigheid
ZIB-151 Aanpassingen in SNOMED CT codes en omschrijvingen voor codelijst ReactieOmschrijvingCodelijst n.a.v. review terminologie expert.
ZIB-308 Prefix Overdracht weggehaald bij de generieke bouwstenen
ZIB-352 Opsplitsen bouwsteen OverdrachtAlert
ZIB-353 Tagged values DCM::CodeSystem aanpassen naar DCM::ValueSet incl. gekoppelde codelijst.

Incl. algemene wijzigingsverzoeken:

ZIB-94 Aanpassen tekst van Disclaimer, Terms of Use & Copyrights
ZIB-154 Consequenties opsplitsing Medicatie bouwstenen voor overige bouwstenen.
ZIB-200 Naamgeving SNOMED CT in tagged values klinische bouwstenen gelijk getrokken.
ZIB-201 Naamgeving OID: in tagged value notes van klinische bouwstenen gelijk getrokken.
ZIB-309 EOI aangepast
ZIB-324 Codelijsten Name en Description beginnen met een Hoofdletter
ZIB-326 Tekstuele aanpassingen conform de kwaliteitsreview kerngroep 2015

Publicatieversie 1.0.1 (22-05-2015)

ZIB-380 Newline in codelijstnaam van SpecifiekeStofSNKCodelijst.
ZIB-373 Codelijsten AllergieCategorieCodelijst en AllergieStatusCodelijst uit nl.nfu.AllergieIntolerantie-v1.0 hebben dezelfde OID.

Publicatieversie 1.0.2 (16-07-2015)

ZIB-417 Onjuiste SNOMED CT code in SymptoomCodelijst.

Publicatieversie 3.0 (01-05-2016)

ZIB-425 Code voor het concept 'Waarschijnlijkheid' toewijzen.
ZIB-453 Wijziging naamgeving ZIB's en logo's door andere opzet van beheer

Publicatieversie 3.1 (04-09-2017)

ZIB-426 Code voor het concept 'ReactieDuur' toewijzen.
ZIB-427 Code voor het concept 'MateVanKritiekZijn' toewijzen.
ZIB-482 Geen informatie
ZIB-487 AllergieIntolerantie.Waarschijnlijkheid "Zeker niet" uitleg gevraagd
ZIB-499 Geen informatie
ZIB-500 Heroverweeg WaarschijnlijkheidCodelijst
ZIB-564 Aanpassing/harmonisatie Engelse conceptnamen

Publicatieversie 3.2 (31-12-2017)

ZIB-610 SpecifiekeStofAllergeneStoffenCodelijst beperken

Publicatieversie 3.3 (06-07-2019)

ZIB-732 Een aantal Snomed codes blijken bij nadere controle invalide. Een aantal andere codes zijn inmiddels Inactive verklaard in SNOMED
ZIB-734 Geen informatie
ZIB-823 Veld 'Reactieduur' nog in example bij zib AllergieIntolerantie

Publicatieversie 4.0 (01-12-2021)

ZIB-953 ZIB allergie
ZIB-1322 Kardinaliteit zib Overige overgevoeligheden
ZIB-1330 Verwijderen van LaatsteReactieDatumTijd
ZIB-1341 Inhoud AllergieStatusCodelijst
ZIB-1575 Deprecated termen en waardelijsten uit de prepublicatie halen

Concept

An allergy or intolerance describes a patient’s tendency towards hypersensitivity to a certain substance, so that an unwanted physiological reaction is expected after exposure to the substance, while most people would not exhibit such a reaction to that amount. The observed physiological changes are usually the result of an immunological reaction.
The substances can be categorized as follows:

  • Medicine
  • Medicine category
  • Ingredient/addition
  • Nutrition
  • Environmental factor
  • Animal
  • Plants
  • Chemicals
  • Inhaled allergenic

Purpose

Documenting and communicating allergies and intolerances is an important part of medical registration. It concerns the core of patient safety in general and medication safety in particular. In the execution of research, treatment and care, these patient characteristics constantly have to be taken into account.
In principle, allergies and intolerances are also disorders and also could be entered as a problem. Nevertheless, these are usually entered separately.
Allergies/Intolerances have a lot in common with warnings (Alert). An important difference is that with allergies and intolerances, a lot of detailed information is recorded on things such as the reactions to the causative substance. Furthermore, not every warning is a problem or medical condition. Every allergy/intolerance is, however, while not every allergy or intolerance implies a warning.

Evidence Base

For all allergies in the Netherlands, the codes available in the G standard are used to register and complete medicinal allergies in the work process of prescribers and pharmacists (in medication monitoring). This is outlined in the document “Allergies and unwanted substances IR V-2-3-1”.

This code is insufficient when it comes to reactions to exposure to food products, items (such as bandages and band-aids), plants and animals. For these items, the standard allows the use of free text or the use of SNOMED CT code. However, no validated value set is currently available for this purpose for SNOMED CT.

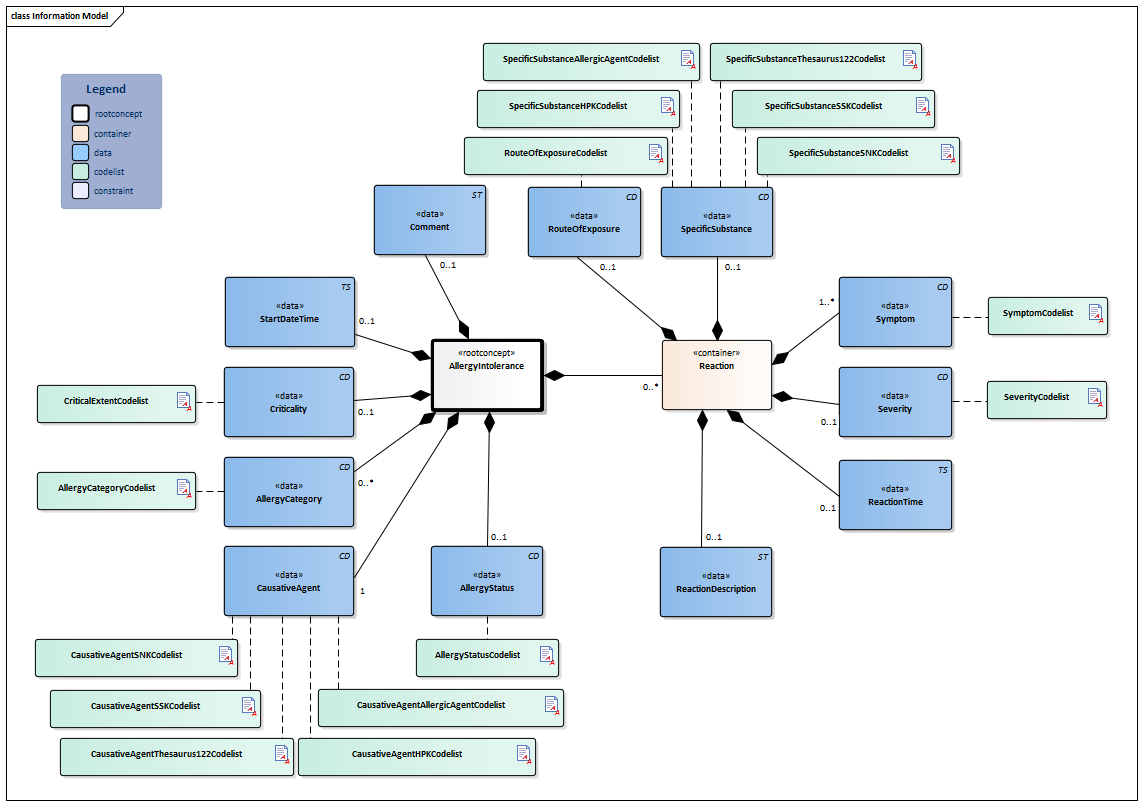

Information Model


#11820#11824#11816#11836#AllergyStatusCodelist#AllergyCategoryCodelist#CriticalExtentCodelist#11823#11827#11813#11821#SymptomCodelist#SeverityCodelist#11814#11826#11835#11833#11815#11830#SpecificSubstanceSSKCodelist#SpecificSubstanceSNKCodelist#SpecificSubstanceThesaurus122Codelist#RouteOfExposureCodelist#CausativeAgentSSKCodelist#CausativeAgentSNKCodelist#CausativeAgentThesaurus122Codelist#SpecificSubstanceAllergicAgentCodelist#CausativeAgentAllergicAgentCodelist#SpecificSubstanceHPKCodelist#CausativeAgentHPKCodelistAllergyIntolerance-v4.0Model(2022EN).png


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:8.2.1 Arrowdown.pngAllergyIntolerance Root concept of the AllergyIntolerance information model. This root concept contains all data elements of the AllergyIntolerance information model.
CD.png NL-CM:8.2.2 Arrowright.pngCausativeAgent 1 Substance, group of substances or environmental factor to which the patient is allergic or hypersensitive.
List2.png CausativeAgentAllergicAgentCodelist
List2.png CausativeAgentHPKCodelist
List2.png CausativeAgentSNKCodelist
List2.png CausativeAgentSSKCodelist
List2.png CausativeAgentThesaurus122Codelist
CD.png NL-CM:8.2.4 Arrowright.pngAllergyCategory 0..* Identifies the allergy category such as medication, food or environment.
List2.png AllergyCategoryCodelist
CD.png NL-CM:8.2.5 Arrowright.pngAllergyStatus 0..1 Statement on the status of the patient’s hypersensitivity.
List2.png AllergyStatusCodelist
TS.png NL-CM:8.2.6 Arrowright.pngStartDateTime 0..1 The date and time at which the allergy or undesired reaction was determined.

This can be an exact date and time, or a rough indication of the date (such as only the year, or the month and the year).

CD.png NL-CM:8.2.7 Arrowright.pngCriticality 0..1 Critical extent is defined as “the potential severity of future reactions.”

This represents a clinical evaluation of the worst case scenario for a future reaction. It can be based on the severity of past reactions, the dose and manner of exposure which caused reactions in the past, and the life-threatening potential of the type of reaction. Critical extent is a property of the allergy, and not of the reaction itself.

246112005 Severity
List2.png CriticalExtentCodelist
ST.png NL-CM:8.2.9 Arrowright.pngComment 0..1 Textual explanation of the hypersensitivity which cannot be entered in any of the other fields.
48767-8 Annotation comment [Interpretation] Narrative
Folder.png NL-CM:8.2.10 Arrowdown.pngReaction 0..* Container of the Reaction concept. This container contains all data elements of the Reaction concept.
CD.png NL-CM:8.2.11 Arrowright.pngSymptom 1..* The content specifications of the reaction that takes place when the patient is exposed to the causative substance.
List2.png SymptomCodelist
CD.png NL-CM:8.2.12 Arrowright.pngSpecificSubstance 0..1 More specific indication of the substance that caused the reaction. This can be a specific substance from a group of substances to which the patient is allergic or hypersensitive.
List2.png SpecificSubstanceAllergicAgentCodelist
List2.png SpecificSubstanceHPKCodelist
List2.png SpecificSubstanceSNKCodelist
List2.png SpecificSubstanceSSKCodelist
List2.png SpecificSubstanceThesaurus122Codelist
ST.png NL-CM:8.2.13 Arrowright.pngReactionDescription 0..1 Textual description of the reaction as a whole.
CD.png NL-CM:8.2.14 Arrowright.pngSeverity 0..1 The severity of the reaction as a result of exposure to the causative substance.
List2.png SeverityCodelist
CD.png NL-CM:8.2.15 Arrowright.pngRouteOfExposure 0..1 Way in which the patient came into contact with the causative agent or the way in which the agent was administered.
List2.png RouteOfExposureCodelist
TS.png NL-CM:8.2.17 Arrowright.pngReactionTime 0..1 Date and time at which the reaction took place. This may also be just the date or a partial date, in the event that the exact date is unknown.

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

AllergieIntolerantie
VeroorzakendeStof Bijengif Penicilline
AllergieCategorie Stof of product Medicijn
AllergieStatus Actief Actief
MateVanKritiekZijn Ernstig Ernstig
BeginDatumTijd 08-11-2008 1995
LaatsteReactieDatumTijd 15-11-2009 02-06-1998
Toelichting - -
Reactie
Symptoom Misselijk en braken Exantheem
ReactieBeschrijving - -
Ernst Ernstig Matig ernstig
ReactieTijdstip - 02-06-1998
WijzeVanBlootstelling - Oraal
SpecifiekeStof - Amoxicilline

Issues

No known allergies The question is whether to offer a code for "No known allergies (SNOMED CT 160244002)" and subdirectories in this information model that fall under this code, or to determine that, where applicable, the document should outline when the information model is to be applied.
Value set for the ‘Causative substance’ concept Currently, no defined code list is yet available for allergenic substances other than medication. Entering SNOMED CT must therefore suffice to code allergenic substances for the time-being. The G standard is used to code medical products.

References

1. Z-INDEX. (2011) Allergieën en ongewenste middelen [Online] v. R V-2-3-1 Beschikbaar op: http://www.z-index.nl/g-standaard/beschrijvingen/functioneel/wijzigingen/mb/bewaking-op-allergie/IR%20Allergieen%20V%202-1-1.pdf [Geraadpleegd: 15 oktober 2014]

2. HL7 FHIR Resource AllergyIntolerance. [Online] Continuous Build. Beschikbaar op: http://hl7-fhir.github.io/allergyintolerance.html [Geraadpleegd: 12 maart 2014]

Valuesets

AllergyCategoryCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.8.2.2 Binding: Required
Conceptname Conceptcode Codesystem name Codesystem OID Description
Propensity to adverse reactions to food 418471000 SNOMED CT 2.16.840.1.113883.6.96 Voedingsallegeen
Propensity to adverse reactions to drug 419511003 SNOMED CT 2.16.840.1.113883.6.96 Geneesmiddel
Propensity to adverse reaction to contact allergen 157531000146101 SNOMED CT 2.16.840.1.113883.6.96 Contactallergeen
Propensity to adverse reaction to inhalation allergen 157521000146103 SNOMED CT 2.16.840.1.113883.6.96 Inhalatieallergeen
Propensity to adverse reaction to occupational allergen 157541000146109 SNOMED CT 2.16.840.1.113883.6.96 Beroepsallergeen
Propensity to adverse reaction to insect venom 157511000146108 SNOMED CT 2.16.840.1.113883.6.96 Insectengifallergeen

AllergyStatusCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.8.2.3 Binding: Required
Conceptname Conceptcode Codesystem name Codesystem OID Description
Active 55561003 SNOMED CT 2.16.840.1.113883.6.96 Actief
Inactive 73425007 SNOMED CT 2.16.840.1.113883.6.96 Niet meer aanwezig

CausativeAgentAllergicAgentCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.8.2.17 Binding: Required
Conceptname Codesystem name Codesystem OID
SNOMED CT: ^98061000146100|Dutch total non-drug allergen simple reference set| SNOMED CT 2.16.840.1.113883.6.96

CausativeAgentHPKCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.8.2.19 Binding: Required
Conceptname Codesystem name Codesystem OID
Alle waarden G-Standaard Handels Product Kode (HPK) 2.16.840.1.113883.2.4.4.7

CausativeAgentSNKCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.8.2.14 Binding: Required
Conceptname Codesystem name Codesystem OID
Alle waarden G-standaard Stofnaamcode (SNK) 2.16.840.1.113883.2.4.4.1.750

CausativeAgentSSKCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.8.2.13 Binding: Required
Conceptname Codesystem name Codesystem OID
Alle waarden G-standaard Stofnaamcode i.c.m. toedieningsweg (SSK) 2.16.840.1.113883.2.4.4.1.725

CausativeAgentThesaurus122Codelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.8.2.15 Binding: Required
Conceptname Codesystem name Codesystem OID
Alle waarden G-standaard Ongewenste medicatiegroepen 2.16.840.1.113883.2.4.4.1.902.122

CriticalExtentCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.8.2.4 Binding: Required
Conceptname Conceptcode Codesystem name Codesystem OID Description
Mild 255604002 SNOMED CT 2.16.840.1.113883.6.96 Licht
Moderate 6736007 SNOMED CT 2.16.840.1.113883.6.96 Matig
Severe 24484000 SNOMED CT 2.16.840.1.113883.6.96 Ernstig
Fatal 399166001 SNOMED CT 2.16.840.1.113883.6.96 Fataal

RouteOfExposureCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.8.2.12 Binding: Required
Conceptname Codesystem name Codesystem OID
SNOMED CT: <284009009|Route of administration value| SNOMED CT 2.16.840.1.113883.6.96

SeverityCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.8.2.6 Binding: Required
Conceptname Conceptcode Codesystem name Codesystem OID Description
Mild 255604002 SNOMED CT 2.16.840.1.113883.6.96 Licht
Moderate 6736007 SNOMED CT 2.16.840.1.113883.6.96 Matig
Severe 24484000 SNOMED CT 2.16.840.1.113883.6.96 Ernstig

SpecificSubstanceAllergicAgentCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.8.2.16 Binding: Required
Conceptname Codesystem name Codesystem OID
SNOMED CT: ^98061000146100|Dutch total non-drug allergen simple reference set| SNOMED CT 2.16.840.1.113883.6.96

SpecificSubstanceHPKCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.8.2.18 Binding: Required
Conceptname Codesystem name Codesystem OID
Alle waarden G-Standaard Handels Product Kode (HPK) 2.16.840.1.113883.2.4.4.7

SpecificSubstanceSNKCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.8.2.10 Binding: Required
Conceptname Codesystem name Codesystem OID
Alle waarden G-standaard Stofnaamcode (SNK) 2.16.840.1.113883.2.4.4.1.750

SpecificSubstanceSSKCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.8.2.9 Binding: Required
Conceptname Codesystem name Codesystem OID
Alle waarden G-standaard Stofnaamcode i.c.m. toedieningsweg (SSK) 2.16.840.1.113883.2.4.4.1.725

SpecificSubstanceThesaurus122Codelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.8.2.11 Binding: Required
Conceptname Codesystem name Codesystem OID
Alle waarden G-standaard Ongewenste medicatiegroepen 2.16.840.1.113883.2.4.4.1.902.122

SymptomCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.8.2.5 Binding: Extensible
Conceptname Conceptcode Codesystem name Codesystem OID Description
Anaphylaxis 39579001 SNOMED CT 2.16.840.1.113883.6.96 Anafylaxie
Angioedema 41291007 SNOMED CT 2.16.840.1.113883.6.96 Angio-oedeem
Upper respiratory tract hypersensitivity reaction 490008 SNOMED CT 2.16.840.1.113883.6.96 Overgevoeligheidsreactie van de bovenste luchtwegen
Dyspnea 267036007 SNOMED CT 2.16.840.1.113883.6.96 Kortademigheid
Bronchospasm 4386001 SNOMED CT 2.16.840.1.113883.6.96 Bronchospasme
Urticaria 126485001 SNOMED CT 2.16.840.1.113883.6.96 Urticaria
Contact dermatitis 40275004 SNOMED CT 2.16.840.1.113883.6.96 Contactdermatitis
Itching of skin 418363000 SNOMED CT 2.16.840.1.113883.6.96 Jeuk
Eruption 271807003 SNOMED CT 2.16.840.1.113883.6.96 Exantheem
Allergic conjunctivitis 473460002 SNOMED CT 2.16.840.1.113883.6.96 Allergische conjunctivitis
Lyell syndrome 768962006 SNOMED CT 2.16.840.1.113883.6.96 Syndroom van Lyle
Nausea and vomiting 16932000 SNOMED CT 2.16.840.1.113883.6.96 Misselijk en braken
Diarrhea 62315008 SNOMED CT 2.16.840.1.113883.6.96 Diarree
Drug-induced erythema multiforme 297942002 SNOMED CT 2.16.840.1.113883.6.96 Door medicatie veroorzaakte erythema multiforme
Fever 386661006 SNOMED CT 2.16.840.1.113883.6.96 Koorts
Overig OTH NullFlavor 2.16.840.1.113883.5.1008 Overig

This information model in other releases

Information model references

This information model refers to

--

This information model is used in

--

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Pre-release 2022-1
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms version: 20220131 [R] (January 2022 Release)
  • LOINC version 2.67

Conditions for use are located on the mainpage List2.png
This page is generated on 10/06/2022 12:39:07 with ZibExtraction v. 8.0.8196.20371

Back 16.png Back to HCIM list
Overgenomen van "https://zibs.nl/index.php?title=AllergyIntolerance-v4.0(2022EN)&oldid=23939"
