AlcoholUse-v3.1(2018EN)

Uit Zorginformatiebouwstenen
Ga naar: navigatie, zoeken



General information

Name: nl.zorg.AlcoholUse NL.png
Version: 3.1
HCIM Status:Final
Release: 2018
Release status: Prepublished
Release date: 01-10-2018


Back 16.png Back to HCIM list

Metadata

DCM::CoderList Kerngroep Registratie aan de Bron
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron
DCM::CreationDate 30-12-2015
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name PM
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.7.3
DCM::KeywordList social history, sociale anamnese, alcohol
DCM::LifecycleStatus Final
DCM::ModelerList Kerngroep Registratie aan de Bron
DCM::Name nl.zorg.AlcoholGebruik
DCM::PublicationDate 01-10-2018
DCM::PublicationStatus Prepublished
DCM::ReviewerList Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate 31-12-2017
DCM::Superseeds nl.zorg.AlcoholGebruik-v3.0
DCM::Version 3.1
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (15-02-2013) -

Publicatieversie 1.1 (01-07-2013) -

Publicatieversie 1.2 (01-04-2015)

ZIB-116 Sectie Instructions van bouwsteen OverdrachtIntoxicatieAlcohol aanpassen.
ZIB-117 Definitie van de sectie Concept van bouwsteen OverdrachtIntoxicatieAlcohol aanpassen.
ZIB-167 Bevindingen Concept inrichting Intoxicatie Roken/ Alcohol en Drugs in EZIS.NET
ZIB-235 In de klinische bouwsteen OverdrachtIntoxicatieAlcohol kwam de naam van de tagged value DCM::ValueSet onder het concept SoortGebruikerAlcohol niet overeen met de naam van de valueset.
ZIB-308 Prefix Overdracht weggehaald bij de generieke bouwstenen
ZIB-345 Naamgeving bouwsteen OverdrachtIntoxicatieAlcohol aangepast in AlcoholGebruik

Incl. algemene wijzigingsverzoeken:

ZIB-94 Aanpassen tekst van Disclaimer, Terms of Use & Copyrights
ZIB-154 Consequenties opsplitsing Medicatie bouwstenen voor overige bouwstenen.
ZIB-200 Naamgeving SNOMED CT in tagged values klinische bouwstenen gelijk getrokken.
ZIB-201 Naamgeving OID: in tagged value notes van klinische bouwstenen gelijk getrokken.
ZIB-309 EOI aangepast
ZIB-324 Codelijsten Name en Description beginnen met een Hoofdletter
ZIB-326 Tekstuele aanpassingen conform de kwaliteitsreview kerngroep 2015

Publicatieversie 1.2.1 (22-05-2015)

ZIB-378 Inconsistent gebruik van naamgeving AlcoholGebruik(s)StatusCodelijst.

Publicatieversie 3.0 (01-05-2016)

Publicatieversie 3.1 (04-09-2017)

ZIB-488 niet compleet

.

Concept

In the context of this information model, alcohol is the collective term for alcoholic beverages consumed as a leisure product. This information model describes the information asked of the patient about their alcohol use.

Purpose

During the social anamnesis, the patient is frequently asked about their alcohol consumption. Excessive (episodic) alcohol consumption may influence the current treatment and diagnostics. Alcohol-related problems are diagnosed as secondary diagnoses more and more often. Source: Guidelines - Multidisciplinary guidelines for Disorders in alcohol use (CBO, 2009)

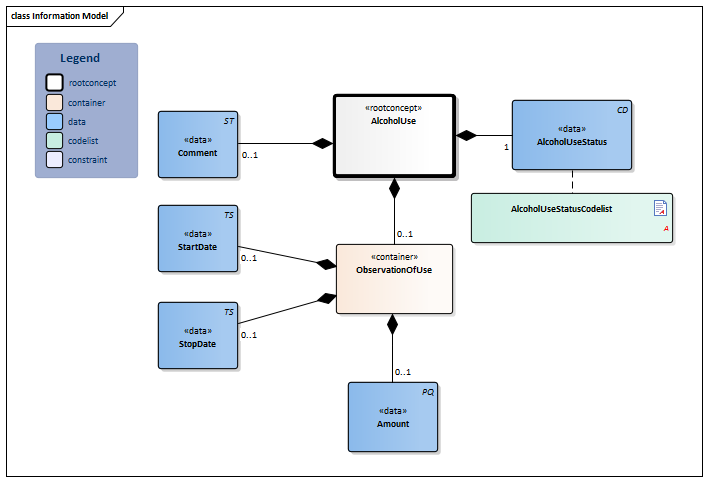

Information Model


#AlcoholUseStatusCodelist#11575#11572#11570#11577#11563#11580#11561AlcoholUse-v3.1Model(EN).png


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:7.3.1 Arrowdown.pngAlcoholUse Root concept of the AlcoholUse information model. This concept contains all data elements of the AlcoholUse information model.
ST.png NL-CM:7.3.7 Arrowright.pngComment 0..1 Relevant comments on the alcohol consumption.
48767-8 Annotation comment [Interpretation] Narrative
CD.png NL-CM:7.3.2 Arrowright.pngAlcoholUseStatus 1 The status of the patient’s alcohol use.
228273003 Finding relating to alcohol drinking behavior
List2.png AlcoholUseStatusCodelist
Folder.png NL-CM:7.3.3 Arrowdown.pngObservationOfUse 0..1 Container of the ObservationOfUse concept. This container contains all data elements of the observation of alcohol use.
TS.png NL-CM:7.3.4 Arrowright.pngStartDate 0..1 The date on which the patient started using alcohol.
TS.png NL-CM:7.3.5 Arrowright.pngStopDate 0..1 The date on which the patient stopped consuming alcohol.
PQ.png NL-CM:7.3.6 Arrowright.pngAmount 0..1 The extent of the patient’s alcohol use in units of alcohol per time period.
160573003 Alcohol intake

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

AlcoholGebruikStatus StartDatum StopDatum Hoeveelheid
Waarneming Gebruik
Drinkt alcohol 1995 3 eenheden per dag

Instructions

If the exchange of information on past alcohol consumption is desired in the event that the patient has by now stopped or significantly reduced their alcohol intake, then this can be done by applying the information model a second time with an entered stop date, so that it is clear that the amount of units per day is the past amount.

If desired, the sender can include the type of alcohol used in the ‘Comment’ field.

Valuesets

AlcoholUseStatusCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.7.3.2 Binding: Extensible
Conceptname Conceptcode Codesystem name Codesystem OID Description
Current drinker 219006 SNOMED CT 2.16.840.1.113883.6.96 Drinkt alcohol
Non - drinker 105542008 SNOMED CT 2.16.840.1.113883.6.96 Niet-drinker
Ex-drinker 82581004 SNOMED CT 2.16.840.1.113883.6.96 Dronk vroeger alcohol
Lifetime non-drinker 228274009 SNOMED CT 2.16.840.1.113883.6.96 Levenslang niet drinker
Other OTH NullFlavor 2.16.840.1.113883.5.1008 Anders

This information model in other releases

Information model references

This information model refers to

--

This inforation model is used in

--

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Prerelease 2018 #1
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms version: 20180731 [R] (July 2018 Release)
  • LOINC version 2.64

Conditions for use are located on the mainpage List2.png
This page is generated on 01/11/2018 17:33:42 with ZibExtraction v. 2.0.6879.31307


Back 16.png Back to HCIM list
