General information

Name: nl.zorg.AbilityToDrink NL.png
Version: 3.1
HCIM Status:Final
Release: 2018
Release status: Prepublished
Release date: 01-10-2018


Back 16.png Back to HCIM list

Metadata

DCM::CoderList Werkgroep RadB Verpleegkundige Gegevens
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList Werkgroep RadB Verpleegkundige Gegevens
DCM::CreationDate 13-3-2014
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name PM
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.4.8
DCM::KeywordList Drinken, ADL, beperking
DCM::LifecycleStatus Final
DCM::ModelerList Werkgroep RadB Verpleegkundige Gegevens
DCM::Name nl.zorg.VermogenTotDrinken
DCM::PublicationDate 01-10-2018
DCM::PublicationStatus Prepublished
DCM::ReviewerList Projectgroep RadB Verpleegkundige Gegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate 31-12-2017
DCM::Superseeds nl.zorg.VermogenTotDrinken-v3.0
DCM::Version 3.1
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (01-07-2015)

Publicatieversie 3.0 (01-05-2016)

Publicatieversie 3.1 (04-09-2017)

ZIB-530 Verwijzingen naar de bouwsteen Verpleegkundige Interventie verwijderd
ZIB-531 Vervangen 5-punts ICF schaal door 3-punts SNOMED CT schaal voor beperkingen en stoornissen

Concept

Being able to independently prepare and drink beverages is part of self-care. Limitations in this ability indicate a reduced ability to cope for oneself.
This activity and activities such as those including eating, getting dressed and bathing are also known as activities of daily living (ADL). These are the activities people go through in daily life. The extent to which a person is able to do all these activities by themselves is a measure for their total ability to do things independently.

Purpose

Information on limitations in a patient’s ability to make and drink their own beverages is important in determining the nature and intensity of the care the patient needs. In a transfer situation, it gives the receiving organization the ability to anticipate the intensity of the care to be given to the patient, enabling continuity in healthcare for the patient.
If policy has been implemented to improve a patient’s ability to do things independently, the entered extent of independence helps to determine the efficiency of the treatment.

Evidence Base

The definitions of the concepts were (partially) taken from the ICNP definitions.
In addition to this information model, there are other tools to record independence, such as the KATZ-ADL and the BarthelIndex. The KATZ-ADL is mainly used for vulnerable seniors and the BarthelIndex is mainly used for patients who have had a stroke.
This information model evaluates the ability to drink on a three-point scale. In the KATZ-ADL and in the BarthelIndex, this falls under the aspect of Self-feeding. In these two tools, the ability is scored on a scale with fewer points.

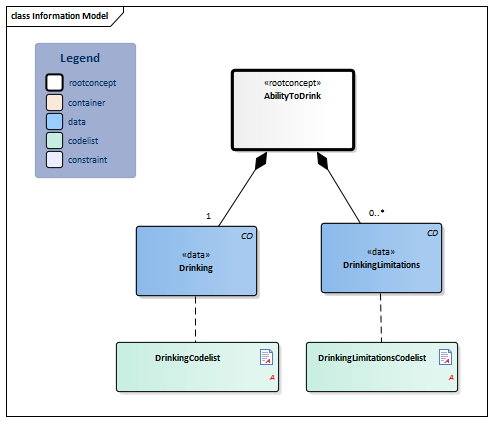

Information Model


#DrinkingLimitationsCodelist#DrinkingCodelist#8429#8428#8424AbilityToDrink-v3.1Model(EN).png


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:4.8.1 Arrowdown.pngAbilityToDrink Root concept of the AbilityToDrink information model. This concept contains all data elements of the AbilityToDrink information model.
CO.png NL-CM:4.8.3 Arrowright.pngDrinking 1 Taking fluids during meals and during the day or when thirsty.
288852001 Ability to drink
List2.png DrinkingCodelist
CD.png NL-CM:4.8.4 Arrowright.pngDrinkingLimitations 0..* DrinkingConstraints specifies the patient’s constraints in drinking.
288851008 Drinking abilities
List2.png DrinkingLimitationsCodelist

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

VermogenTotDrinken
Drinken Hulp nodig
Drinkbeperkingen Vastpakken
Naar mond brengen

References

1. International Classification of Functioning Disability and Health (ICF) [Online] Beschikbaar op:http:/www.rivm.nl/who-fic/icf.htm [Geraadpleegd: 13 februari 2015]

Valuesets

DrinkingCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.4.8.1 Binding: Extensible
Conceptname Conceptcode Codesystem name Codesystem OID Description
Able to drink without assistance 19841000146104 SNOMED CT 2.16.840.1.113883.6.96 Onafhankelijk
Needs help with drinking 16681000146102 SNOMED CT 2.16.840.1.113883.6.96 Hulp nodig
Unable to drink 288854000 SNOMED CT 2.16.840.1.113883.6.96 Volledig afhankelijk

DrinkingLimitationsCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.4.8.2 Binding: Extensible
Conceptname Conceptcode Codesystem name Codesystem OID Description
Difficulty preparing drink 286506008 SNOMED CT 2.16.840.1.113883.6.96 Bereiden (openen/ uitschenken)
Difficulty holding drinks 307071002 SNOMED CT 2.16.840.1.113883.6.96 Vastpakken
Difficulty taking drink to mouth 288876009 SNOMED CT 2.16.840.1.113883.6.96 Naar mond brengen

This information model in other releases

Information model references

This information model refers to

--

This inforation model is used in

--

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Prerelease 2018 #1
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms version: 20180731 [R] (July 2018 Release)
  • LOINC version 2.64

Conditions for use are located on the mainpage List2.png
This page is generated on 01/11/2018 22:24:16 with ZibExtraction v. 2.0.6879.31307
