Attention!! This is not the most recent version of this information model. You can find the most recent version ''here''.

General information

Name: nl.zorg.VisualAcuity NL.png
Version: 2.1
HCIM Status:Final
Release: 2022
Release status: Prepublished
Release date: 10-06-2022


Back 16.png Back to HCIM list

Metadata

DCM::CoderList *
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList *
DCM::CreationDate 15-06-2020
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name *
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.12.19
DCM::KeywordList
DCM::LifecycleStatus Final
DCM::ModelerList *
DCM::Name nl.zorg.Visus
DCM::PublicationDate 10-06-2022
DCM::PublicationStatus Prepublished
DCM::ReviewerList
DCM::RevisionDate 26-05-2022
DCM::Supersedes nl.zorg.Visus-v2.0
DCM::Version 2.1
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (01-09-2020)

Publicatieversie 2.0 (01-12-2021)

ZIB-1412 zib Visus - code 'Anders, specificeer'
ZIB-1441 zib Visus definitiecode AfstandTotKaart
ZIB-1442 zib Visus AnatomischeLocatie en Lateraliteit
ZIB-1445 zib Visus zelfde DefinitieCode voor verschillende concepten
ZIB-1567 Element naam aanpassen

Publicatieversie 2.1 (10-06-2022)

ZIB-1595 Codesysteem VisusMeetkaart heeft verkeerd OID.

Concept

Visual acuity is a measurement of sharpness of vision. It is a measure of the smallest details that someone can still distinguish.

Purpose

The aim is to determine the patient's visual functioning based ontheir visual acuity.

Evidence Base


Patient Population

Adults and children from the age that they can interpret a picture chart.

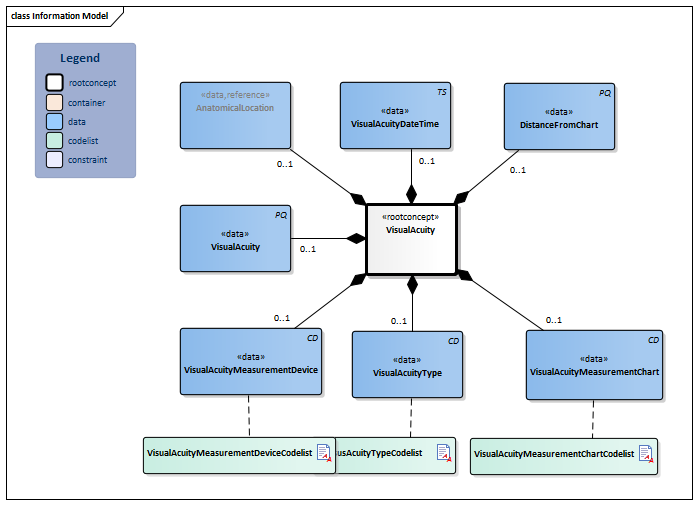

Information Model


#14959#14957#VisualAcuityMeasurementDeviceCodelist#14961#VisualAcuityMeasurementChartCodelist#14951AnatomicalLocation-v1.0.2(2022EN)#14958#14962#14960#VisusAcuityTypeCodelistVisualAcuity-v2.1Model(2022EN).png


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:12.19.1 Arrowdown.pngVisualAcuity Root concept of the VisualAcuity information model.This root concept contains all data elements of the VisualAcuity information model.
260246004 Visual acuity finding
CD.png NL-CM:12.19.6 Arrowright.pngVisualAcuityMeasurementDevice 0..1 The device used measuring the visual acuity.
400912000 Visual acuity test equipment
List2.png VisualAcuityMeasurementDeviceCodelist
CD.png NL-CM:12.19.2 Arrowright.pngVisualAcuityType 0..1 Type of visual acuity measurement.
16830007 Visual acuity testing
List2.png VisusAcuityTypeCodelist
CD.png NL-CM:12.19.7 Arrowright.pngVisualAcuityMeasurementChart 0..1 The type of chart used for the visual acuity measurement.
421763006 Visual acuity chart
List2.png VisualAcuityMeasurementChartCodelist
PQ.png NL-CM:12.19.8 Arrowright.pngDistanceFromChart 0..1 Distance to the chart in meters.
152731000146106 Distance to visual acuity chart
PQ.png NL-CM:12.19.11 Arrowright.pngVisualAcuity 0..1 The measured decimal visual acuity.
363983007 Visual acuity
TS.png NL-CM:12.19.4 Arrowright.pngVisualAcuityDateTime 0..1 The date and time when the visual acuity was measured.
439771001 Date of event
Verwijzing.png NL-CM:12.19.5 Arrowright.pngAnatomicalLocation 0..1 Indication and the laterality of the eye of which the visual acuity measurement relates to.
Block.png AnatomicalLocation

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

Visus
DatumTijd MetingType Decimale Visus Meting
Kaart
Afstand tot kaart Lateraliteit Meethulpmiddel
08-02-2020 Best gecorrigeerde visus 0.8 Snellen Letterkaart 5 meter Links
08-02-2020 Gecorrigeerde visus 1.0 logaritmische E-hakenkaart 3 meter Rechts Met stenopeische opening

Traceability to other Standards

This health and care information model is based on the information model template Measurement- v1.0.

Valuesets

VisualAcuityMeasurementChartCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.12.19.3 Binding: Extensible
Conceptname Conceptcode Codesystem name Codesystem OID Description
Logarithmic E chart 1 VisusMeetkaart 2.16.840.1.113883.2.4.3.11.60.40.4.27.1 Logaritmische E-hakenkaart
Snellen chart 2 VisusMeetkaart 2.16.840.1.113883.2.4.3.11.60.40.4.27.1 Snellen Letterkaart
LEA Hayvarinen chart 3 VisusMeetkaart 2.16.840.1.113883.2.4.3.11.60.40.4.27.1 LEA symbolen kaart
Other OTH NullFlavor 2.16.840.1.113883.5.1008 Anders

VisualAcuityMeasurementDeviceCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.12.19.4 Binding: Extensible
Conceptname Conceptcode Codesystem name Codesystem OID Description
Pinhole visual acuity 419475002 SNOMED CT 2.16.840.1.113883.6.96 Met stenopeïsche opening (DEPRECATED)
Pinhole 257492003 SNOMED CT 2.16.840.1.113883.6.96 Met stenopeïsche opening
Other OTH NullFlavor 2.16.840.1.113883.5.1008 Anders

VisusAcuityTypeCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.12.19.2 Binding: Extensible
Conceptname Conceptcode Codesystem name Codesystem OID Description
Corrected visual acuity 397536007 SNOMED CT 2.16.840.1.113883.6.96 Gecorrigeerde visus (met eigen bril)
Uncorrected visual acuity 420050001 SNOMED CT 2.16.840.1.113883.6.96 Ongecorrigeerde visus
Best corrected visual acuity 419775003 SNOMED CT 2.16.840.1.113883.6.96 Best gecorrigeerde visus(met optimale bril)
Stereoscopic acuity 359750002 SNOMED CT 2.16.840.1.113883.6.96 Stereoscopische visus
Other OTH NullFlavor 2.16.840.1.113883.5.1008 Anders

This information model in other releases

Information model references

This information model refers to

This information model is used in

--

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Pre-release 2022-1
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms version: 20220131 [R] (January 2022 Release)
  • LOINC version 2.67

Conditions for use are located on the mainpage List2.png
