General information

Name: nl.zorg.FluidBalance NL.png
Version: 1.0
HCIM Status:Final
Release: 2018
Release status: Prepublished
Release date: 01-10-2018


Back 16.png Back to HCIM list

Metadata

DCM::CoderList Werkgroep RadB Verpleegkundige Gegevens
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList Werkgroep RadB Verpleegkundige Gegevens
DCM::CreationDate 11-10-2016
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.12.15
DCM::KeywordList Vochtbalans
DCM::LifecycleStatus Final
DCM::ModelerList Werkgroep RadB Verpleegkundige Gegevens
DCM::Name nl.zorg.Vochtbalans
DCM::PublicationDate 01-10-2018
DCM::PublicationStatus Prepublished
DCM::ReviewerList Projectgroep RadB Verpleegkundige Gegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate 31-12-2017
DCM::Superseeds
DCM::Version 1.0
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (04-09-2017).

Concept

The total water intake and water excretion within a certain time period: a disbalance can lead to for example dehydration or overfilling.

Purpose

Information about the water balance provides insight in the care plan for drinking and possibly administering extra fluids, when the balance is disrupted such as dehydration or overfilling.

Evidence Base

The definitions of the concepts were (partly) based on the guideline Dehydration by the VvOV.

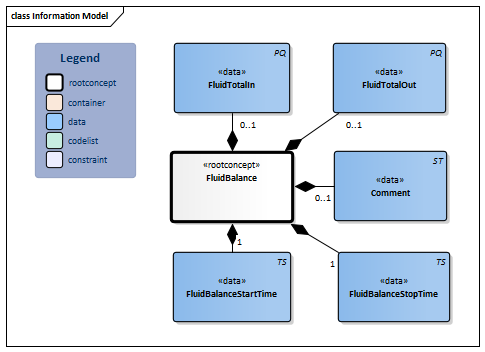

Information Model




Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:12.15.1 Arrowdown.pngFluidBalance Root concept of the FluidBalance information model. This root concept contains all data elements of the FluidBalance information model.
ST.png NL-CM:12.15.6 Arrowright.pngComment 0..1 Comment on the fluid balance.
48767-8 Annotation comment [Interpretation] Narrative
PQ.png NL-CM:12.15.4 Arrowright.pngFluidTotalIn 0..1 The total of fluid intake (e.g. by mouth, drip or tube feeding) in mL.
251852001 Total fluid input
PQ.png NL-CM:12.15.5 Arrowright.pngFluidTotalOut 0..1 The total of fluid excretion (e.g. urine production, drain, watery defecation) in mL.
251841007 Total fluid output
TS.png NL-CM:12.15.2 Arrowright.pngFluidBalanceStartTime 1 The time at which the measurement of the fluid balance was started.
TS.png NL-CM:12.15.3 Arrowright.pngFluidBalanceStopTime 1 The time at which the measurement of the fluid balance was stopped.

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

Vochtbalans
VochtTotaalIn 1400 ml
VochtTotaalUit 1000 ml
VochtbalansStarttijd 19-12-2016 0:00
VochtbalansStoptijd 20-12-2016 0:00
Toelichting -

This information model in other releases

Information model references

This information model refers to

--

This inforation model is used in

--

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Prerelease 2018 #1
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms version: 20180731 [R] (July 2018 Release)
  • LOINC version 2.64

Conditions for use are located on the mainpage List2.png
This page is generated on 01/11/2018 22:25:16 with ZibExtraction v. 2.0.6879.31307
