BasicElements-v1.0(2018EN)

Uit Zorginformatiebouwstenen
Ga naar: navigatie, zoeken



General information

Name: nl.zorg.part.BasicElements NL.png
Version: 1.0
HCIM Status:Final
Release: 2018
Release status: Prepublished
Release date: 01-10-2018


Back 16.png Back to HCIM list

Metadata

DCM::CoderList
DCM::ContactInformation.Address
DCM::ContactInformation.Name
DCM::ContactInformation.Telecom
DCM::ContentAuthorList
DCM::CreationDate 20-6-2017
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.0.0
DCM::KeywordList
DCM::LifecycleStatus Final
DCM::ModelerList
DCM::Name nl.zorg.part.BasisElementen
DCM::PublicationDate 01-10-2018
DCM::PublicationStatus Prepublished
DCM::ReviewerList
DCM::RevisionDate 31-12-2017
DCM::Superseeds
DCM::Version 1.0
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (04-09-2017).

Concept

All HCIM's implicitly contain a number of basic elements. These are usually not included in the information models of the individual building blocks, but are supposed to be present.
These are concepts that are of a more technical nature, often have little or no clinical relevance, but are necessary for the sake of clarity and readability of the information. In those cases where these elements are of clinical significance, they will usually be explicit in the information models. An example of this is an AGB number as an identification number for a health professional.

Purpose

The basic elements of a HCIM make the information that is contained by an instance of an HCIM identifiable and traceable. These are elements that are important for e.g. auditing purposes.

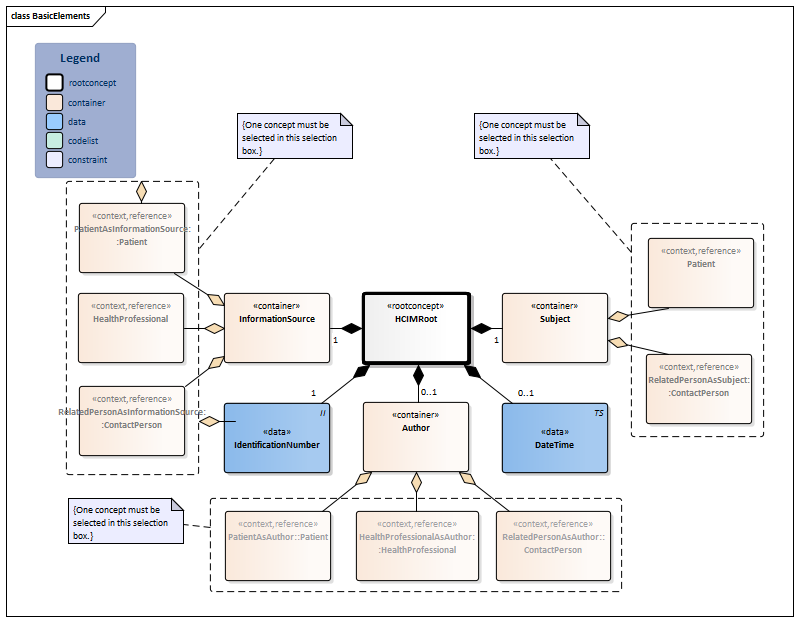

Information Model


#12208#12192#12193#12194#12195Patient-v3.1.1(2018EN)HealthProfessional-v3.2(2018EN)ContactPerson-v3.2(2018EN)Patient-v3.1.1(2018EN)ContactPerson-v3.2(2018EN)#12207HealthProfessional-v3.2(2018EN)ContactPerson-v3.2(2018EN)Patient-v3.1.1(2018EN)BasicElements-v1.0Model(EN).png


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:0.0.1 Arrowdown.pngHCIMRoot Rootconcept of the information model in question
II.png NL-CM:0.0.6 Arrowright.pngIdentificationNumber 1 Globally unique number that identifies the instantiation of the information model. The number is composed of an identification of the issuer organization and a unique number assigned by this organization
396278008 Identification number
AA2.png AssigningAuthority
Folder.png NL-CM:0.0.2 Arrowdown.pngInformationSource 1 The person who provided the information and ensures the correctness of it.

This is not always a healthprofessional, but it may also be the patient or another person, such as a parent, caretaker or guardian. The source of information does not have to be the author of the information, who in that case is only instrumental in capturing the information.

385438008 Source of information
Verwijzing.png NL-CM:0.0.3 Arrowright.pngPatientAsInformationSource::Patient (0..1) The patient as source of the information
Block.png Patient
Verwijzing.png NL-CM:0.0.4 Arrowright.pngHealthProfessional (0..1) The health professional as source of the information
Block.png HealthProfessional
Verwijzing.png NL-CM:0.0.5 Arrowright.pngRelatedPersonAsInformationSource::ContactPerson (0..1) The related person (parent, caregiver, ...) as source of the information
Block.png ContactPerson
Folder.png NL-CM:0.0.7 Arrowdown.pngAuthor 0..1 The person who has recorded the information. Depending on the information system in which the data is recorded, this may be the patient, healthcare provider or other person.
Verwijzing.png NL-CM:0.0.8 Arrowright.pngPatientAsAuthor::Patient (0..1) The patient as author of the information
Block.png Patient
Verwijzing.png NL-CM:0.0.9 Arrowright.pngHealthProfessionalAsAuthor::HealthProfessional (0..1) The health professional as author of the information
Block.png HealthProfessional
Verwijzing.png NL-CM:0.0.10 Arrowright.pngRelatedPersonAsAuthor::ContactPerson (0..1) The related person (parent, caregiver, ...) as author of the information
Block.png ContactPerson
Folder.png NL-CM:0.0.11 Arrowdown.pngSubject 1 The person to whom the information relates. Often this will be the patient, but especially in the case of small children as patients it may be information about the parent or caregiver. Especially in the nurse transfers, for example, Competence and involvement of caregivers carries a role.
131195008 Subject of information
Verwijzing.png NL-CM:0.0.12 Arrowright.pngPatient (0..1) The patient as subject of the information
Block.png Patient
Verwijzing.png NL-CM:0.0.13 Arrowright.pngRelatedPersonAsSubject::ContactPerson (0..1) The related person (parent, caregiver, ...) as subject of the information
Block.png ContactPerson
TS.png NL-CM:0.0.14 Arrowright.pngDateTime 0..1 Date and if relevant the time the event to which the information relates took place .

This is the medically relevant date and time.

439771001 Date of event

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

Basis Elementen
Identificatienummer  01229993999444
Datum 16-05-2016
Onderwerp: Patiënt
Naamgegevens
PatiëntIdentificatienummer 111222333
Achternaam Putten
Voorvoegsels van
AchternaamPartner Giessen
VoorvoegselsPartner van der
Voornamen Johanna Petronella Maria
Geslacht Vrouw
Geboortedatum 28-04-1934
Adresgegevens*
Straat 1e Jacob van Campenstr
Huisnummer 15
Woonplaats Hoogmade
Gemeente Kaag en Braassem
Postcode 1012 NX
AdresSoort Woon-/verblijfadres
Land Nederland
Informatiebron: Contactpersoon
Rol Eerste contactpersoon
Relatie Dochter
Naam
Geslachtsnaam van Putten
Voornamen F.P.
Auteur: Zorgverlener
ZorgverlenerIdentificatieNummer 21870932
ZorgverlenerRol Hoofdbehandelaar
Specialisme Neuroloog
ZorgverlenerNaam
Initialen J.H.R.
Geslachtsnaam Peters
Adres
Straat Simon Smitweg
Huisnummer 1
Woonplaats Leiderdorp
Postcode 2353 GA
AdresSoort Werkadres
Land Nederland

Assigning authorities

The identifying numbers are issued by the following authorities

AssigningAuthority

Identifying number ID system OID
AssigningAuthority OID: AssigningAuthorityOID

This information model in other releases

Information model references

This information model refers to

This inforation model is used in

--

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Prerelease 2018 #1
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms version: 20180731 [R] (July 2018 Release)
  • LOINC version 2.64

Conditions for use are located on the mainpage List2.png
This page is generated on 01/11/2018 23:51:12 with ZibExtraction v. 2.0.6879.31307
