AddressInformation-v1.0(2018EN)

Uit Zorginformatiebouwstenen
Ga naar: navigatie, zoeken



General information

Name: nl.zorg.part.AddressInformation NL.png
Version: 1.0
HCIM Status:Final
Release: 2018
Release status: Prepublished
Release date: 01-10-2018


Back 16.png Back to HCIM list

Metadata

DCM::CoderList Kerngroep Registratie aan de Bron
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron
DCM::CreationDate 3-7-2017
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name PM
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.20.5
DCM::KeywordList
DCM::LifecycleStatus Final
DCM::ModelerList Kerngroep Registratie aan de Bron
DCM::Name nl.zorg.part.Adresgegevens
DCM::PublicationDate 01-10-2018
DCM::PublicationStatus Prepublished
DCM::ReviewerList Projectgroep Generieke Overdrachtsgegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate 31-12-2017
DCM::Superseeds
DCM::Version 1.0
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (04-09-2017) .

Concept

Address information includes data where a person resides (temporarily, permanently) or where a building is located.
This is a partial information model.

Purpose

Address information is used for visiting a person or organization and for addressing of mail.

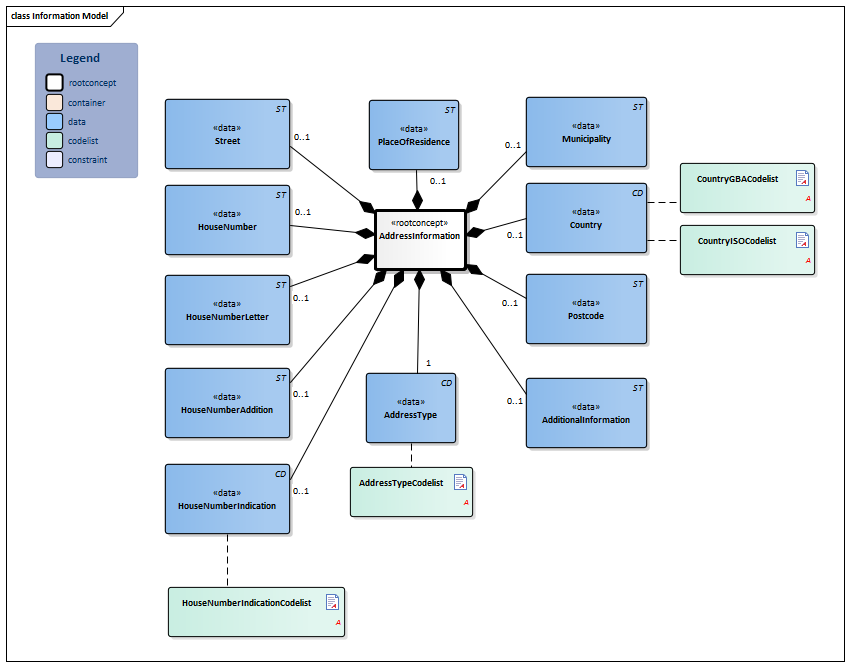

Information Model


#CountryISOCodelist#CountryGBACodelist#HouseNumberIndicationCodelist#12264#12272#12270#12263#AddressTypeCodelist#12269#12266#12261#12276#12275#12277#12262#12273AddressInformation-v1.0Model(EN).png


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:20.5.1 Arrowdown.pngAddressInformation Root concept of the AddressInformation partial information model. This root concept contains all data elements of the AddressInformation partial information model.
ST.png NL-CM:20.5.2 Arrowright.pngStreet 0..1 Street name of the address.
ST.png NL-CM:20.5.12 Arrowright.pngHouseNumber 0..1 House number of the address.
ST.png NL-CM:20.5.11 Arrowright.pngHouseNumberLetter 0..1 A letter following the house number as assigned by the municipal authorities.
ST.png NL-CM:20.5.10 Arrowright.pngHouseNumberAddition 0..1 The letters or signs needed to locate the mailbox, in addition to the house number and letter.
CD.png NL-CM:20.5.9 Arrowright.pngHouseNumberIndication 0..1 The indication used for addresses which do not consist of the usual street name and house number.
List2.png HouseNumberIndicationCodelist
ST.png NL-CM:20.5.6 Arrowright.pngPostcode 0..1 Postcode of the address.

In Dutch addresses, preferably use the postcode from the Postcode table (OID: 2.16.840.1.113883.2.4.4.15).

ST.png NL-CM:20.5.3 Arrowright.pngPlaceOfResidence 0..1 A geographically determined area which forms part of the municipal area.

For Dutch places of residence, preferably use the name from the GBA, table 33 (OID: 2.16.840.1.113883.2.4.6.14).

ST.png NL-CM:20.5.4 Arrowright.pngMunicipality 0..1 Municipality of residence.

For Dutch municipalities, preferably use the name from the GBA, table 33 (OID: 2.16.840.1.113883.2.4.6.14).

CD.png NL-CM:20.5.5 Arrowright.pngCountry 0..1 Country in which the address is located.
List2.png CountryGBACodelist
List2.png CountryISOCodelist
ST.png NL-CM:20.5.7 Arrowright.pngAdditionalInformation 0..1 Extra information such as the building name, building number, entrance, route number.
CD.png NL-CM:20.5.8 Arrowright.pngAddressType 1 The type of address in question, such as a home address or mailing address.
List2.png AddressTypeCodelist

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

Adresgegevens
Straat 1e Jacob van Campenstr
Huisnummer 15
Woonplaats Hoogmade
Gemeente Kaag en Braassem
Postcode 1012 NX
AdresSoort Woon-/verblijfadres
Land Nederland
Adresgegevens
Straat Stationsstraat
Huisnummer 11
Woonplaats Alphen aan den Rijn
Gemeente
Postcode 2406 AB
AdresSoort Officieel adres
Land

Valuesets

AddressTypeCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.20.5.3 Binding: Extensible
Conceptname Conceptcode Codesystem name Codesystem OID Description
Postal Address PST AddressUse 2.16.840.1.113883.5.1119 Postadres
Primary Home HP AddressUse 2.16.840.1.113883.5.1119 Officieel adres
Visit Address PHYS AddressUse 2.16.840.1.113883.5.1119 Woon-/verblijfadres
Tempory Address TMP AddressUse 2.16.840.1.113883.5.1119 Tijdelijk adres
Work Place WP AddressUse 2.16.840.1.113883.5.1119 Werkadres
Vacation Home HV AddressUse 2.16.840.1.113883.5.1119 Vakantie adres

CountryGBACodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.20.5.1 Binding: Extensible
Conceptname Codesystem name Codesystem OID
Alle waarden GBA Tabel 34 (Landentabel) 2.16.840.1.113883.2.4.4.16.34

CountryISOCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.20.5.2 Binding: Extensible
Conceptname Codesystem name Codesystem OID
Alle waarden ISO 3166-1 (alpha-2) 1.0.3166.1.2.2

HouseNumberIndicationCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.20.5.4 Binding: Extensible
Conceptname Conceptcode Codesystem name Codesystem OID Description
Tegenover to AanduidingBijHuisnummer 2.16.840.1.113883.2.4.3.11.60.101.5.3 Tegenover
Bij by AanduidingBijHuisnummer 2.16.840.1.113883.2.4.3.11.60.101.5.3 Bij

This information model in other releases

Information model references

This information model refers to

--

This inforation model is used in

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Prerelease 2018 #1
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms version: 20180731 [R] (July 2018 Release)
  • LOINC version 2.64

Conditions for use are located on the mainpage List2.png
This page is generated on 01/11/2018 17:25:19 with ZibExtraction v. 2.0.6879.31307


Back 16.png Back to HCIM list
