TimeInterval-v1.1.1(2022EN)

Uit Zorginformatiebouwstenen
Ga naar: navigatie, zoeken


Attention!! This is not the most recent version of this information model. You can find the most recent version ''here''.

General information

Name: nl.zorg.part.TimeInterval NL.png
Version: 1.1.1
HCIM Status:Final
Release: 2022
Release status: Prepublished
Release date: 10-06-2022


Back 16.png Back to HCIM list

Metadata

DCM::CoderList Kerngroep Registratie aan de Bron
DCM::ContactInformation.Address
DCM::ContactInformation.Name
DCM::ContactInformation.Telecom
DCM::ContentAuthorList Kerngroep Registratie aan de Bron
DCM::CreationDate 17-8-2017
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.20.3
DCM::KeywordList
DCM::LifecycleStatus Final
DCM::ModelerList Kerngroep Registratie aan de Bron
DCM::Name nl.zorg.part.TijdsInterval
DCM::PublicationDate 10-06-2022
DCM::PublicationStatus Prepublished
DCM::ReviewerList Kerngroep Registratie aan de Bron
DCM::RevisionDate 02-06-2022
DCM::Supersedes nl.zorg.part.TijdsInterval-v1.1
DCM::Version 1.1.1
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (04-09-2017)

Publicatieversie 1.1 (01-12-2021)

ZIB-1380 Aanpassing omschrijving codetabel
ZIB-1460 Zib TijdsInterval concept omschrijving niet correct

Publicatieversie 1.1.1 (10-06-2022)

ZIB-1756 Tekstuele wijzigingen zib TijdsInterval

Concept

A time interval indicates the time between two moments in time. An interval can be defined by a start time and end time, start time and duration or duration and end time. For intervals in the future, start and/or end date may not be known and only duration is known.

Purpose

The time interval is used to denote the period of time over which the corresponding event took place or should take place.

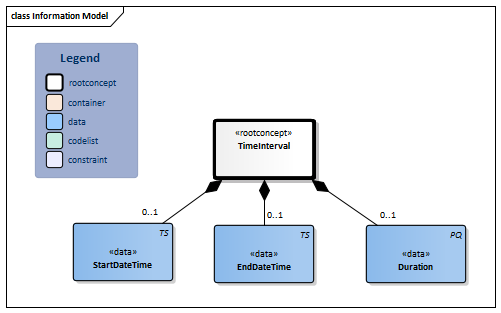

Information Model




Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:20.3.1 Arrowdown.pngTimeInterval Root concept of the TimeInterval partial information model. This root concept contains all data elements of the TimeInterval partial information model.
TS.png NL-CM:20.3.2 Arrowright.pngStartDateTime 0..1 The start date and time of the interval.
TS.png NL-CM:20.3.3 Arrowright.pngEndDateTime 0..1 The end date and time of the interval.
PQ.png NL-CM:20.3.4 Arrowright.pngDuration 0..1 The duration of the interval in appropriate units of time (e.g. days or hours, etc.).

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

TijdsInterval
Start DatumTijd 20-08-2017 12:00
Eind DatumTijd 30-08-2017 24:00
Duur
TijdsInterval
Start DatumTijd 20-08-2017
Eind DatumTijd
Duur 16 dagen

This information model in other releases

Information model references

This information model refers to

--

This information model is used in

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Pre-release 2022-1
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms version: 20220131 [R] (January 2022 Release)
  • LOINC version 2.67

Conditions for use are located on the mainpage List2.png
This page is generated on 10/06/2022 18:56:01 with ZibExtraction v. 8.0.8196.20371


Back 16.png Back to HCIM list
