General information

Name: nl.zorg.Refraction NL.png
Version: 1.2
HCIM Status:Final
Release: 2022
Release status: Prepublished
Release date: 10-06-2022


Back 16.png Back to HCIM list

Metadata

DCM::CoderList *
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList *
DCM::CreationDate 17-5-2020
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name *
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.12.20
DCM::KeywordList
DCM::LifecycleStatus Final
DCM::ModelerList *
DCM::Name nl.zorg.Refractie
DCM::PublicationDate 10-06-2022
DCM::PublicationStatus Prepublished
DCM::ReviewerList
DCM::RevisionDate 10-05-2022
DCM::Supersedes nl.zorg.Refractie-v1.1
DCM::Version 1.2
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (01-09-2020)

Publicatieversie 1.1 (01-12-2021)

ZIB-1420 zib Refractie definition code SfericalEquivalent
ZIB-1421 Zib Refractie vertaling
ZIB-1442 zib Visus AnatomischeLocatie en Lateraliteit
ZIB-1443 zib Refractie twee concepten met dezelfde definitiecode
ZIB-1449 zib Refractie diopter-eenheid (en UCUM-eenheden algemeen)
ZIB-1522 Aanpassing definitie sferische equivalent

Publicatieversie 1.2 (10-06-2022)

ZIB-1716 wijzigingen taalkundig

Concept

The refraction measurement is a measurement with which the refractive error of the eye is determined. During the refraction measurement, the necessary correction is established: the spherical power (in diopter), the cylindrical power (in diopter), the axis direction(in degrees) for any cylindrical correction, the prism (in diopter)and any additional power of the reading area (in diopter), the so-called reading addition

Purpose

The purpose of a refraction measurement is to determine the correction (through glasses or lenses) with which the patient can see optimally.

Patient Population

Adults and children from the age that they can interpret a picture chart.

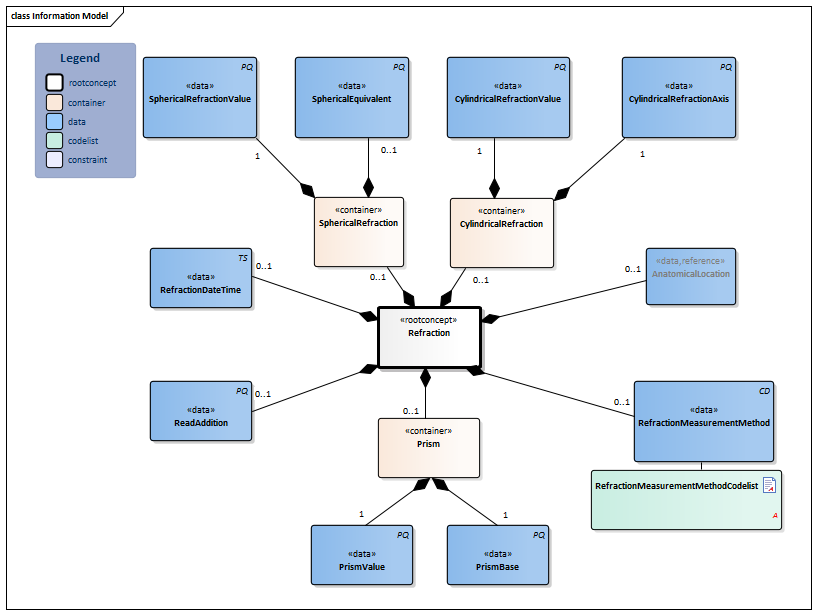

Information Model


#14351#RefractionMeasurementMethodCodelist#14354#14348#14339#14338#14349#14346#14340#14353#14355#14341#14352AnatomicalLocation-v1.0.2(2022EN)#14347Refraction-v1.2Model(2022EN).png


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:12.20.1 Arrowdown.pngRefraction Root concept of the Refraction information model.This root concept contains all data elements of the Refraction information model.
366060000 Refraction measurement - finding
CD.png NL-CM:12.20.4 Arrowright.pngRefractionMeasurementMethod 0..1 The method used to measure the refraction.
252886007 Refraction assessment
List2.png RefractionMeasurementMethodCodelist
TS.png NL-CM:12.20.3 Arrowright.pngRefractionDateTime 0..1 The date and time when the refraction measurement was carried out.
439771001 Date of event
Folder.png NL-CM:12.20.12 Arrowdown.pngCylindricalRefraction 0..1 Container of the CylindricalRefraction concept.This container contains all data elements of the CylindricalRefraction concept.
PQ.png NL-CM:12.20.11 Arrowright.pngCylindricalRefractionValue 1 The power of the cylinder needed to correct the cylindrical error (astigmatism), expressed in diopters. When a cylindrical refraction is registered, the axis of the cylinder must also be specified.
251797004 Power of cylinder
PQ.png NL-CM:12.20.13 Arrowright.pngCylindricalRefractionAxis 1 The axis direction of the cylindrical refraction value expressed in degrees.
251799001 Axis of cylinder
Folder.png NL-CM:12.20.5 Arrowdown.pngPrism 0..1 Container of the Prism concept.This container contains all data elements of the Prism container.
PQ.png NL-CM:12.20.6 Arrowright.pngPrismValue 1 The power of the prism, expressed in prism diopters.
251762001 Prism strength
PQ.png NL-CM:12.20.7 Arrowright.pngPrismBase 1 The base of the prism, expressed in degrees.
246223004 Prism base direction
Folder.png NL-CM:12.20.14 Arrowdown.pngSphericalRefraction 0..1 Container of the SphericalRefraction concept.This container contains all data elements of the SphericalRefraction concept.
PQ.png NL-CM:12.20.9 Arrowright.pngSphericalRefractionValue 1 The spherical spectacle strength power needed to correct nearsightedness (myopia) or farsightedness (hyperopia), expressed in diopters, ascending by 0.25D.
251795007 Power of sphere
PQ.png NL-CM:12.20.10 Arrowright.pngSphericalEquivalent 0..1 The spherical power added to half of the cylindrical power. Expressed in diopters, with two digits after the decimal point. Some equipment automatically calculates the spherical equivalent.
112881000146107 Spherical equivalent
PQ.png NL-CM:12.20.8 Arrowright.pngReadAddition 0..1 A supplement that is added to the refraction value to determine the strength of the reading glasses, expressed in diopters.
251796008 Spherical addition
Verwijzing.png NL-CM:12.20.2 Arrowright.pngAnatomicalLocation 0..1 Indication and the laterality of the eye of which the refraction measurement relates to.
272741003 Laterality
Block.png AnatomicalLocation

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

Refractie DatumTijd Refractie Methode Refractie Lateraliteit SferischeRefractie CilindrischeRefractie Sferische
Refractie
Lees additie Prisma
SferischeRefractieWaarde CilindrischeRefractie Waarde CilindrischeRefractieAs Sferisch Equivalent Prisma Waarde PrismaBasis
1-1-2020 Subjectieve refractie Rechts +1.00 -0.75 90 graden 0.625 1.00 2.00 90
1-1-2020 Subjectieve refractie Links +0.5 -1.00 45 graden 0 1.00 1.50 45
12-1-2020 Objectieve refractie Rechts
12-1-2020 Objectieve refractie Links

Valuesets

RefractionMeasurementMethodCodelist

Valueset OID: 2.16.840.1.113883.2.4.3.11.60.40.2.12.20.1 Binding: Extensible
Conceptname Conceptcode Codesystem name Codesystem OID Description
Subjective refraction 397277005 SNOMED CT 2.16.840.1.113883.6.96 Subjectieve refractie
Objective refraction 397276001 SNOMED CT 2.16.840.1.113883.6.96 Objectieve refractie

This information model in other releases

Information model references

This information model refers to

This information model is used in

--

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Pre-release 2022-1
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms version: 20220131 [R] (January 2022 Release)
  • LOINC version 2.67
