ChecklistPainBehavior-v1.0(2018EN)

Uit Zorginformatiebouwstenen
Ga naar: navigatie, zoeken


Attention!! This is not the most recent version of this information model. You can find the most recent version here.

General information

Name: nl.zorg.ChecklistPainBehavior NL.png
Version: 1.0
HCIM Status:Final
Release: 2018
Release status: Prepublished
Release date: 26-02-2019


Back 16.png Back to HCIM list

Metadata

DCM::CoderList Werkgroep RadB Verpleegkundige Gegevens
DCM::ContactInformation.Address *
DCM::ContactInformation.Name *
DCM::ContactInformation.Telecom *
DCM::ContentAuthorList Werkgroep RadB Verpleegkundige Gegevens
DCM::CreationDate 1-12-2016
DCM::DeprecatedDate
DCM::DescriptionLanguage nl
DCM::EndorsingAuthority.Address
DCM::EndorsingAuthority.Name zorg
DCM::EndorsingAuthority.Telecom
DCM::Id 2.16.840.1.113883.2.4.3.11.60.40.3.12.17
DCM::KeywordList Pijnscore, assessment, CPG
DCM::LifecycleStatus Final
DCM::ModelerList Werkgroep RadB Verpleegkundige Gegevens
DCM::Name nl.zorg.ChecklistPijngedrag
DCM::PublicationDate 26-02-2019
DCM::PublicationStatus Prepublished
DCM::ReviewerList Projectgroep RadB Verpleegkundige Gegevens & Kerngroep Registratie aan de Bron
DCM::RevisionDate 31-12-2017
DCM::Superseeds
DCM::Version 1.0
HCIM::PublicationLanguage EN

Revision History

Only available in Dutch

Publicatieversie 1.0 (04-09-2017).

Concept

The CPB (Checklist Pain Behaviour) is a pain assessment tool, that is used to assess pain in children with a limited expressive repertoire or with a profound cognitive impairment, by observing their behaviour
The CPB has ten observations that need te be addressed. The final score indicates whether the observed child suffers pain and 'how much'. The score is often combined with a VAS score that is completed by the nurses on basis of clinical experience.

Purpose

A pain assessment tool is an instrument for determining the intensity of pain and can be useful in order to determine the effectiveness of pain treatment interventions (pharmacological or non-pharmacological). For children with a limited expressive repertoire it is nevertheless difficult to differentiate between pain or distress/anxiety. This difference is relevant in determining the treatment. The score on a pain observation instrument remains a snapshot in time.

Evidence Base


For determining the degree of pain in children with difficulty expressing themselves there are divers pain observation instruments available

  • CPB
  • Comfort behaviour scale/ Comfortneo scale
  • Flacc

Patient Population

The pain assessment tool CPB is developed for children with limited expressive repertoire or a profound cognitive impairment.

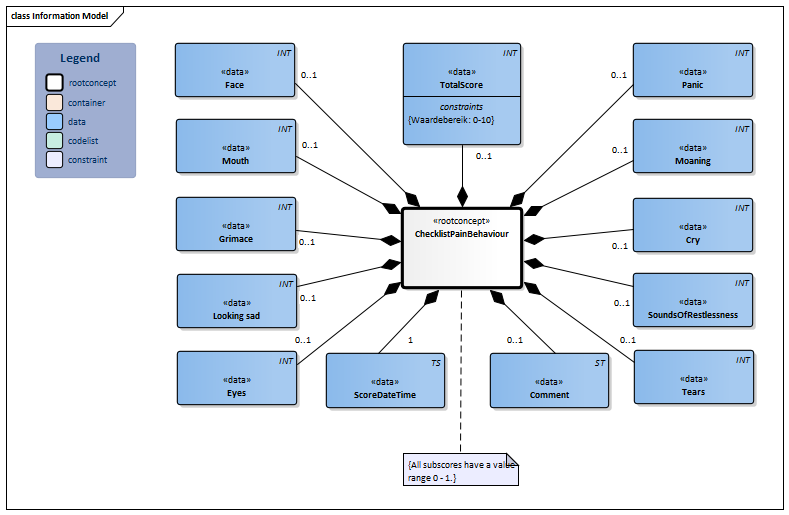

Information Model


#11763#11761#11764#11753#11752#11751#11754#11762#11757#11767#11768#11769#11770#11771ChecklistPainBehavior-v1.0Model(2018EN).png


Type Id Concept Card. Definition DefinitionCode Reference
Block.png NL-CM:12.17.1 Arrowdown.pngChecklistPainBehaviour Root concept of the ChecklistPainBehaviour information model. This root concept contains all data elements of the ChecklistPainBehaviour information model.
INT.png NL-CM:12.17.2 Arrowright.pngTotalScore 0..1 The total score is the sum of all the individual scores. The total score has a range from 0 - 10.
INT.png NL-CM:12.17.3 Arrowright.pngFace 0..1 Tense face; one or more muscles in the face are tensed.
INT.png NL-CM:12.17.4 Arrowright.pngMouth 0..1 Deeper naso-labial furrow; the line between the nose and mouth (naso-labial furrow) is deeper and aside.
INT.png NL-CM:12.17.5 Arrowright.pngGrimace 0..1 Grimace; the co-occurrence of: furrowed eyebrows; eyes that are composed or pinched; a deeper line between the nose and mouth; opened mouth.
INT.png NL-CM:12.17.6 Arrowright.pngLooking sad 0..1 Looking sad, almost in tears: eyebrows which have been pulled up laterally on the inner sides; wrinkles in the forehead, especially over the nose; eyes are squeezed; mouth drawn down possibly combined with a pout.
INT.png NL-CM:12.17.7 Arrowright.pngEyes 0..1 Eyes squeezed

Note: Do NOT score as present when the child is blinking or when the eyes are still closed without blinking.

INT.png NL-CM:12.17.8 Arrowright.pngPanic 0..1 Panics, panic attack: an extreme form of anxiety which manifests itself in random restless body movements or violent resistance.

This may be associated with an anxious look characterized by large widely opened eyes and eyebrows which are on the inner side raised up.

INT.png NL-CM:12.17.9 Arrowright.pngMoaning 0..1 Moaning, groaning; monotonous sound on plaintive tone
INT.png NL-CM:12.17.10 Arrowright.pngCry 0..1 Cries softly; crying is accompanied by a shocking breath.
INT.png NL-CM:12.17.11 Arrowright.pngSoundsOfRestlessness 0..1 Penetrating sounds of restlessness: sudden or longer lasting intense cries or verbal expressions of pain, such as "au" or "you hurt me'.
INT.png NL-CM:12.17.12 Arrowright.pngTears 0..1 Tears: child produces tears in at least one eye, so more than just watery eyes.
TS.png NL-CM:12.17.13 Arrowright.pngScoreDateTime 1 The date and time at which the CPB score was determined.
ST.png NL-CM:12.17.14 Arrowright.pngComment 0..1 A comment on the circumstances during the measurement.
48767-8 Annotation comment [Interpretation] Narrative

Columns Concept and DefinitionCode: hover over the values for more information
For explanation of the symbols, please see the legend page List2.png

Example Instances

Only available in Dutch

ChecklijstPijnGedrag
ScoreDatumTijd 19-12-2016, 10.45 uur
Gespannen gezicht 1
Lijn tussen neus en mondhoek dieper 0
Grimas 1
Verdrietige blik, bijna in tranen 0
Ogen dicht knijpen 1
Paniekerig, paniek reactie 1
Kreunen, jammeren 1
Huilen, snikken 0
Indringende onruistgeluiden 1
Tranen 0
Totaalscore 6
Toelichting pijn gemeten i.v.m. toegenomen onrust

References

1. Pijnobservatielijst CPG – Checklist pijngedrag [Online] Beschikbaar op:http://www.kennispleingehandicaptensector.nl/gehandicaptenzorg/Pijnobservatielijst_CPG_Checklist_pijngedrag [Geraadpleegd: 1 december 2016] 2. Richtlijn Pijnmeting en Behandeling van pijn bij kinderen, NVK, 2007 [Online] Beschikbaar op:https://www.nvk.nl/Kwaliteit/Richtlijnenoverzicht/Details/tabid/1558/articleType/ArticleView/articleId/760/Pijn-meting-en-behandeling-van.aspx [Geraadpleegd: 21 december 2016] 3. Onderbouwing richtlijn Signaleren van Pijn bij mensen met een verstandelijke beperking” V&VN, februari 2015 [Online] Beschikbaar ophttps://www.venvn.nl/Portals/1/Nieuws/2015%20documenten/Multidisciplinaire%20richtlijn%20Signaleren%20van%20pijn%20bij%20mensen%20met%20een%20verstandelijke%20beperking.pdf [Geraadpleegd: 21 december 2016]

This information model in other releases

Information model references

This information model refers to

--

This information model is used in

--

Technical specifications in HL7v3 CDA and HL7 FHIR

To exchange information based on health and care information models, additional, more technical specifications are required.
Not every environment can handle the same technical specifications. For this reason, there are several types of technical specifications:

  • HL7® version 3 CDA compatible specifications, available through the Nictiz ART-DECOR® environment Artdecor.jpg
  • HL7® FHIR® compatible specifications, available through the Nictiz environment on the Simplifier FHIR Fhir.png

Downloads

This information model is also available as pdf file PDF.png or as spreadsheet Xlsx.png

About this information

The information in this wikipage is based on Prerelease 2018-2
SNOMED CT and LOINC codes are based on:

  • SNOMED Clinical Terms version: 20180731 [R] (July 2018 Release)
  • LOINC version 2.64

Conditions for use are located on the mainpage List2.png
This page is generated on 12/03/2019 17:16:06 with ZibExtraction v. 3.0.7010.25883
